REALTRUCK BAK Revolver X4ts Installation Sheet

E
B
TOOLS REQUIRED
9/16" wrench or socket
1/2" wrench or socket
Torque wrench
TOOLS PROVIDED
1/8" Allen wrench
If you are installing a new truck bed cover, please start at STEP 7.
Open the rolled cover (E).
1
RealTruck BAK Industries • 1100 N. Glenstone Ave. Suite 140, Spring eld, MO 65802 • 818-365-9000 ©RealTruckGroup, Inc., 2024
L
C
H
I
J K
C G
REVOLVER X4ts
INSTALLATION SHEET
Any damaged or missing parts?
Parts will be shipped to you directly.
Call 818-365-9000 Mon - Fri 8:30 am - 6:00 pm EST
or email support@bakindustries.com
A
D
F
PARTS INCLUDED
(If installing ts rails to an
existing Revolver system)

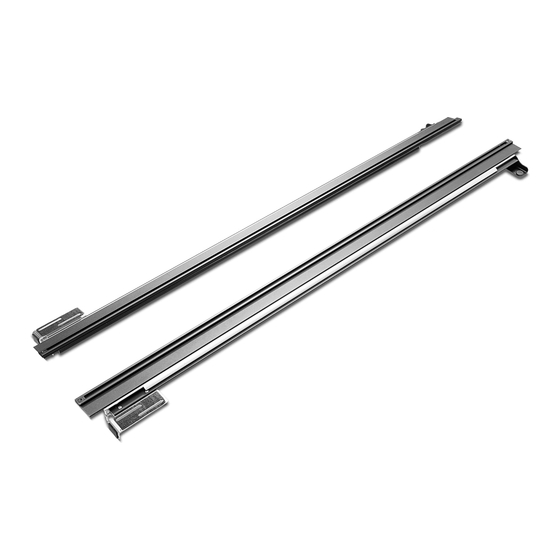

A 1x Passenger side cover rail
1x Driver side cover rail
B
4x End caps
C
H I
Remove the mounting hardware underneath the
2
slotted bracket on the current passenger side
cover rail and the current driver side cover rail. Keep
the hardware for later reinstallation.
G
PARTS INCLUDED
(If installing a complete new
Revolver X4ts cover system)
1x Bulkhead seal
D
1x Rolled cover
E
2x Strap clamp assemblies
F
6x Clamps (8x for 8' trucks)
G
4x Lock knobs
H
4x Large at washers
I
4x Rubber washers
J
4x Mounting bolts
K
4x D-shaped bumpers
L
K
J
Part# 318S0049 Rev. 01.31.2024
