Go Rhino 8048UC Installation Instructions

UNIVERSAL
Item Qty. Code
1 1 Set -
1 KTE-1006
2 4 Pc -
3 4 Pc -
4 4 Pc -
5 4 Pc -
6 4 Pc -
1. Before beginning the installation, please read all directions carefully and verify that all necessary hardware is accounted for. If any parts are
missing, stop the installation and contact your distributor immediately.
2. To maintain and care this product, keep it clean and do not use abrasive cleaners or polish waxes. We recommend to use only automotive
wax such as pure carnauba to avoid scratches and rust.
3. The approximate installation time is 25 min.
4. Insert the 3/8 x 2 1/8" dented bolts into the Bed Rail.
5. Place the Bed Rails on truck bed in the desired position. Use point head of dented bolts to mark position of holes, drill 7/16" in every bolts
position. ( CAUTION: ALWAYS USE EYE PROTECTION WHEN OPERATING A DRILL ).
6. Mount Bed Rail inserting bolts in holes and tighten using 3/8" hex nut.
7. You may need to periodically re-tighten the fasteners on your Bed Rail.
1
2
3

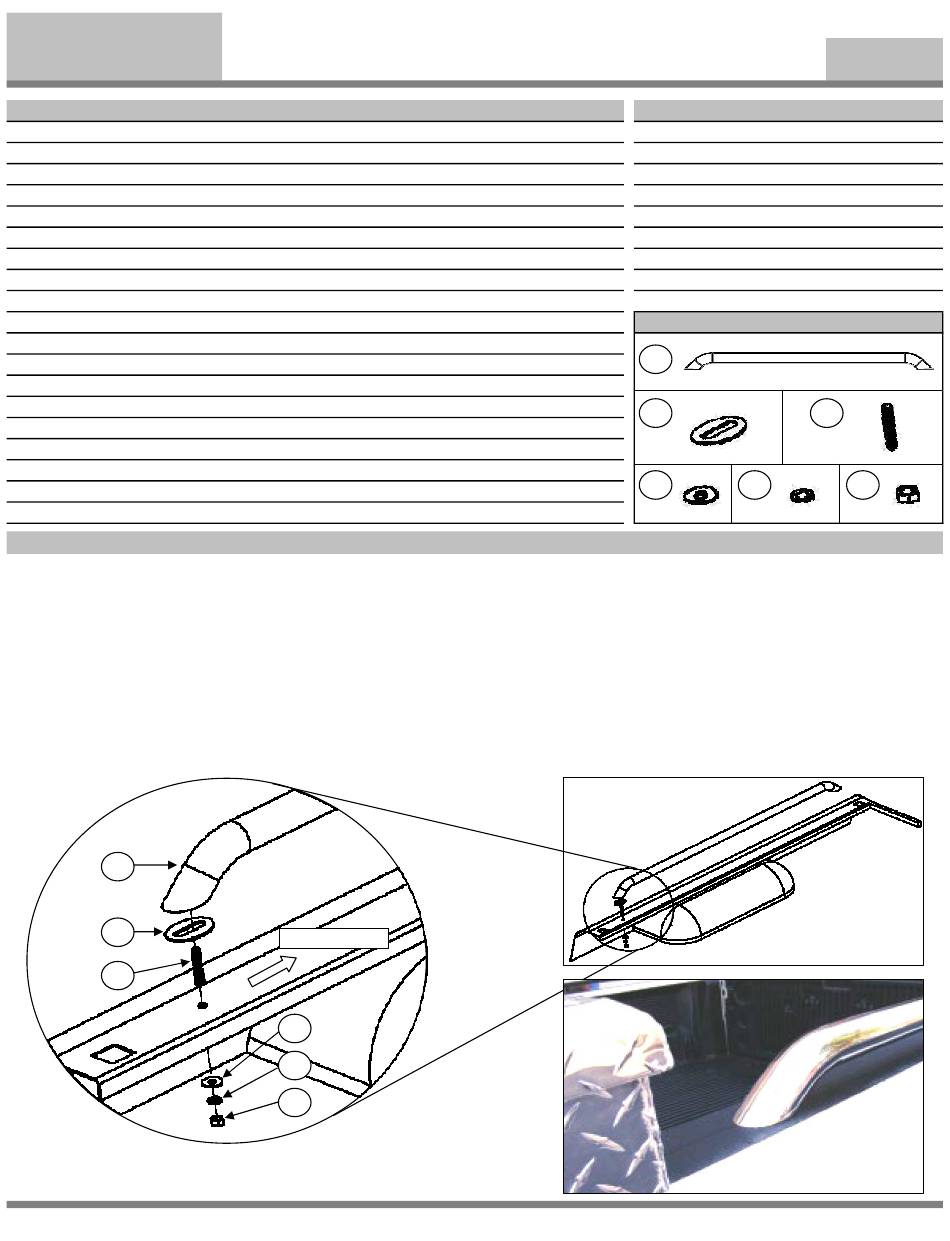

DETAIL ILLUSTRATION 1.
DESING QUALITY
Parts List
Description
Bed Rail Set
HARDWARE KIT INCLUDES:
Rubber Gaskets
3/8 x 2 1/8" Dented Bolt
3/8" Flat washers.
3/8" Lock washers.
3/8" Hex nut.
TRUCK BED.
4
5
6
FODI7.003.I
INSTALLATION INSTRUCTIONS
UNIVERSAL BED RAIL
Max. Torque
-
-
-
30 Lb.Ft
-
-
30 Lb.Ft
Instructions
REV. DATE: 15/11/2012
Required Tools (Not included)
Qty. Description
rench
1
1 7/16" Drill Bit
1 Drill
1 Extension to ratchet
1 Ratchet
Product Image
1
2 3
4 5
ILLUSTRATION 1.
BED RAIL INSTALLED.
Page: 1 / 1
UNIVERSAL
6
