Go Rhino 3160MB Assembly Instructions

PART NO. 3160MB, 3160MC & 7160MPS 07-08 CHEVY 1500 AVALANCHE, TAHOE & SUBURBAN 2/4WD
Do not attempt to install this product on any vehicle other than the one it is designed for and listed above!
QTY PARTS DESCRIPTION
2 ¼" X ¾" BUTTON HEAD BOLTS
6 5/16" X 3/4" BUTTON HEAD BOLTS
6 5/16" LOCK NUTS
6 3/8" X 1" BUTTON HEAD BOLTS
4 3/8" X 1 1/4" HEX BOLTS
6 3/8" LOCK WASHERS
2 3/8" HEX NUTS
4 3/8" FLAT WASHERS
ASSEMBLY
STEP 1. BEGIN THE GRILLE AND BRUSH GUARD ASSEMBLY BY LAYING THE COMPONENTS OUT ON A PROTECTIVE
SURFACE.
STEP 2. POSITION THE GRILLE GUARD SIDE PLATES WITH THE FRONT EDGE DOWN AND THE 2" TOP AND BOTTOM
STEP TUBE BETWEEN THE SIDE PLATES.
STEP 3. ATTACH THE TOP TUBE TO THE SIDE PLATES USING THE (2) 3/8" X 1 1/4" HEX BOLTS AND LOCK WASHERS.
DO NOT TIGHTEN.
STEP 4. ATTACH THE STEP TUBE TO THE SIDE PLATES USING THE (4) 3/8" X 1" BUTTON HEAD BOLTS AND LOCK
WASHERS. DO NOT TIGHTEN.
STEP 5. POSITION THE CENTER PLATE BETWEEN THE GRILLE GUARD SIDE PLATES, WITH THE SLOTTED
MOUNTING HOLES IN THE CENTER PLATE DOWN.
STEP 6. INSERT (2) 3/8" X 1" BUTTON HEAD BOLTS THROUGH THE HOLES IN THE SIDE PLATES AND SLOTTED HOLES
IN THE CENTER PLATE WITH THE THREADS EXTENDING INWARD AND INSTALL 3/8" FLAT WASHERS, LOCK WASHER
AND HEX NUTS. DO NOT TIGHTEN.
STEP 7. INSTALL LOCK AND FLAT WASHERS ON (2) 3/8" X 1 ¼" HEX BOLTS, AND INSERT THE BOLTS THROUGH THE
ROUND HOLES IN THE CENTER AND SIDE PLATES WITH THE THREADS EXTENDING OUTWARD.
STEP 8. TIGHTEN THE 2" TOP TUBE.
STEP 9. POSITION THE DRIVER SIDE BRUSH GUARD UP TO THE GRILLE GUARD ASSEMBLY. LOOSELY ATTACH THE
BOTTOM OF THE BRUSH GUARD TO THE GRILLE GUARD SIDE PLATE USING THE 3/8" X 1 ¼" HEX BOLT INSTALLED IN
STEP #7. ATTACH THE TOP OF THE BRUSH GUARD TO THE HOLE TOWARD THE FRONT OF THE SIDE PLATE USING
(1) 5/16" X 3/4" BUTTON HEAD BOLT, AND LOCK NUT. NOTE: THE REMAINING BOLT WILL BE INSTALLED WITH THE
UPPER BRACKET.
REPEAT THE ABOVE STEP TO INSTALL THE PASSENGERS SIDE BRUSH GUARD.
STEP 10. LOOSELY ATTACH THE DRIVER SIDE HEAD LIGHT PROTECTOR TO THE BRUSH GUARD USING (1) ¼" X ¾"
BUTTON HEAD BOLT, AND TO THE SIDE PLATE USING (2) 5/16" X 3/4" BUTTON HEAD BOLTS, AND LOCK NUTS.
REPEAT THIS STEP TO INSTALL THE PASSENGER SIDE HEAD LIGHT PROTECTOR.
3000 & 7000 SERIES STEPGUARD

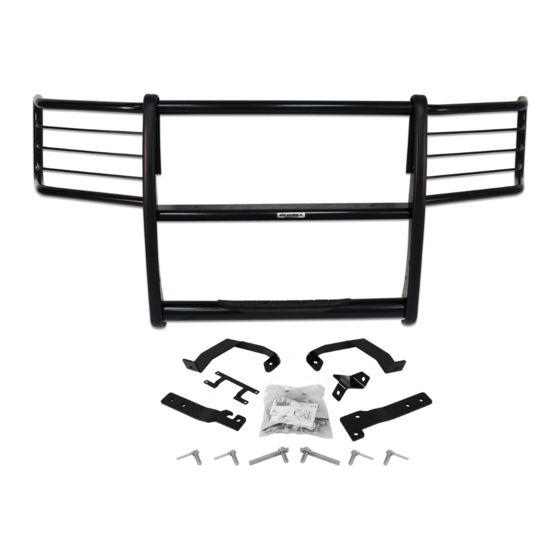

COMPLETE GRILLE & BRUSH GUARD
ASSEMBLY INSTRUCTIONS
PACKING LIST
QTY PARTS DESCRIPTION
2 3160 SIDE PLATES
1 3162P PASSENGER BRUSH GUARD
1 3162D DRIVER BRUSH GUARD
1 C9P PASSENGER HEAD LIGHT PROTECTOR
1 C9D DRIVER HEAD LIGHT PROTECTOR
1 ST3006 3" X 35 ¾" BOTTOM STEP TUBE
1 TT3534 2" X 35 ¾" TOP TUBE
1 CP3036 35 ¾" SPECIAL CENTER PLATE
1
