INSTALLATION INSTRUCTIONS
PRODUCT SAFETY & LEGAL DISCLAIMER
IMPORTANT READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING, FAILURE TO DO SO
•
MAY CAUSE PERSONAL INJURY OR DAMAGE TO PRODUCT AND/OR PROPERTY.
Review the product package and contents prior to beginning the installation. Take care when
•
opening the packaging and removing items. If a return is needed you will want to return the product in
its original packaging if possible.
This instruction guide is provided as a GENERAL installation guide, some vehicles vary dimensionally
•
and may require additional steps.
Test fit the product on the vehicle prior to any third party modifications and or finishing. The
•
manufacturer and/or distributors do not accept responsibility for third party charges, labor and or
third part replacement modifications. Some modifications may void the factory warranty.
•
Exercise due-diligence when installing this product. The manufacturer and distributors of this product
do not accept any responsibility for vehicle damage or personal injury resulting from the installation of
this product. Careless installation and operation can result in serious injury or equipment damage.
•
This product is for general off-road use. All liability for installation and use rests with the
owner/operator.
INSTALLER: Once installation is complete, please return this guide along with other documentation
•
included in this product back to the consumer for future reference. The manufacturer/distributors of
this product do not guarantee this particular version will be available at a later date.
REV.01
© 2016 Go Rhino Products. All rights reserved
www.gorhino.com
589 W. Apollo St., Brea, CA 92821
PART NO.
● 5344
PRODUCT DESCRIPTION:

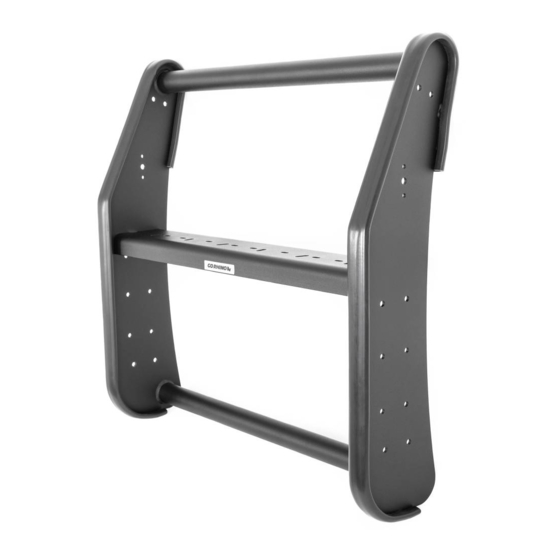

● 5000 SERIES ROAD DEFENDER PUSH
BUMPER
APPLICATION:
● FORD INTERCEPTOR UTILITY
P: 888 427 4466
1
Advertisement
Related Manuals for Go Rhino Road Defender Push Bumper 5000 Series
Summary of Contents for Go Rhino Road Defender Push Bumper 5000 Series
- Page 1 The manufacturer/distributors of this product do not guarantee this particular version will be available at a later date. © 2016 Go Rhino Products. All rights reserved www.gorhino.com 589 W. Apollo St., Brea, CA 92821 P: 888 427 4466 REV.01...
-
Page 2: Installation Instructions
Installation of some of these products may alter the factory sensor system performance. • Factory sensors may read shackles or hooks protruding from the fairlead and or tow hooks. • All sensor testing is completed by Go Rhino Products and or third party testing labs on modified • vehicles. •... - Page 3 3/8" Flat Washer Main Bracket (Driver) 3/8” Hex Nut Go Rhino recommends you, the installer, read this installation instruction manual from front to back before installing the product. You may also click here to view an installation video or visit http://www.gorhino.com/Installation-Videos.
- Page 4 Step-1 Remove all fasteners from the top, bottom and sides securing the front bumper cover to the vehicle, then remove the front bumper cover from to the vehicle and set aside. Fig 1 REV.01 © 2016 Go Rhino Products. All rights reserved...
- Page 5 Step-5 Unsnap the (6) clips (3) per side securing the impact beam, then remove the impact beam from the vehicle, (Fig 4). Impact Beam Fig 3 Fig 4 Clip OEM Bolts REV.01 © 2016 Go Rhino Products. All rights reserved...
- Page 6 18 5/8” from the end of the impact beam and tighten the nuts and bolts, (Fig 5). Step-8 Reinstall the impact beam using the OEM Bolts, and tighten the OEM bolts, (Fig 6). Fig 5 18 5/8” Driver Side Fig 6 REV.01 © 2016 Go Rhino Products. All rights reserved...
- Page 7 Step-10 On each side of the upper air deflector, measure and mark the section from the clip and from the edge 3”, then cut and remove the section, (Fig 8). Fig 7 Lower Air Deflector Fig 8 3” x 5” 3” x 5” Upper Air Deflector REV.01 © 2016 Go Rhino Products. All rights reserved...
- Page 8 INSTALLATION INSTRUCTIONS Step-11 Reinstall the lower and upper air deflectors, (Fig 9). Fig 9 Upper Air Deflector Lower Air Deflector Step-12 Reinstall the front bumper cover, (Fig 10). Fig 10 REV.01 © 2016 Go Rhino Products. All rights reserved...
- Page 9 Step-14 Attach the push bumper to each of the extension bracket using (2) 3/8” x 1 1/4” hex bolts, (4) 3/8” flat washers, (2) 3/8” lock washers and (2) 3/8” hex nuts, (Fig 11). Leave the nuts and bolts loose for final adjustment. Fig 11 REV.01 © 2016 Go Rhino Products. All rights reserved...
- Page 10 INSTALLATION INSTRUCTIONS Step-15 Align the push bumper with the vehicle and tighten all nuts and bolts. REV.01 © 2016 Go Rhino Products. All rights reserved...
-
Page 11: Limited Warranty
This warranty covers the cost of the product only and does not include the cost of removal, installation, third party modifications or shipping of the product. In no event shall Go Rhino be liable to buyer or any third party for any damage or harm caused by the product or use thereof, regardless of whether such damages were foreseeable and whether or not Go Rhino has been advised of the possibility of such damages, not withstanding the failure of any agreed or other remedy of its essential purpose.
