Do not attempt to install this product on any vehicle other than the one it is designed for and listed above!
QTY
PART DESCRIPTION
4
3/8" X 1" HEX BOLT
4
3/8" X 2" HEX BOLT
12
3/8" FLAT WASHER
8
3/8" LOCK WASHER
READ THE INSTRUCTIONS COMPLETELY BEFORE YOU BEGIN THE INSTALLATION

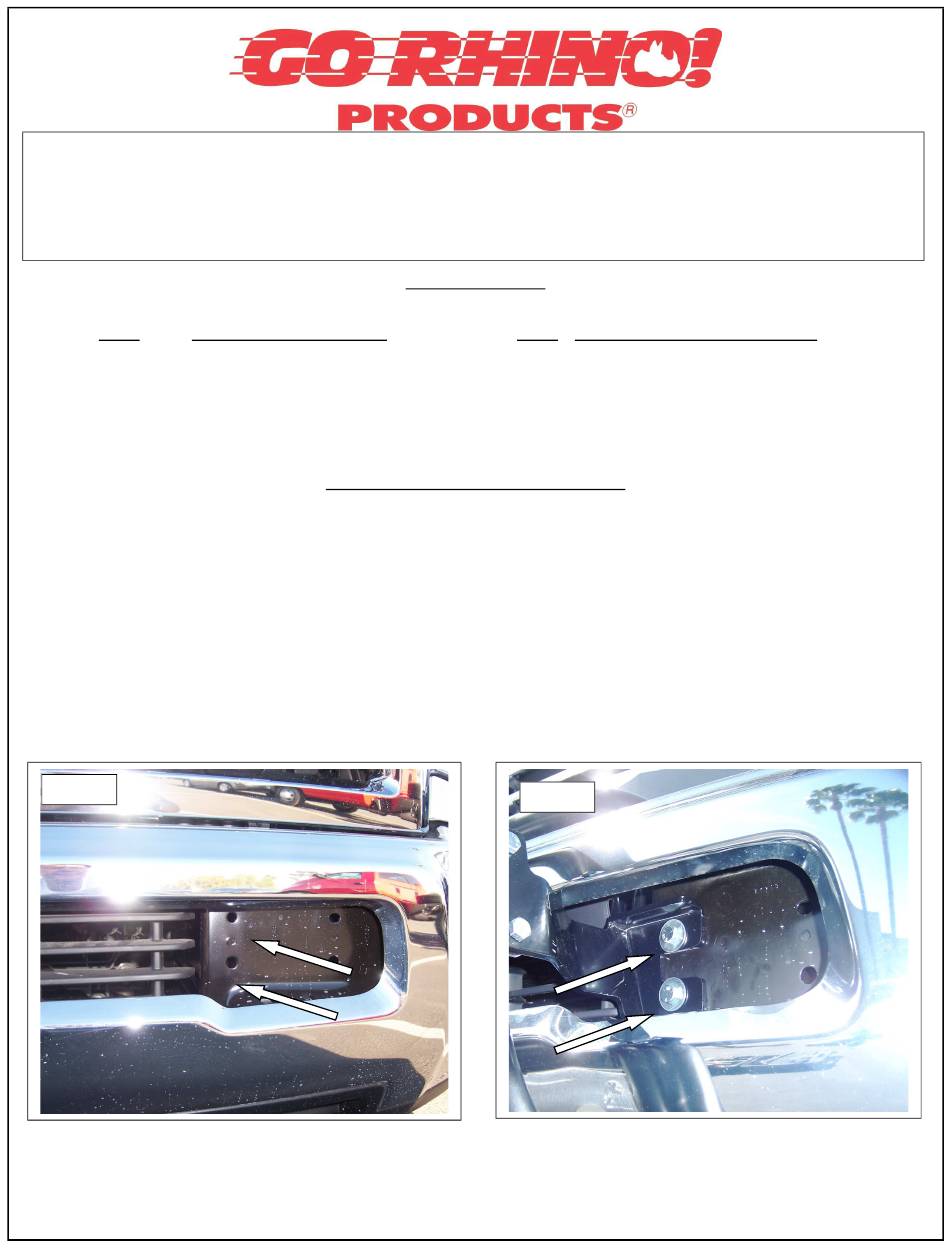

STEP-1 BEGINNING WITH THE DRIVER SIDE, LOCATE THE HOLES IN THE FRAME. PHOTO #1
STEP-2 POSITION THE DRIVER SIDE BRACKET AS SHOWN AND ATTACH THE BRACKET TO
THE FRAME USING (2) 3/8" X 2" HEX BOLTS, (4) FLAT WASHERS, LOCK WASHERS AND HEX
NUTS. DO NOT TIGHTEN. PHOTO #2
REPEAT THE STEPS TO INSTALL THE PASSENGER SIDE BRACKET.
#1
INSTALLATION INSTRUCTIONS
RHINO! CHARGER PART NUMBER 5565 (B-PS)
2010 DODGE RAM 2500HD, 3500HD P/U 2/4WD
PACKING LIST
INSTALLATION INSTRUCTIONS
QTY PAR PART DESCRIPTION
8
3/8" HEX NUT
1
DRIVER SIDE BRACKET
1
PASSENGER SIDE BRACKET
1
5565 RHINO CHARGER BAR
#2
1
FODI7.003.I
