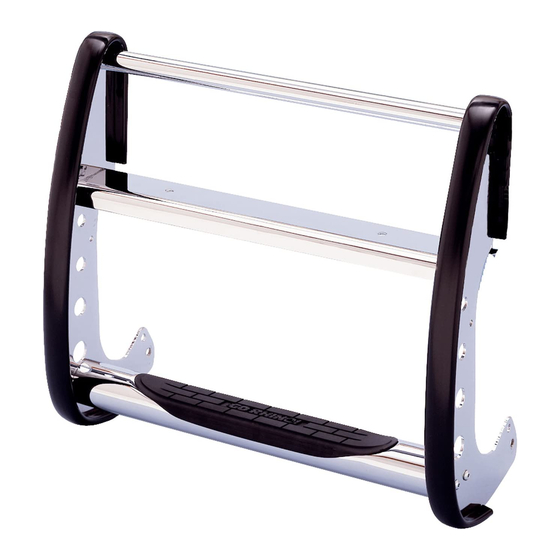

Go Rhino 3000 Series Assembly Instructions

QTY PART DESCRIPTION
6 3/8 x 1 1/4" HEX BOLT
4 3/8 x 1" HEX BOLT
4 3/8 x 1" BUTTON BOLT
6 3/8" FLAT WASHER
10 3/8" LOCK WASHER
10 3/8" HEX NUT
4 1/2 X 1 1/2" HEX BOLT
4 1/2" FLAT WASHER
4 1/2" LOCK WASHER
READ THE ASSEMBLY AND INSTALLATION INSTRUCTIONS COMPLETELY BEFORE YOU BEGIN.

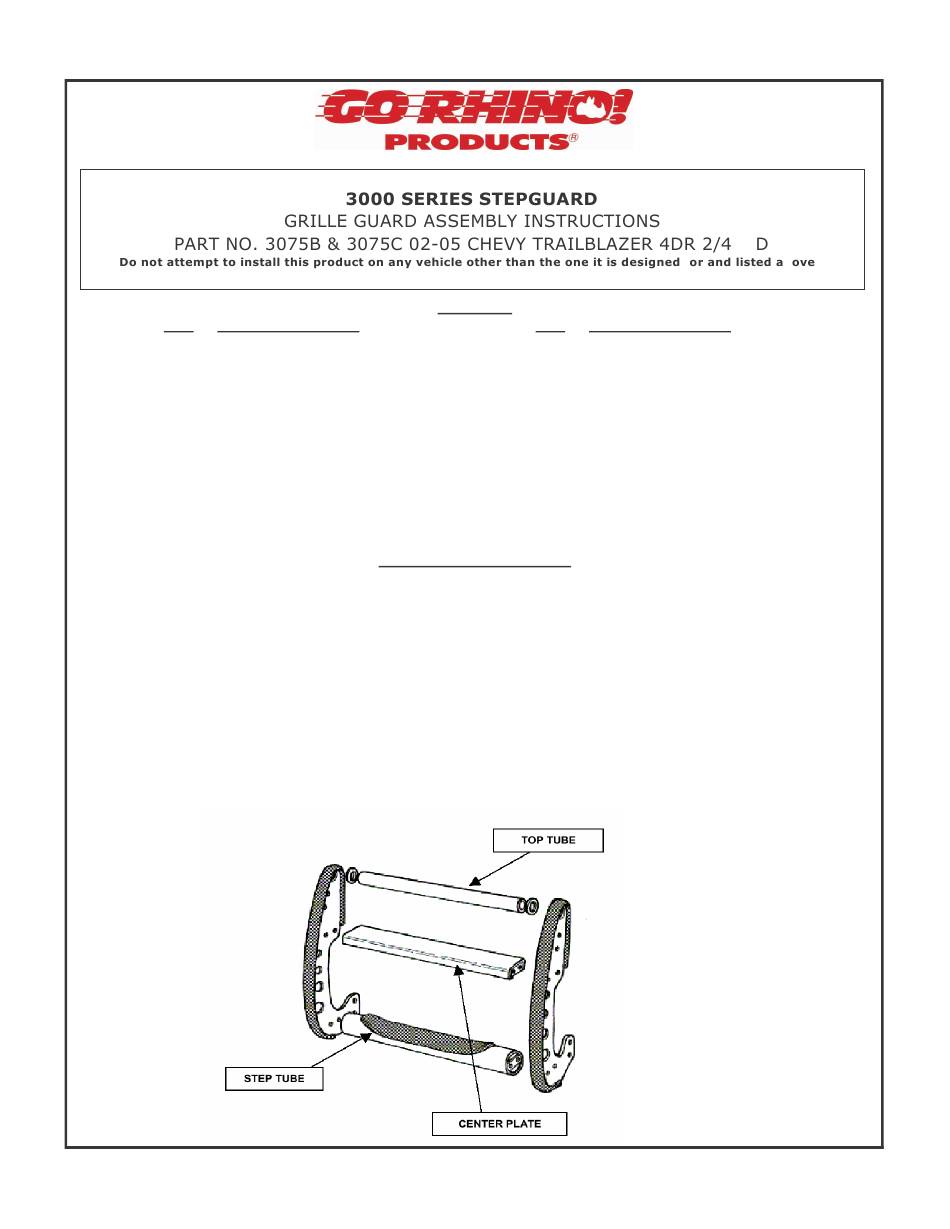

STEP 1. BEGIN THE GRILLE ASSEMBLY BY LAYING THE COMPONENTS OUT ON A PROTECTIVE SURFACE.
STEP 2. INSTALL THE TUBE CONNECTORS FROM THE P200 PLUG KIT INTO THE TOP TUBE.
STEP 3. POSITION THE STEP TUBE, CENTER PLATE AND TOP TUBE BETWEEN THE GRILLE GUARD SIDE
PLATES.
STEP 4. ATTACH THE STEP TUBE TO THE SIDE PLATES USING THE 3/8" x 1" BUTTON BOLTS, THE CENTER
PLATE USING THE 3/8" X 1" HEX HEAD BOLTS, FLAT AND LOCK WASHERS, AND NUTS, AND TOP TUBE
USING THE P200 PLUG KIT HARDWARE.
STEP 5. ALIGN THE GRILLE ASSEMBLY AND TIGHTEN ALL NUTS AND BOLTS.
PART LIST
QTY
2
1
1
4
2
2
2
2
1
ASSEMBLY INSTRUCTIONS
1 OF 2
PART DESCRIPTION
1055A UPPER MOUNTING BRACKET
1055D DRIVER SIDE LOWER BRKT
1055P PASSENGER SIDE LOWER BRKT
1/2" HEX NUT
5/16 X 3/4" HEX BOLT
5/16" FLAT WASHER
5/16" LOCK WASHER
5/16" HEX NUT
P200 PLUG KIT
REV B 10/09
! "
