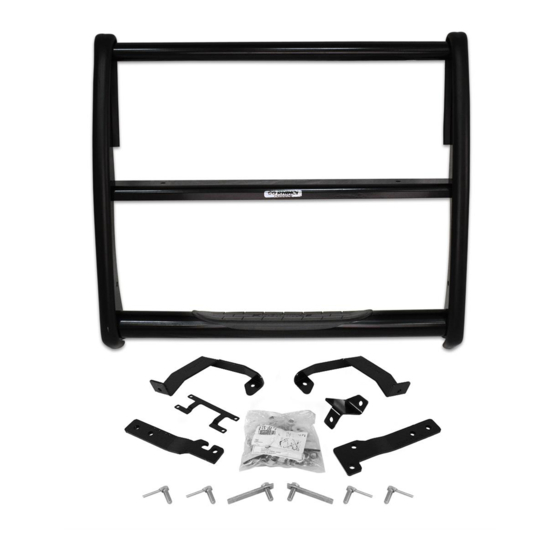

GO RHINO! PRODUCTS
03-06 FORD EXPEDITION 2/4WD PART NO. 3285 B-C
QTY
1
6
6
6
6
4
4
4
6
6
6
6
STEP 1. BEGIN THE ASSEMBLY BY LOOSELY
ATTACHING THE BOTTOM STEP TUBE TO THE GRILLE
GUARD SIDE PLATES USING THE 3/8" X 1" BUTTON
HEAD BOLTS.
STEP 2. INSTALL THE TUBE CONNECTORS FROM
THE P200 PLUG KIT INTO THE TOP TUBE.
STEP 3. POSITION THE CENTER PLATE BETWEEN THE
GRILLE GUARD SIDE PLATES. ATTACH USING THE 3/8"
STEP 1. REMOVE THE LICENSE PLATE AND MOUNTING BRACKET FROM THE FRONT BUMPER.

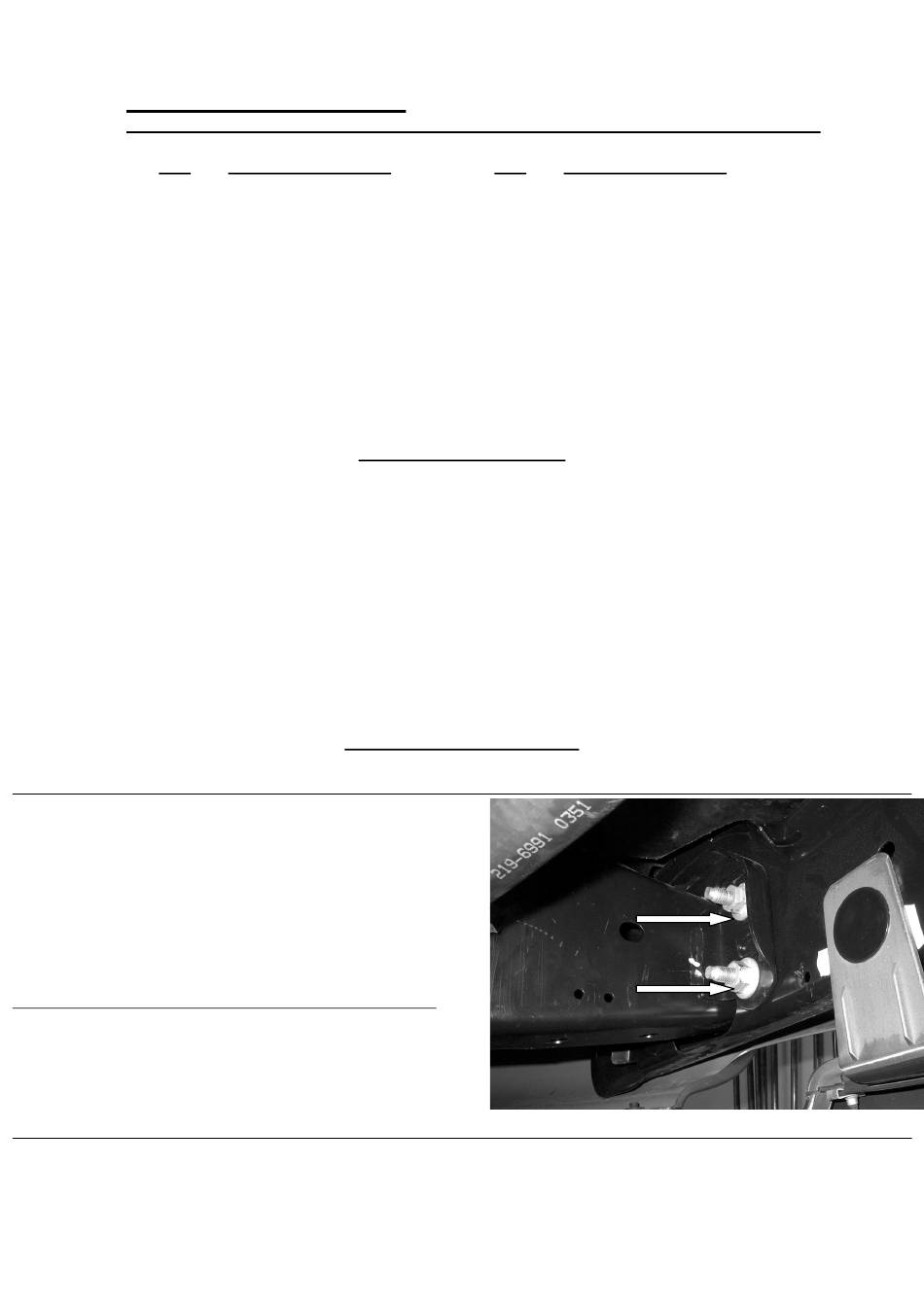

STEP 2. BEGINNING WITH THE DRIVER SIDE, LOCATE
AND REMOVE THE TWO HEX NUTS FROM THE BOLT
ASSEMBLY THAT SECURE THE BUMPER TO THE
FRAME FLANGE.
NOTE: REMOVE THE (3) PLASTIC RIVETS AND PULL BACK THE RUBBER SPLASH GUARD TO EASE THE INSTALLATION.
PARTS DESCRIPTION
P200 PLUG KIT
¼" X ¾" BUTTON HEAD BOLTS
¼" LOCK WASHERS
¼" FLAT WASHERS
¼" HEX NUTS
5/16" X 1" HEX BOLTS
5/16" LOCK WASHERS
5/16" HEX NUTS
3/8" X 1" BUTTON HEAD BOLTS
3/8" X 1" HEX BOLTS
3/8" LOCK WASHERS
3/8" HEX NUTS
ASSEMBLY INSTRUCTIONS
INSTALLATION INSTRUCTIONS
3000 SERIES INSTALLATION INSTRUCTIONS
QTY
PARTS DESCRIPTION
4
½" X 1 ½" HEX BOLTS
4
½" FLAT WASHERS
4
½" LOCK WASHERS
4
½" HEX NUTS
2
1122LP LICENSE PLATE BRACKETS
1
1122AD DRIVER SIDE UPPER BRACKET
1
1122AP PASSENGER SIDE UPPER BRACKET
1
1122BD DRIVER SIDE LOWER BRACKET
1
1122BP PASSENGER SIDE LOWER BRACKET
5
1/4" PLASTIC PIN GRIPS
HEX HEAD BOLTS SUPPLIED.
STEP 4. ALIGN THE GRILLE AND TIGHTEN ALL NUTS
AND BOLTS.
1
Advertisement
Table of Contents
Related Manuals for Go Rhino 3285 B
Summary of Contents for Go Rhino 3285 B
- Page 1 GO RHINO! PRODUCTS 3000 SERIES INSTALLATION INSTRUCTIONS 03-06 FORD EXPEDITION 2/4WD PART NO. 3285 B-C PARTS DESCRIPTION PARTS DESCRIPTION P200 PLUG KIT ½” X 1 ½” HEX BOLTS ¼” X ¾” BUTTON HEAD BOLTS ½” FLAT WASHERS ¼” LOCK WASHERS ½”...
- Page 2 STEP 3. POSITION 1122BD LOWER BRACKET OVER THE BOLTS, AND ATTACH IT TO THE FRAME FLANGE USING THE FACTORY NUTS. (FINGER TIGHTEN ONLY). STEP 4. INSERT 1122AD UPPER BRACKET THROUGH THE OPENING IN THE GRILLE, AND ATTACH IT TO 1122BD LOWER BRACKET USING THE 5/16” HEX HEAD BOLTS.
- Page 3 STEP 7. ATTACH THE GRILLE GUARD ASSEMBLY TO THE UPPER BRACKETS USING THE 3/8” FASTENERS. STEP 8. ALIGN THE GRILLE GUARD ASSEMBLY WITH THE FRONT OF THE VEHICLE AND TIGHTEN ALL MOUNTING NUTS AND BOLTS. STEP 9. ATTACH 1122LP LICENSE PLATE BRACKETS AND THE LICENSE PLATE TO THE BOTTOM SIDE OF THE GRILLE GUARD CENTER PLATE, USING THE ¼”...
