RISER
®
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE
CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO
IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF
ANY CLAIM. IF MISSING PARTS OR ANY DAMAGE FOUND, PLEASE TAKE A
PICTURE FOR THE CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger/Right
Rear Bracket
Passenger/Right Front Bracket
(same as driver rear)
(B)*
Front
TG-RS2D41078
Class 10.9 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
125-126
(A)*
Driver/left Side Step illustrated
Customer Support: www.TygerAuto.com/Contact

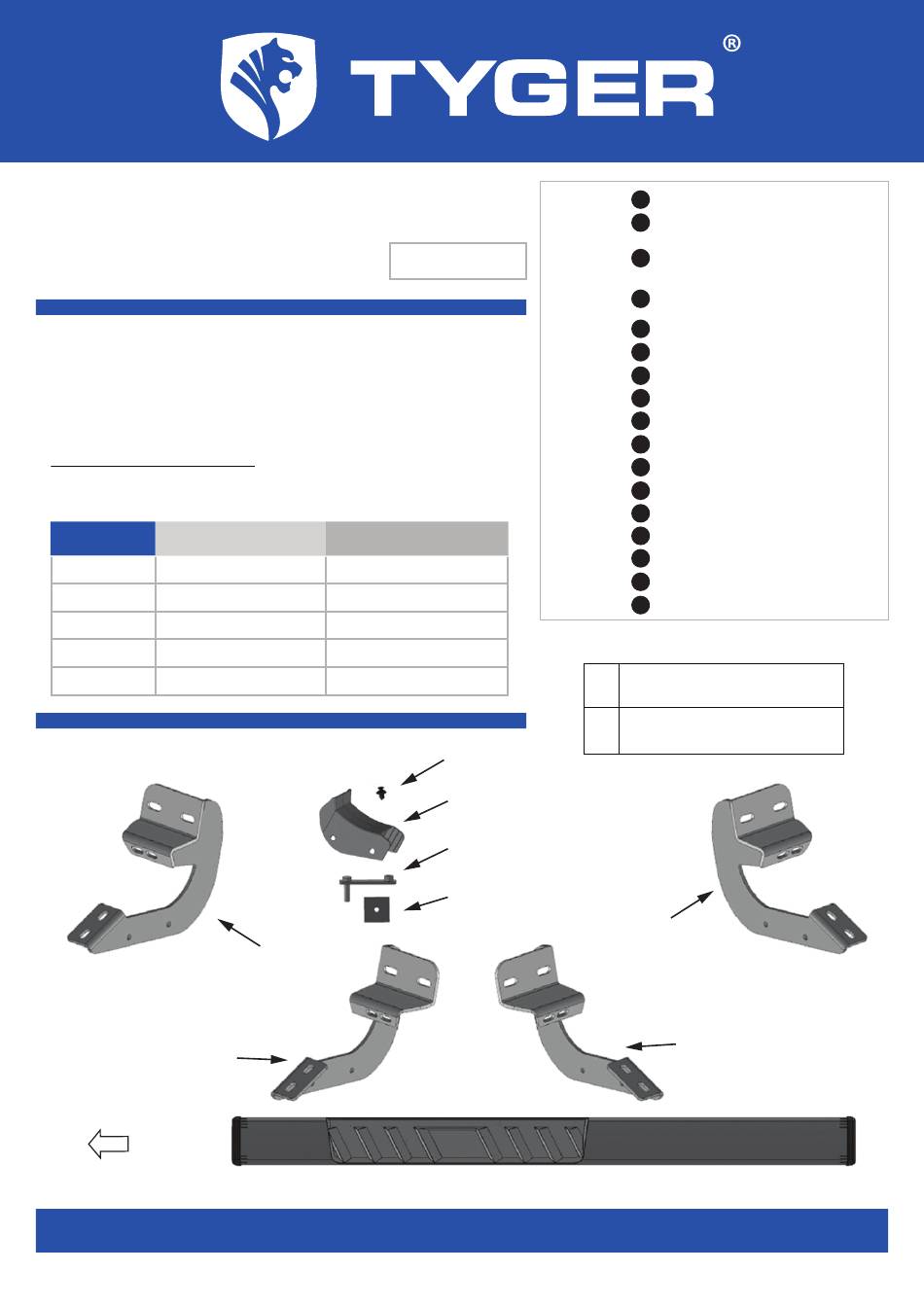

Parts List
6-7
22-23
44-45
78-79
(8) Plastic Clips
(4) Plastic Covers
(4) 8mm Bolt x
8mm Nut Plates
(4) Plastic Retainers
1/6
Driver/Left Side Step
x1
Passenger/Right Side Step
x1
Driver/left Front Brackets (also fits
x2
passenger/right rear location)
Passenger/right Front Brackets (also
x2
fits driver/left rear location)
x4
Plastic Bracket Covers
Plastic Clips for Covers
x8
8mm Nut/Bolt Plates
x4
8mm Plastic Retainers
x4
8-1.25mm x 25mm Combo Hex Bolts
x8
8-1.25mm x 30 Hex Bolts
x8
8mm x 24mm x 2mm Flat Washers
x8
8mm Lock Washers
x8
8mm Hex Nuts
x4
6-1.0mm x 25mm Button Head Bolts
x8
x16
6mm x 18mm x 1.6mm Flat Washers
6mm Flange Nuts
x8
4mm Wrench
x1
*
Bracket Types
Passenger/Right Rear Bracket
A
Driver/Left Front Bracket
Driver/Left Rear Bracket
B
Passenger/Right Front Bracket
Driver/Left
Rear Bracket
(B)*
Driver/Left Front Bracket
(same as passenger rear)
(A)*
V200821
