TYGER TRAX
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
Driver/Left TYGER TRAX
x1
Passenger/Right TYGER TRAX
x1
Front Mounting Brackets (A)
x2
Center/Rear Mounting Brackets (B)
x4
Reference the letters printed on the brackets to determine mounting locations
Customer Support: www.tygerauto.com/contact
TG-TX7F29458
Support Brackets (D)
x6
8mm x 25mm Combo Bolts
x12
8mm x 24mm OD x 2mm Flat Washers
x24
8mm Lock Nuts
x24
(D)
(B)
Driver/Left TYGER TRAX
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
(A)
(A)
1/4
Scan to Download the
Latest Digital Version
Class 10.9 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
125-126
8mm Plastic Retainers
x18
(B)
6-7
22-23
44-45
78-79
V240823
Advertisement
Related Manuals for Tyger TRAX TG-TX7F29458
Summary of Contents for Tyger TRAX TG-TX7F29458

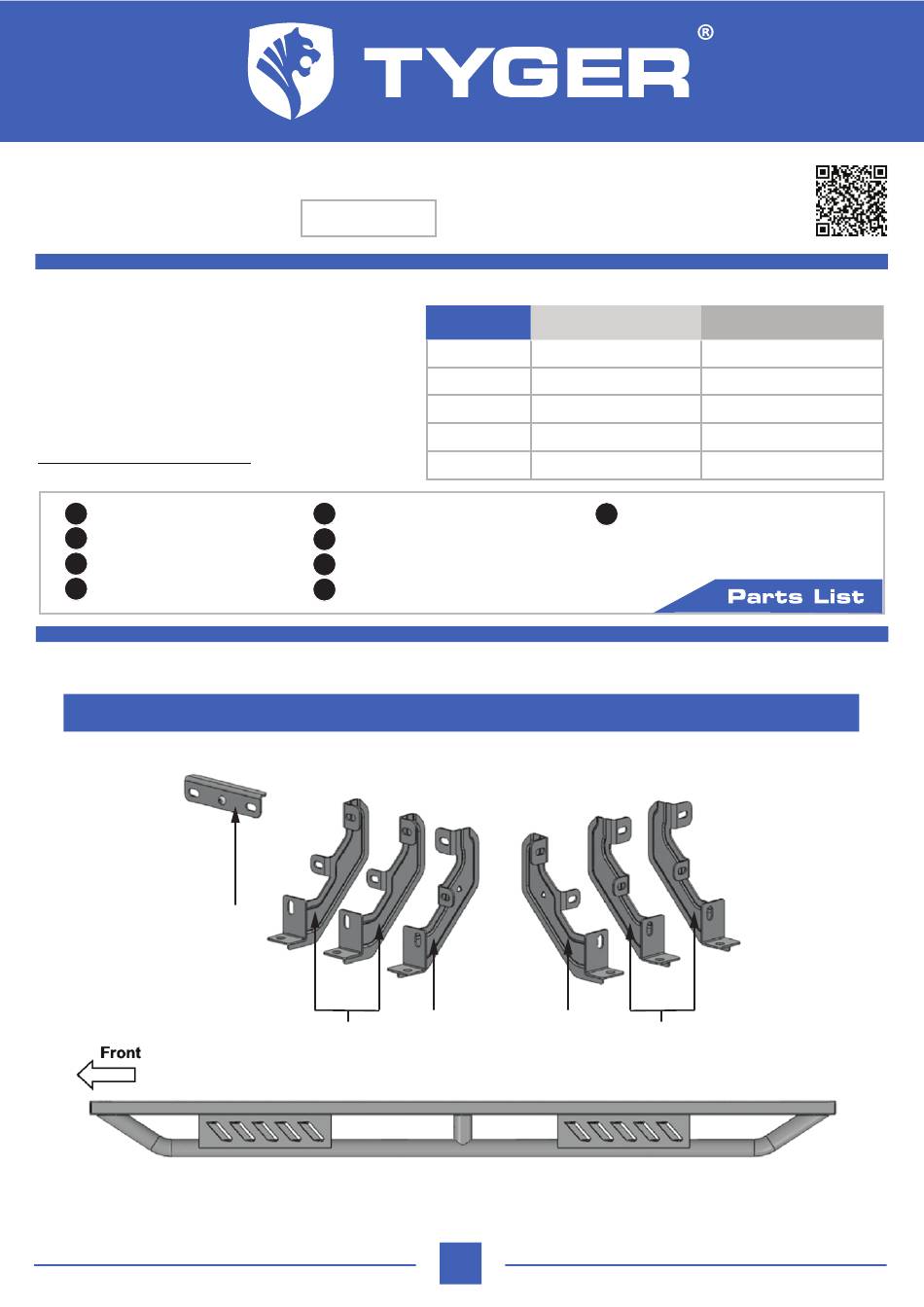

- Page 1 CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT: WWW.TYGERAUTO.COM/CONTACT 14mm 87-88 125-126 Support Brackets (D) Driver/Left TYGER TRAX 8mm Plastic Retainers Passenger/Right TYGER TRAX 8mm x 25mm Combo Bolts Front Mounting Brackets (A) 8mm x 24mm OD x 2mm Flat Washers...
