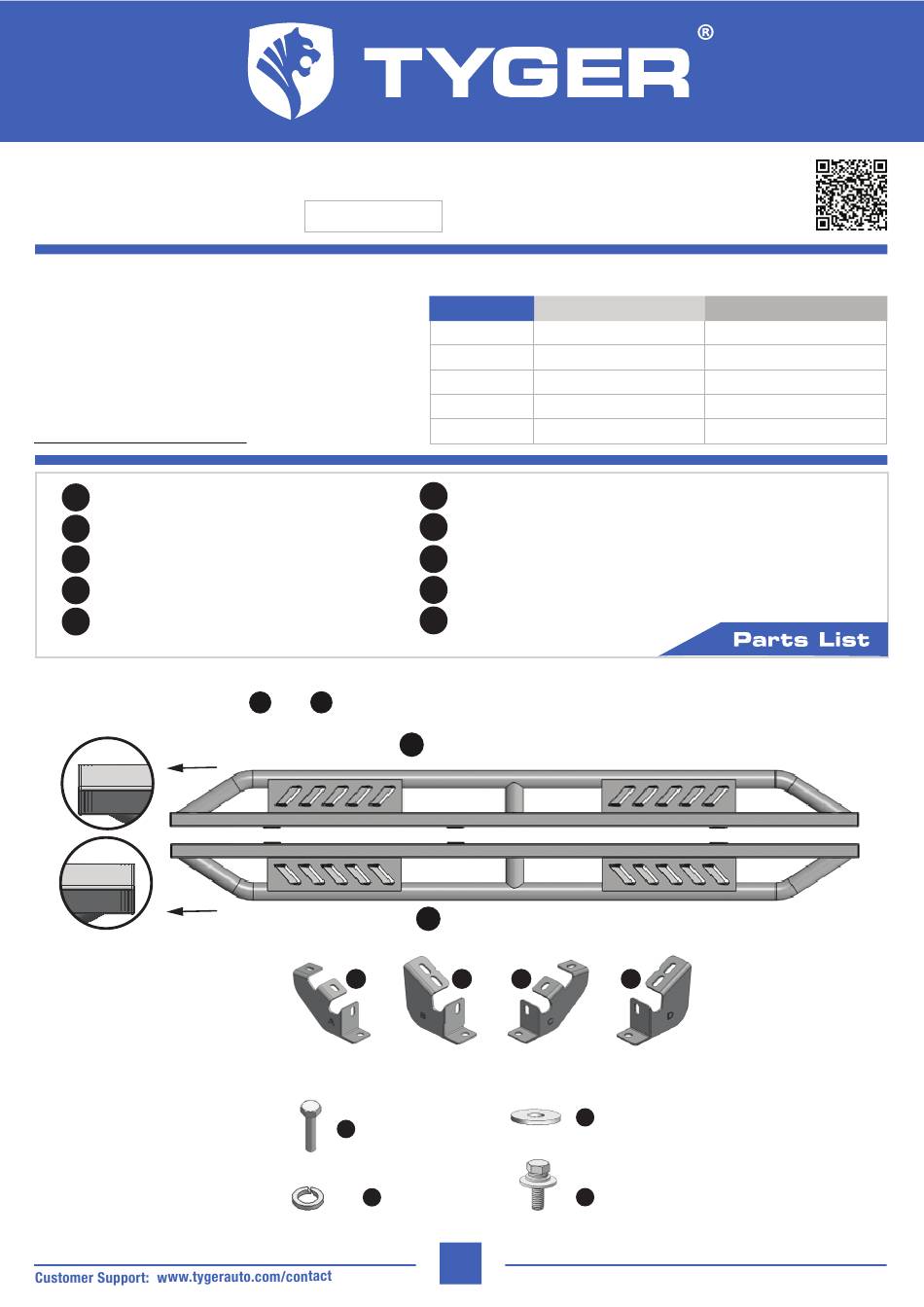

TYGER TRAX
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
x1
Driver/Left Tyger Trax
x1
Passenger/Right Tyger Trax
x1
Driver/Left Front Mounting Bracket [A]
x1
Passenger/Right Front Mounting Bracket [C]
x2
Driver/Left Center/Rear Mounting Brackets [B]
ATTENTION: Refer to
Front
XX-P
XX-D
Front
TG-TX7T29678
x2
x12
x12
x12
x12
Top View
D
P
and
labelling on the side of the tubes to determine Driver and Passenger TYGER Trax
P
Passenger Side TYGER Trax
D
x1
[A]
Driver/Left
Driver/Left
Front Mounting Bracket
Center/Rear Mounting Brackets
x12
8mm x 1.25mm x 30mm Hex Bolts
Hex Bolt
x12
8mm Lock Washers
Lock Washers
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
Passenger/Right Center/Rear Brackets [D]
8mm x 1.25mm x 25mm Hex Combo Bolts
8mm Lock Washers
8mm x 1.25mm x 30mm Hex Bolts
8mm x 24mm x 2mm Flat Washers
Driver Side TYGER Trax
x2
x1
[B]
[C]
Passenger/Right
Front Mounting Bracket
Center/Rear Mounting Brackets
x12
8mm x 24mm x 2mm Flat Washers
Flat Washer
x12
8mm x 1.25mm x 25mm Combo Bolts
Combo Bolt
1/5
Scan to Download the
Latest Digital Version
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
x2
[D]
Passenger/Right
6-7
V240903
