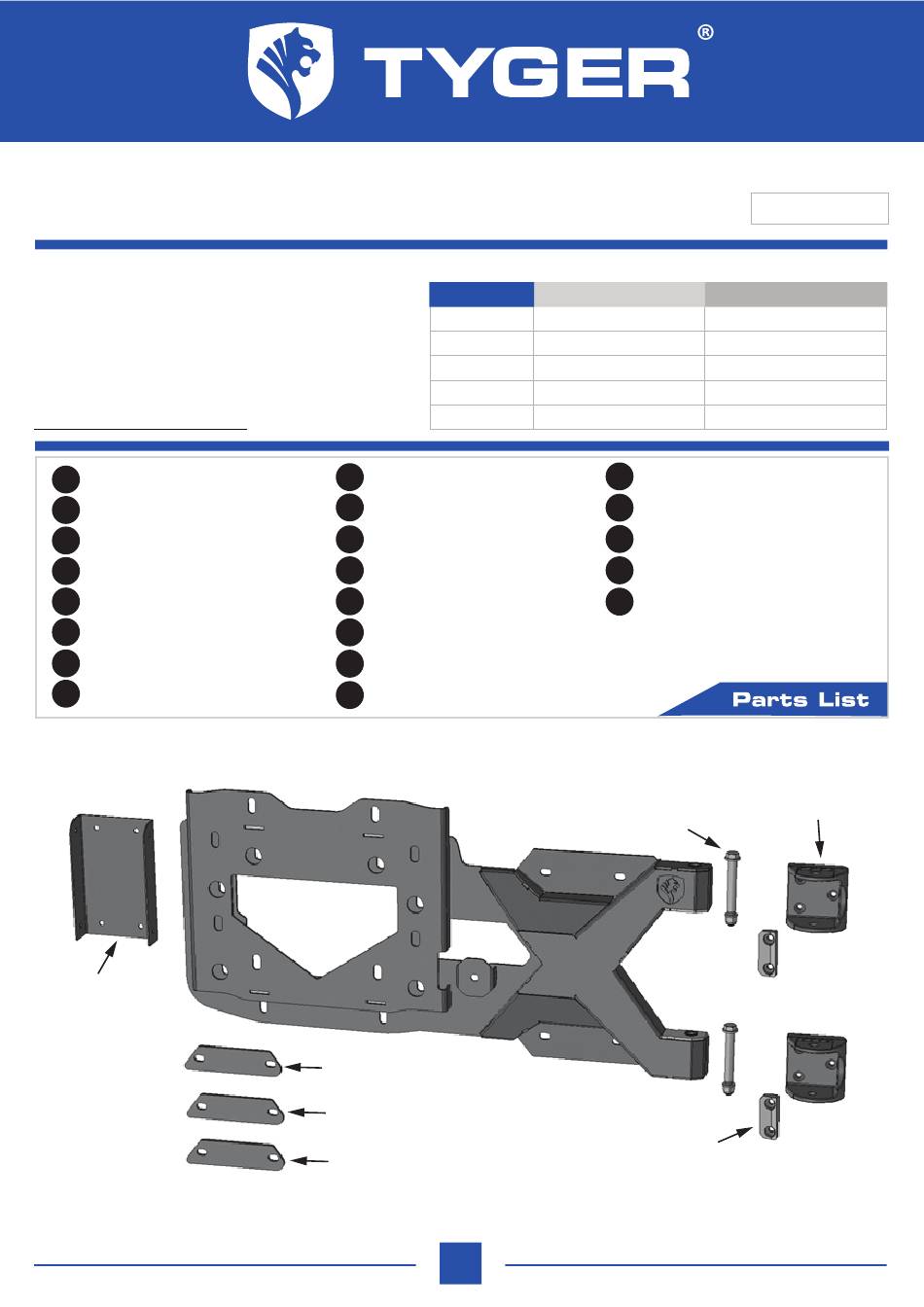

TYGER GUARD
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
Tire Carrier
x1
x1
3rd Brake Light Riser Bracket
x2
1.5mm Thin Shims
x1
5mm Medium Shim
x1
6.5mm Thick Shim
x2
Hinge Mounting Bases
x2
Hinge Swing Limit Blocks
x2
Hinge Pins
3rd Brake
Light Riser
Bracket
Customer Support: www.tygerauto.com/contact
TM
TORQUE VALUES
Fastener Size
x2
12mm x 24mm x 2.5mm Flat Washers
x2
10mm x 20mm x 2mm Flat Washers
x2
10mm Nylon Lock Nuts
x6
8-1.25mm x 35mm Countersunk Bolts
x20
8-1.25mm x 30mm Hex Bolts
x28
8mm x 24mm x 2mm Flat Washers
x12
8mm Lock Washers
x8
8mm Nylon Lock Nuts
Tire Carrier
(2) 1.5mm Thin Shims
(1) 5mm Medium Shim
(1) 6.5mm Thick Shim
Class 8.8 Torque (ft-lbs)
6mm
6-7
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
x8
x16
x8
x1
x1
(2) Hinge Pins
(2) Hinge Swing Limit Blocks
1/6
TG-TR8J84078
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
6mm x 20mm Button Head Bolts
6mm x 18mm x 1.6mm Flat Washers
6mm Nylon Lock Nuts
5mm Wrench
4mm Wrench
(2) Hinge Mounting Bases
V221117
Advertisement
Related Manuals for Tyger GUARD TG-TR8J84078
Summary of Contents for Tyger GUARD TG-TR8J84078
- Page 1 TYGER GUARD TG-TR8J84078 BEFORE INSTALLATION TORQUE VALUES READ INSTRUCTIONS CAREFULLY BEFORE STARTING Fastener Size Class 8.8 Torque (ft-lbs) Class 10.9 Torque (ft-lbs) INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY 15-16 22-23 DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF ANY CLAIM.
- Page 2 TYGER TIRE GUARD PROCEDURE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED. DRILLING IS REQUIRED. STEP 1 Remove the spare tire. Open the rear door and remove the vent cover from the door (Fig 1). Unplug the wire harness leading to the 3rd Brake Light.
- Page 3 TYGER TIRE GUARD STEP 5 STEP 4 Attach the Tire Carrier to the center of the door with the included (8) 8mm x 30mm Hex Bolts, (8) 8mm Lock Washers and (8) 8mm Flat Washers (Fig 8). Do not fully tighten hardware. Attach the right side of the Carrier and Shims to the upper and lower hinge Select the Tire Carrier (Fig 6).
- Page 4 TYGER TIRE GUARD STEP 7 Next, use the included (6) 8mm x 35mm Countersunk Bolts to attach the (2) Hinge Mounting Bases and (2) Swing Limit Blocks to the body (Fig 10). (6) 8mm x 35mm Countersunk Bolts (Fig 12) Adjust door position and tighten hardware.
- Page 5 TYGER TIRE GUARD (Fig 14) Cut straight across light mount housing (Fig 16B) Use 1/4” drill bit to drill (4) mounting holes (4) 6mm x 20mm Button Head Bolts STEP 11 (8) 6mm Flat Washers (4) 6mm Nylon Lock Nuts Draw a line on the cut off stub, (below the cutline), 2”...
- Page 6 TYGER TIRE GUARD STEP 13 Attach the tire mount to the previously installed Tire Carrier with the included (8) 8mm x 30mm Hex Bolts, (16) 8mm Flat Washers and (8) 8mm Nylon Lock Nuts (Fig 19). Fully tighten hardware. (8) 8mm x 30mm Hex Bolts...
