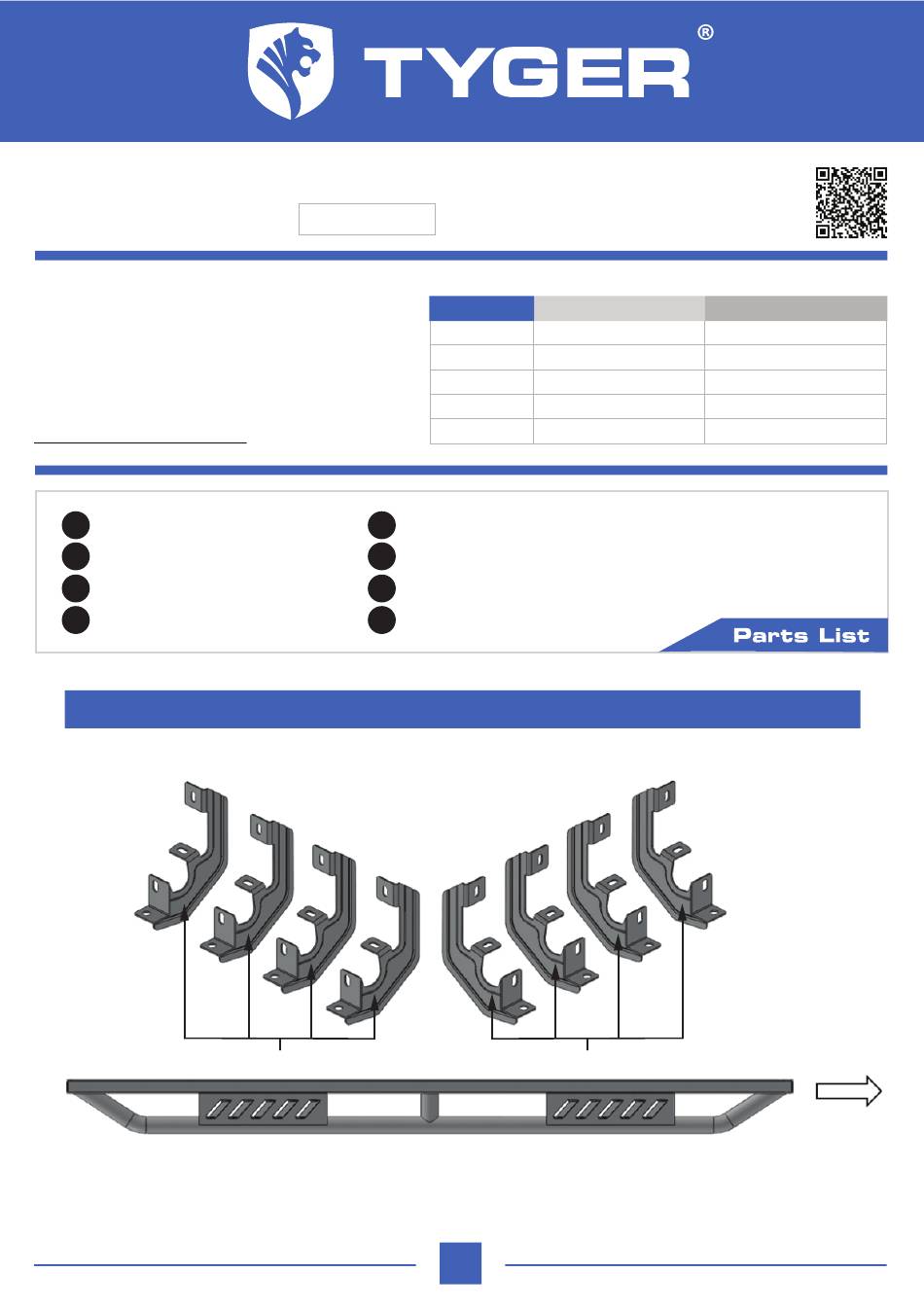

TYGER TRAX
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
x1
Driver/Left Tyger Trax
x1
Passenger/Right Tyger Trax
x4
Driver/Left Mounting Brackets (A)
x4
Passenger/Right Mounting Brackets (B)
Reference the letters printed on the brackets to determine mounting locations
Customer Support: www.tygerauto.com/contact
TG-TX7C29758
TORQUE VALUES
Fastener Size
x16
8mm x 30mm Hex Bolts
x16
8mm x 25mm Combo Bolts
x16
8mm Lock Washers
x16
8mm x 24mm OD x 2mm Flat Washers
(B)
Passenger/Right TYGER TRAX
Class 8.8 Torque (ft-lbs)
6mm
6-7
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
(A)
1/3
Scan to Download the
Latest Digital Version
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
Front
V240823
Advertisement
Related Manuals for Tyger TG-TX7C29758
Summary of Contents for Tyger TG-TX7C29758
- Page 1 78-79 CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT: 14mm 87-88 125-126 WWW.TYGERAUTO.COM/CONTACT Driver/Left Tyger Trax 8mm x 30mm Hex Bolts Passenger/Right Tyger Trax 8mm x 25mm Combo Bolts Driver/Left Mounting Brackets (A) 8mm Lock Washers Passenger/Right Mounting Brackets (B)
- Page 2 TYGER TRAX Bottom View ATTENTION: Refer to the D or P labelling on the tubes to determine the Driver or Passenger side steps. XX-D XX-D Driver Left Side XX-P XX-P Passenger Right Side PROCEDURE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
- Page 3 (Fig 8) Attach the Passenger/Right TYGER TRAX to the (4) Mounting Brackets (B) (Fig 5) Passenger/right 2nd mounting location STEP 6 Level and adjust the TYGER TRAX and fully tighten all hardware. STEP 7 Repeat STEPS 1-6 to attach the Driver/Left TYGER TRAX. STEP 8...
