Atdec AC-AP-UTH Installation Instructions

AC-AP-UTH
Universal Tablet Holder
Component Checklist
Universal Tablet Mount

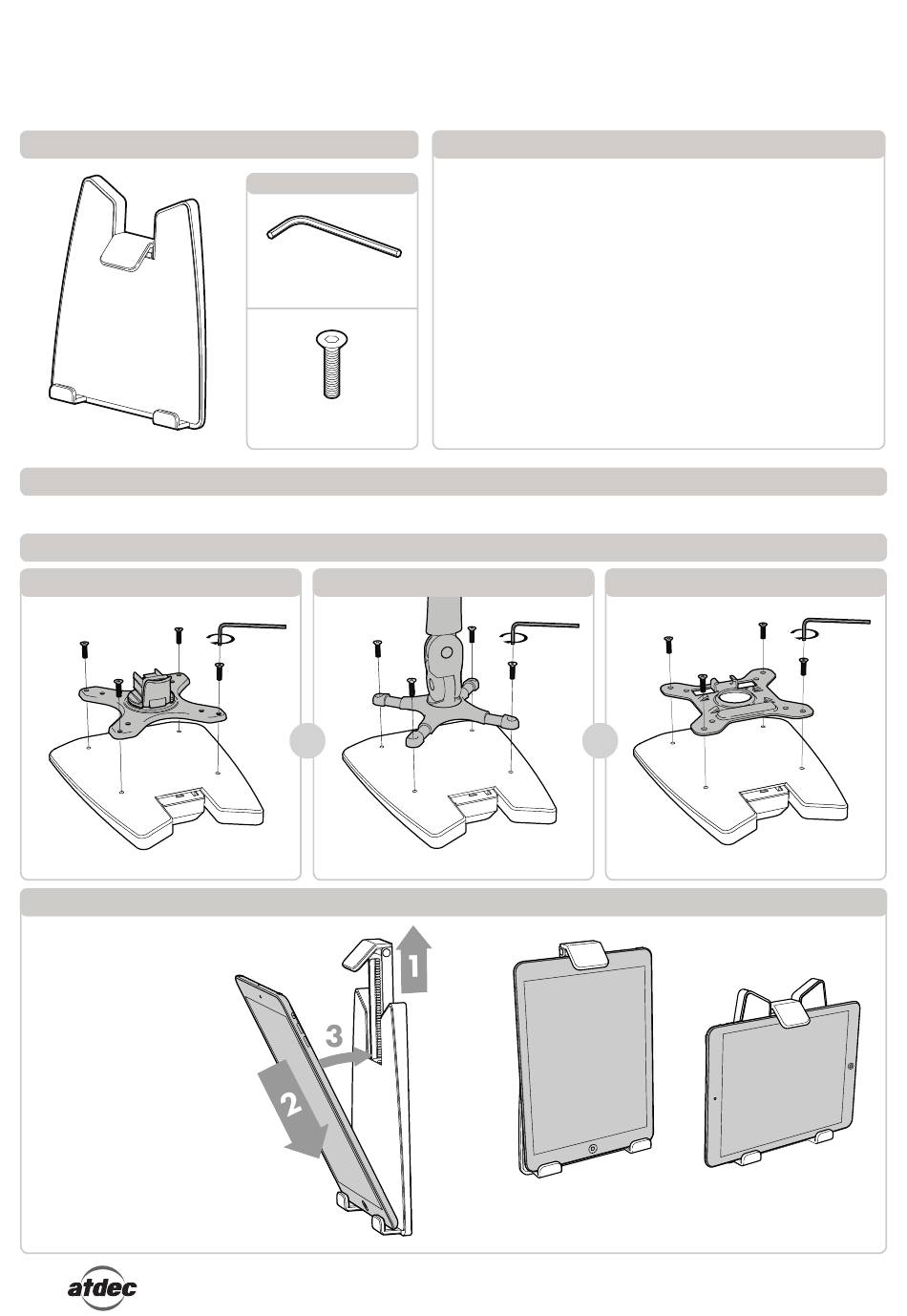

Step 1. Check components
Check that you have received all parts against the Component Checklist.
Step 2. Attach tablet holder to VESA mount
Systema
Step 3. Attach tablet to tablet holder
1. Pull the top tab up
2. Position bottom
edge of tablet into
lower tabs
3. Push tablet flat
against the back
of the mount.
Allow the top tab
to retract over the
edge of the tablet.
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Hardware
2.5mm Allen Key
M4x15 Screw (x4)
OR
Due to the continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 10/1 1/15 ©
Installation Instructions
IMPORTANT INFORMATION
! IMPORTANT - Install as per Installation Instructions
! This product is used to mount tablet devices only.
! This product is compatible with Atdec's Systema, Visidec and
Spacedec range of monitor mounts. Also compatible with
100x100 VESA mounting plates.
! The maximum thickness of the supported tablet is 15mm (0.6").
! The minimum width of the supported tablet is 140mm (5.5").
! The maximum height of the supported tablet is 255mm (10").
! Ensure your tablet is mounted centrally on the Universal Tablet
Holder for optimum stability.
! Ensure holder tabs do not interfere with buttons on your tablet.
! The manufacturer accepts no responsibility for incorrect
installation.
Visidec Focus
Tablet can be mounted in Landscape
or Portrait orientations.
Spacedec/Telehook
OR
