Atdec AW-FB Installation Manual

Ora bolt through fixing
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Ora Bolt Through Fixing
Installation Guide
COMPONENT CHECKLIST
AW-FB
CAPACITY
Weight:
Display Size:
WARRANTY
10 Years Limited
Arm Spigot (x1)
TOOLS REQUIRED
4mm Hex Key (supplied with Ora arm)
8.5mm (or 11/32") drill bit
Power Drill
13mm Spanner
Phillips head screwdriver

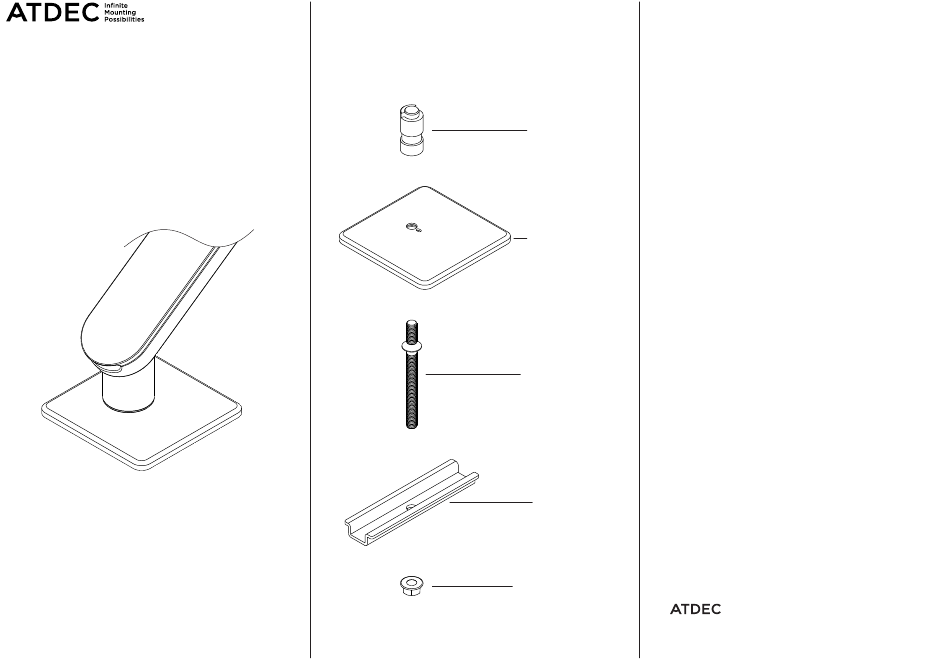

Clamp Plate (x1)
IMPORTANT INFORMATION
•Install Ora Accessories as per these installation
instructions.
•The manufacturer accepts no responsibility for
incorrect installation.
•The product is compatible with grommet hole sizes
up to 80mm (3.15")
•The product is compatible with desk thicknesses
from 0-55mm (0-2.2").
M8 Stud Bolt (x1)
•Do not over-tighten screws and adjustment points
on product.
•This product is not suitable for outdoor use.
•Do not use this product for mobile applications.
•Please ensure desk structure and mounting surface
are of sufficient strength to support this product and
mounted equipment.
Clamp Bar (x1)
M8 Flange Nut (x1)
No portion of this document or any artwork contained herein should be
reproduced in any way without the express written consent of Atdec Pty
Ltd. Due to continuing product development, the manufacturer reserves
the right to alter specifications without notice. ©20231006
2 - 8kg (4.4 - 17.6lb)
Up to 35" (curved or flat)
(Larger monitors within the weight
capacity may be compatible, please
contact Atdec for advice).
