Whitmor 6822-150-B Manual

6822-150-B Clothes Closet
A
4 ea
Corner support
Note:
All metal parts must be
inserted firmly and completely into
the plastic parts.
C
C
C
D
D
A

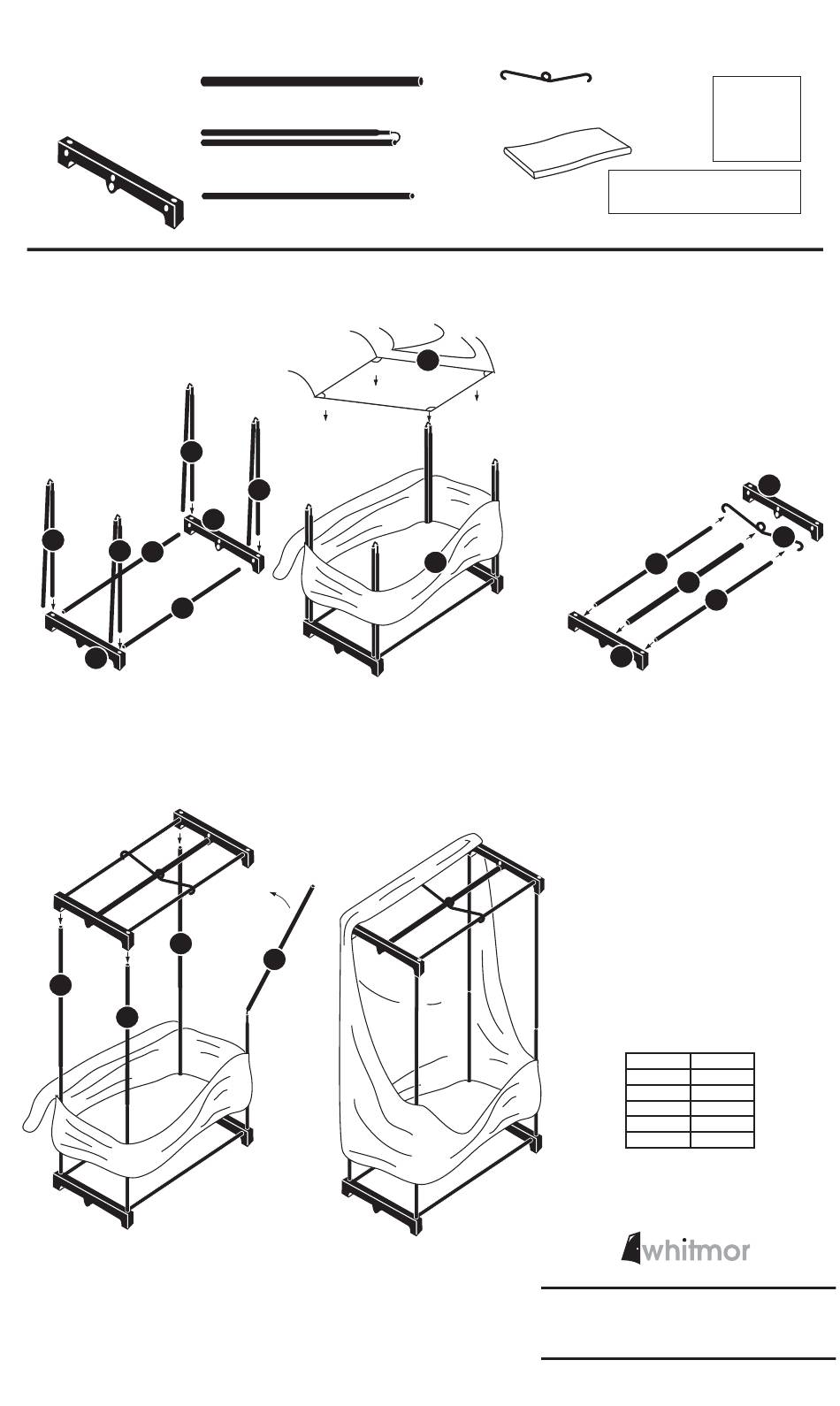

STEP 1.
To assemble the lower
frame, insert two horizontal frame
tubes (D) into corner support (A).
Insert four vertical frame tubes (C)
into holes in top of corner support.
Do not assemble the vertical
frame tube sections together yet.
C
C
C
STEP 4.
Complete assembly by
unfolding the vertical frame tubes
(C) and placing the two sections
together. Place assembled upper
section (assembled in step 3) onto
end of the vertical frame tubes.
B
1 ea
Clothes rod
C
4 ea
Vertical frame tube
D
4 ea
Horizontal frame tube
Note:
For easier assembly, unzip
cover before installing.
C
A
STEP 2.
(F) and carefully fit holes in bottom
of cover over the vertical frame
tubes. Slide cover down and
carefully lay the cover back.
C
STEP 5.
top of the frame, carefully fitting
the corners of the cover over the
top corners of the frame. Slide the
bottom of the cover downwards
evenly to the base of the frame.
2009 Whitmor
©
E
1 ea
Center spring support
F
1 ea
Cover
F
F
Unzip zipper on cover
Lift cover up over the
This product's intended use
is for storing clothes.
Tools Needed: No tools required.
Note:
Closet rod (B) is wider in
diameter than horizontal frame tubes (D).
D
B
A
STEP 3.
To assemble top of
frame, slide center support spring
(E) onto clothes rod (B). insert two
horizontal frame tubes (D) and the
clothes rod (B) into the two
remaining corner supports (A) with
center spring support hooked
around horizontal frame tubes (D).
The clothes rod goes into the
larger, lower center hole of corner
support.
Note:
Although your clothes closet
can be assembled by one person, it
is recommended that two people
install the cover.
Part Reference
A
B
C
D
E
F
MADE IN CHINA
8680 Swinnea Road • Suite 103 • Southaven, MS • 38671
NEED HELP? For help with assembly, or if you are missing a part,
please call Whitmor's Customer Service Department, 1-888-944-8667
between 8 a.m. and 4:30 p.m. (Central Standard Time) Monday
through Friday. Or email: customer_service@whitmor.com
Assembly
Time:
Less than
1 hour.
