Whitmor 6363-8371 Quick Start Manual

6363-8371 Gunmetal Covered Closet
A
2 ea
Bottom end tube
B
2 ea
Top end tube
C
4 ea
Female horizontal tube
D
4 ea
Male horizontal tube
E
2 ea
Horizontal support tube

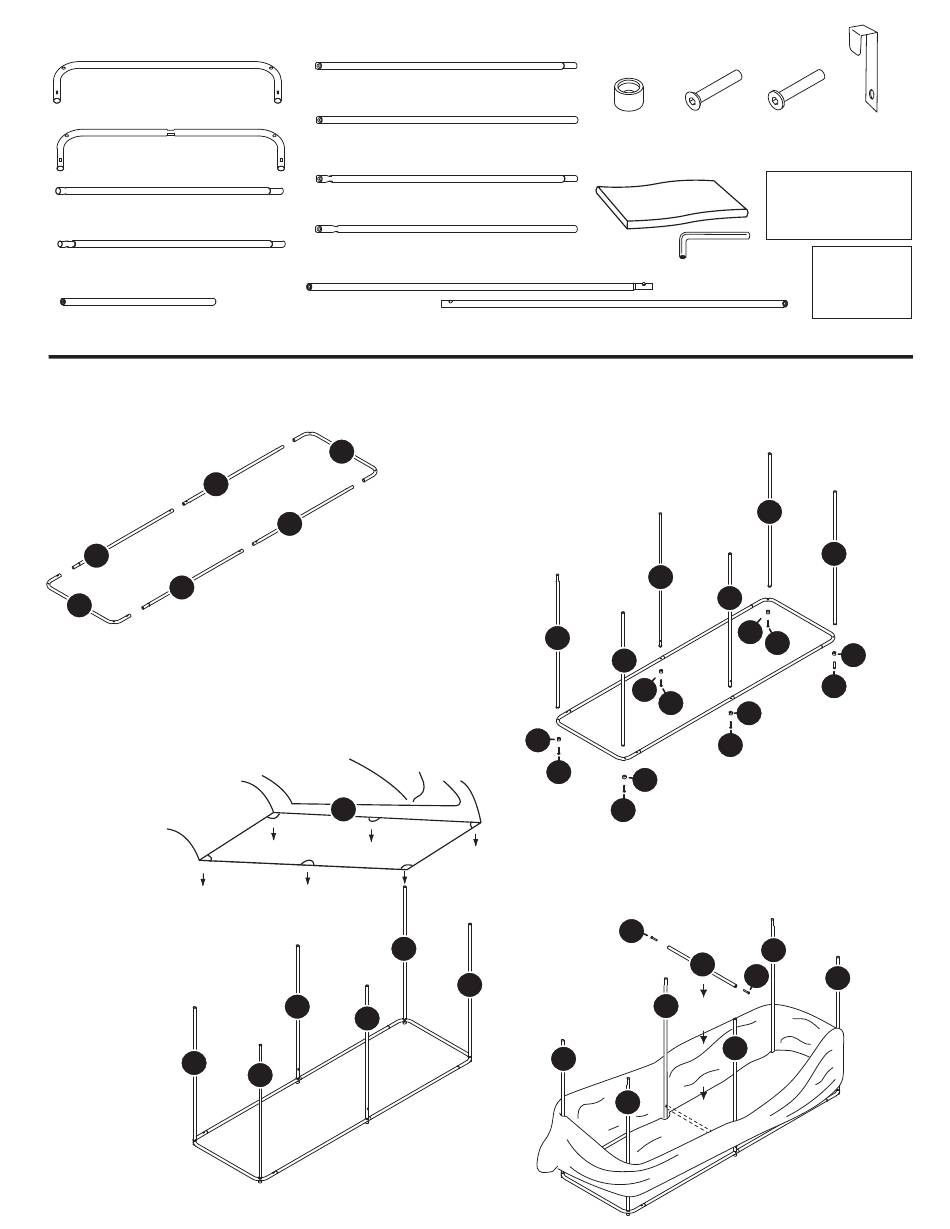

STEP 1.
Assemble male and female horizontal
tubes (C&D) then assemble two bottom end
tubes (A) by pressing together.
D
C
C
A
STEP 3.
Unzip the cover (P) front and carefully fit holes in
bottom of cover over the bottom male vertical tubes (F&H).
Note:
For easier
assembly, unzip cover
before installing.
Note:
Although your clothes
closet can be assembled by one
person, it is recommended that
two people install the cover.
F
F
4 ea
Bottom male vertical tube
G
4 ea
Top female vertical tube
H
2 ea
Bottom male center vertical tube
I
2 ea
Top female center vertical tube
J
1 ea
Male hanging tube
A
D
P
F
H
H
F
2017 Whitmor, Inc.
©
L
6 ea
Floor glide
P
1 ea
Cover
K
1 ea
Tools Needed: No additional tools required.
Female hanging tube
STEP 2.
Install four floor glides (L) and four bottom male
vertical tubes (F) using four hex screws (M). Install two
more floor glides (L) and two bottom male center vertical
tubes (H) using two hex screws (M). Tighten all hex
screws with hex wrench (Q).
F
F
L
L
M
L
M
STEP 4.
Slide the cover down and carefully lay the
cover back exposing the bottom. Install one horizontal
support tube (E) with two hex screws (M) over the bottom
of the cover, between vertical tubes (H). Tighten hex
screws with hex wrench (Q)
M
F
F
F
M N
16 ea 2 ea
Countersunk Flat head
hex screw hex screw
This product's
intended use is
for storing clothes.
Q
1 ea
Assembly
Hex wrench
Time: Less
than 1 hour.
F
F
H
H
L
M
M
M
L
M
F
E
M
F
H
H
O
2 ea
Hanging tube
hook
L
