Whitmor 6898-11296 Assembly Instructions

6898-11296 Gunmetal Double Rod Closet
A
C
2 ea 2 ea
Bottom Left
Top Left
Vertical Poles
Vertical Poles
(no hole in the middle)
(no hole in the middle)
B
4 ea
D
4 ea
Bottom
Vertical Poles
Top Vertical Poles
(hole in the middle)
(hole in the middle)

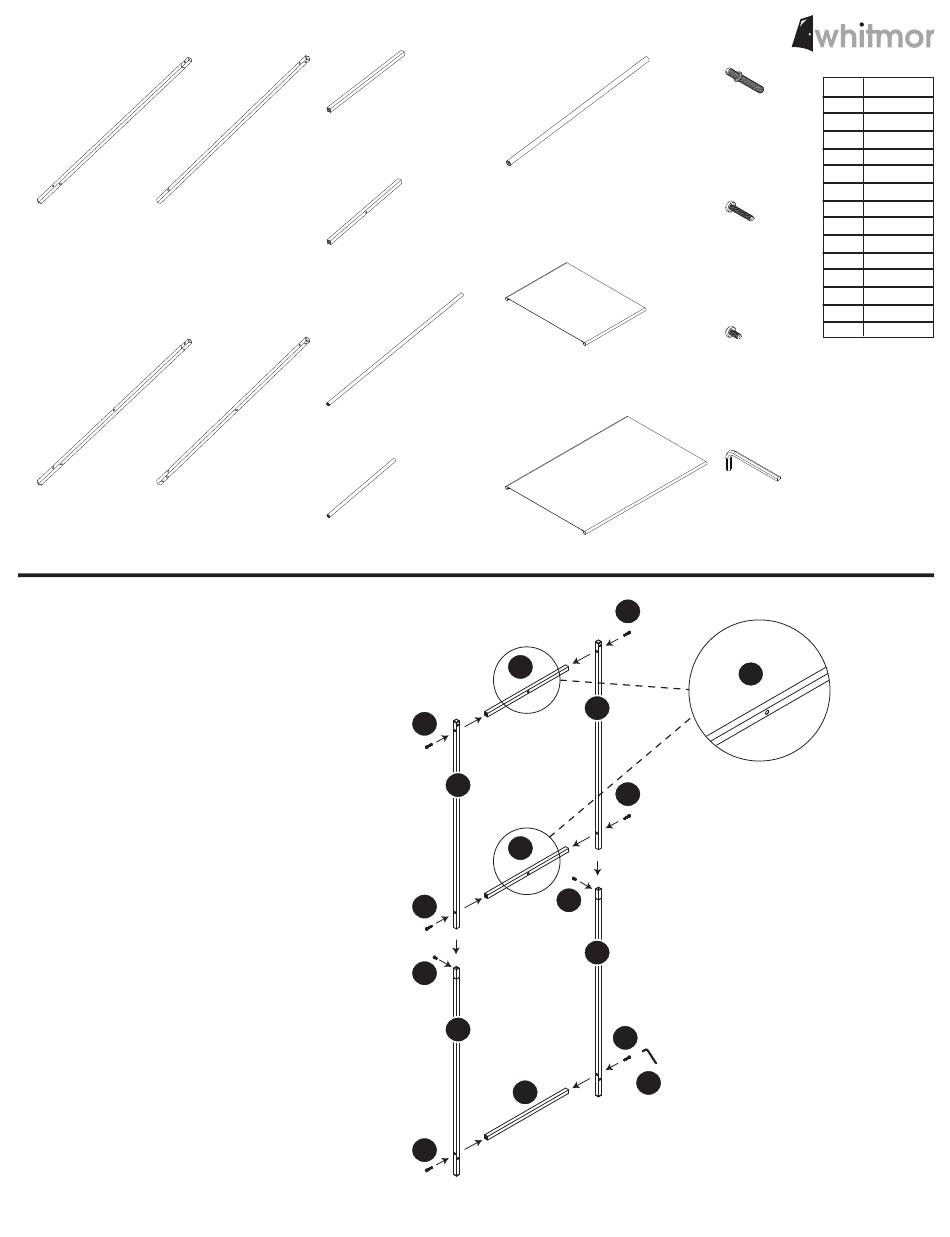

STEP 1a:
Follow the drawing to assemble
the bottom of the left frame.
� Connect two bottom left vertical poles (A) with
a horizontal connector (E). Make sure the holes
at the top of vertical poles (A) are perpendicular
to the horizontal connector (E). Secure with two
long screws (M).
� Tighten with a hex wrench (O).
STEP 1b:
Follow the drawing to assemble
the top of the left frame.
� Connect two top left vertical poles (C) with
two horizontal rod connectors (F), secure using
four long screws (M). Make sure the center
holes on horizontal rod connectors (F) are
perpendicular to the vertical poles (C). Make
sure the holes at the bottom of vertical poles (C)
are perpendicular to the horizontal rod
connector (F) and are facing the same direction.
� Tighten with a hex wrench (O).
STEP 1c:
Assemble the left frame.
� Place the top half of the frame on the bottom
of the frame. Make sure the holes at the bottom
of the vertical poles (C) and the holes at the top
of vertical poles (A) align. Secure using two
short screws (N)
� Tighten with a hex wrench (O).
E
5 ea
Horizontal Connector
(no hole in the middle)
I
Hanging Rods
F
4 ea
Horizontal Rod Connectors
(hole in the middle)
J
Small Shelves
G
4 ea
Long Shelf Supports
H K
10 ea
Short Shelf Supports Large Shelf
M
C
M
N
A
M
2 ea
5 ea
1 ea
M
F
C
M
the center holes on
horizontal rod connectors
(F) are perpendicular to the
F
N
A
M
O
E
Part Reference
A
B
L
4 ea
C
Dual Threaded
D
Screws
E
F
G
H
I
M
42 ea
J
K
Long Screws
L
M
N
O
N
6 ea
Short Screws
O
1 ea
Hex Wrench
Tools Needed:
No additional tools required.
F
NOTE: make sure
vertical poles (C).
