STYLE NO:

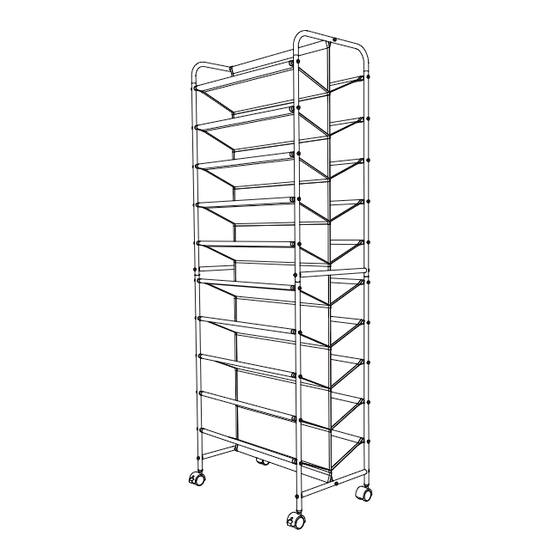

6037-10524-GM | 10-Tier Shoe Cart
A
2 ea
Top Tubes
B
22 ea
Horizontal Shelf Tubes
©2024 Whitmor, Inc.
C
4 ea
Top Poles
D
F
2 ea
2 ea
Wheels
Locking Wheels
E
4 ea
Bottom Poles
H
50 ea
Hex Screws
Part
A
B
C
D
E
F
G
H
I
J
K
No additional tools required.
G
2 ea
Bottom Supports
J
K
1 ea
Hex Wrench
Middle Supports
Reference
F11965
F11966
F12054
F11968
F12055
F11970
F11971
F11972
F12056
F11974
F13049
I
1 ea
Mesh Shelves
2 ea
Page 1
Advertisement
Related Manuals for Whitmor 6037-10524-GM
Summary of Contents for Whitmor 6037-10524-GM
- Page 1 STYLE NO: 6037-10524-GM | 10-Tier Shoe Cart Part Reference F11965 F11966 F12054 F11968 F12055 F11970 F11971 F11972 F12056 F11974 F13049 No additional tools required. 2 ea 4 ea 4 ea 2 ea 1 ea Top Tubes Top Poles Bottom Poles...
- Page 2 STYLE NO: 6037-10524-GM | 10-Tier Shoe Cart STEP 1: Start by assembling the side frames. Insert ends of the top tube (A) into two top poles (C). Insert top poles (C) into ends of bottom poles (E).
- Page 3 STYLE NO: 6037-10524-GM | 10-Tier Shoe Cart STEP 2: Insert ends of the horizontal shelf tubes (B) into top tube (A) and bottom support (G). Secure using a hex wrench (J) and two hex screws (H). Tighten with hex wrench (J).
- Page 4 STYLE NO: 6037-10524-GM | 10-Tier Shoe Cart STEP 3: Insert mesh shelves (I) onto the horizontal shelf tubes (B). As shown below. NOTE: Make sure the tag is at the bottom of mesh shelves. ©2024 Whitmor, Inc. Page 4...
- Page 5 STYLE NO: 6037-10524-GM | 10-Tier Shoe Cart STEP 4: Attach the second side frame to the unit using two hex screws (H). Tighten with hex wrench (J). Flip the unit upright. NOTE: Flip the unit upright. Be cautious with the connections as they are not secure.
- Page 6 STYLE NO: 6037-10524-GM | 10-Tier Shoe Cart STEP 5: Insert twenty horizontal shelf tubes (B) into mesh shelves (I). ©2024 Whitmor, Inc. Page 6...
- Page 7 STYLE NO: 6037-10524-GM | 10-Tier Shoe Cart STEP 6: Secure horizontal shelf tubes (B) using forty hex screws (H). Lightly tighten screws by hand. When all the tubes are secure, tighten all screws with a hex wrench (J).
- Page 8 8680 Swinnea Road • Suite 103 • Southaven, MS • 38671 NEED HELP? For help with assembly, or if you are missing a part, please call Whitmor’s Consumer Care Team, 1-888-944-8667 between 8 a.m. and 4:30 p.m. (Central Standard Time) Monday through Friday, or email: help@whitmor.com. Visit us online at www.whitmor.com Rev#5 | 03.19.24...
