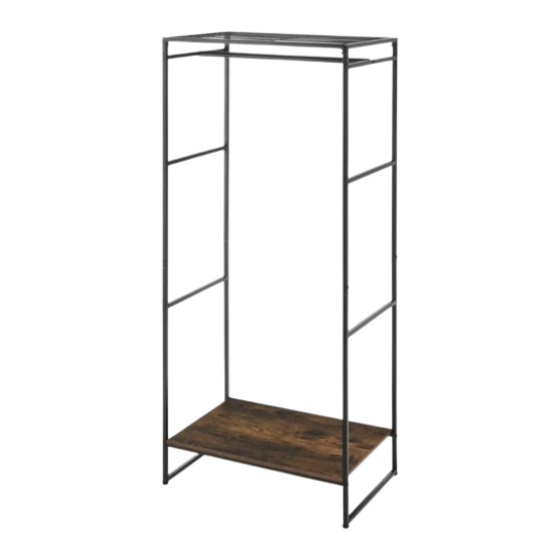

Modern industrial wardrobe

Advertisement

Quick Links

6764-11413 Modern Industrial Wardrobe
C
Horizontal Supports
D
Hanging Rod
A
2 ea
Bottom Side Frames
E
Wire Shelf
B
F
2 ea
Top Side Frames
Shelf
STEP 1: Prepare the shelf
□ Attach two horizontal supports (C)
to the bottom side of the shelf (F)
using the pre-drilled holes and six
Phillips screws (J).
□ Tighten with the long side of
multi-tool (L).
J
J
C
J
G
C
J
2020 Whitmor, Inc.
©
2 ea
1 ea
1 ea
1 ea
STEP 2: Assemble the side frames
□ Insert bottom side frame (A) into the top side frame (B). NOTE: make sure holes
of the connecting tubes on bottom side frame (A) and top side frame (B) align.
□ Secure using two short hex screws (H) and tighten with the short side of
multi-tool (L).
□ Hand screw two leveling feet (K) into the bottom of the side frame.
□ Repeat for the second side frame.
L
J
K
J
K
A
G
4 ea
Long Hex
Screws
H
8 ea
Short Hex
Screws
I
2 ea
Medium Hex
Screws
J
6 ea
Phillips Screws
K
A
A
B
NOTE: make sure holes of the
connecting tubes on bottom side
frame (A) and top side frame (B) align.
K
4 ea
Leveling Feet
L
1 ea
Multi-tool
L
H
H
B
Part Reference
A
F10992
B
F10993
C
F10994
D
F10995
E
F10996
F
F10997
G
F10724
H
F10998
I
F10999
J
F10725
K
F11000
L
F10726
No Additional
Tools Required
