Whitmor 6422-8857-WHT-BB Manual

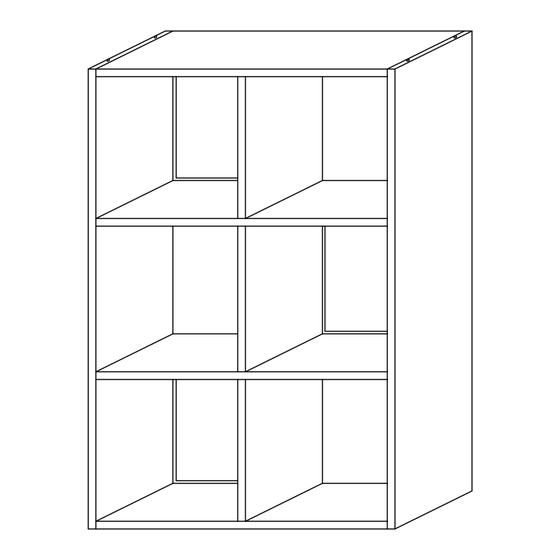

6422-8857-WHT-BB 6-Cube Organizer - White
Care Instructions:
Wipe clean with a dry cloth.
PARTS:
2
2 ea
Center shelves
3
2 ea
Top/bottom shelves
1 4
2 ea 3 ea
Side panels Middle dividers
WARNING
• This unit contains small parts which could be a choking hazard for small children. Children should be under adult supervision at all times or
serious injury could occur.
• Always unload unit prior to moving the unit. The weight of personal belongings can cause the unit to become unstable and either tip or collapse.
Serious bodily injury and/or damage to personal belongings may occur.
• Do not overload unit. If any shelf, top, or bottom of unit bows or bends, it is overloaded. The shelf, top, or bottom could collapse and cause
serious bodily injury and/or damage to personal belongings.
• Do not climb or step on the unit. The unit may become unstable and either tip or collapse. Serious bodily injury and/or damage to personal
belongings may occur.
• Do not mount or attach anything to the sides, rear or front of the unit as this can create a force which can cause the unit to tip.
Serious bodily injury and/or damage to personal belongings may occur.
• Do not hang this unit on the wall. The product structure is not designed for wall hanging. Serious bodily injury, damage to personal belongings,
and/or damage to the wall may occur.
• All units must be secured individually to a wall stud using the included safety strap and screws. If wall stud is not accessible consult your local
hardware store for appropriate mounting hardware. Failure to do so may create an unsafe tipping hazard that could lead to serious bodily injury and/or
damage to personal belongings.
• Follow proper safety procedures when using power tools and ladders (when applicable).
• We recommend you protect your work surface during assembly to prevent scratching or damage to table tops, wood floors, etc.
2020 Whitmor, Inc.
©
5
3 ea
Back panels
HARDWARE:
A D
20 ea
16 ea
Screw covers
Hex screws
B
E
24 ea 4 ea
Finishing nail Bottom pads
C F
4 ea 1 ea
Long dowels Safety straps
Part
1
2
3
4
5
A
B
C
D
E
F
G
H
I
J
K
L
Tools Needed:
A Phillips screwdriver and a hammer.
G
1 ea
Small Phillips
screw
H
1 ea
Wall anchor
I
2 ea
Washers
Reference
F10411
F10412
F10413
F10414
F10415
F10372
F10373
F10374
F10407
F10376
F10377
F10378
F10379
F10380
F10381
F10382
F10383
J
24 ea
Short dowels
K
1 ea
Large Phillips
screw
L
1 ea
Hex wrench
Page 1
