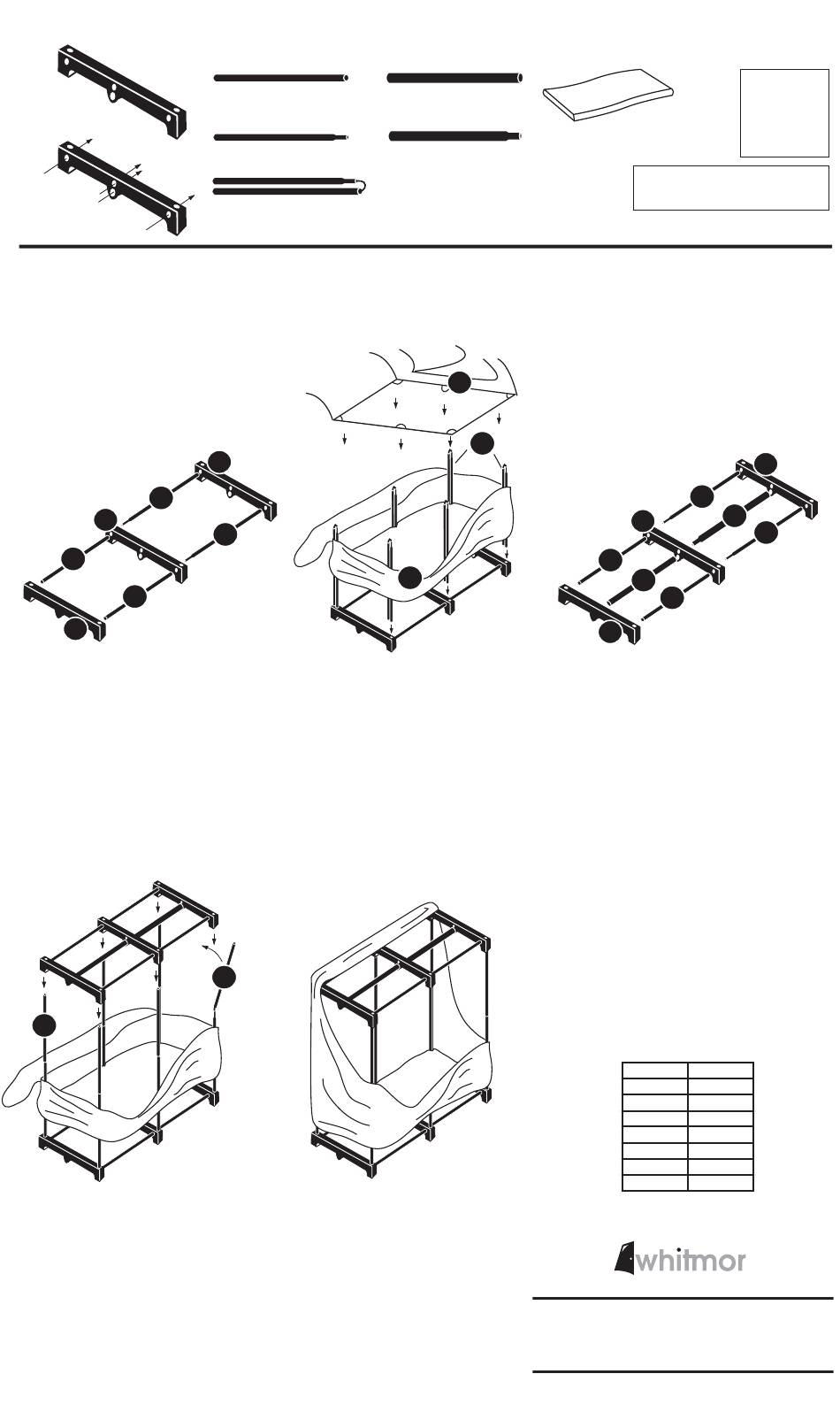

Whitmor 6822-167-B Manual

6822-167-B Clothes Closet
A1
4 ea
Corner support
A2
2 ea
Center support
Note:
All metal parts must be
inserted firmly and completely into
the plastic parts.
C
A2
B
B
A1
STEP 1.
To assemble the
lower frame, insert two
frame tubes (B) into one
corner support (A1). Insert
two male frame tubes (C)
into center support (A2)
where frame tubes
intersect. Place another
corner support (A1) onto
the end.
D
STEP 4.
Complete assembly by
unfolding the vertical frame tubes
(D) and placing the two sections
together. Place assembled upper
section (assembled in step 3) onto
end of frame tubes.
B
4 ea
Horizontal frame tube
C
4 ea
Horizontal Male frame tube
D
6 ea
Vertical frame tube
Note:
For easier assembly, unzip
cover before installing.
A1
C
STEP 2.
tubes (D) into lower frame. Do not
assemble the vertical frame tube
sections together yet. Unzip
zipper on cover (G) and carefully
fit holes in bottom of cover over
the vertical frame tubes. Slide
cover down and carefully lay the
cover back.
D
STEP 5.
top of the frame, carefully fitting
the corners of the cover over the
top corners of the frame. Slide the
bottom of the cover downwards
evenly to the base of the frame.
2011 Whitmor, Inc.
©
E
1 ea
Clothes rod
F
1 ea
Male clothes rod
G
D
G
Insert six vertical frame
Note:
can be assembled by one person, it
is recommended that two people
install the cover.
Lift cover up over the
NEED HELP? For help with assembly, or if you are missing a part,
please call Whitmor's Customer Service Department, 1-888-944-8667
between 8 a.m. and 4:30 p.m. (Central Standard Time) Monday
through Friday. Or email: customer_service@whitmor.com
Rev.1 | 09.01.11
G
1 ea
Cover
This product's intended use
is for storing clothes.
Tools Needed: No tools required.
Note:
Closet rods (E & F) are wider
in diameter than frame tubes (B & C)
and are inserted into the larger lower
center holes on (A1 & A2).
Note:
Make sure (E) is placed
through the stickered side of (A2)
first, then slide in (F) from opposite
side. This will help make sure the
parts fit snugly.
C
A2
B
E
B
A1
STEP 3.
To assemble top of
frame, insert two frame tubes (B)
and the clothes rod (E) into one
corner support (A1). Insert center
support (A2) onto the tubes. Insert
two male frame tubes (C) and the
male clothes rod (F) into center
support where frame tubes
intersect. Place another corner
support (A1) onto the end.
Although your clothes closet
Part Reference
A1 F6947
A2 F6953
B F6954
C
F6955
D
F6956
E
F6957
F F6958
G F6959
