STYLE NO:

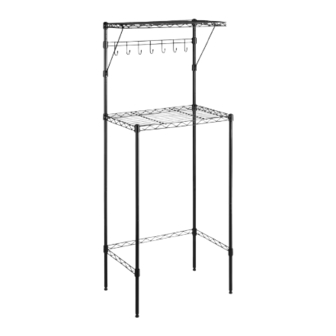

6310-10043 Supreme Over The Fridge Shelf
A
4 ea
Bottom Poles (18.25")
E
1 ea
Bottom Frame
J
K
28 ea
6 ea
Sleeves
Threaded Connectors
(Pre-installed on A & C)
©2022 Whitmor, Inc.
B
2 ea
Top Front Poles (18.625")
F
1 ea
Bottom Shelf
L
4 ea
Feet
(Pre-installed on B & D)
3 Grooves
3 Grooves
7 Grooves
28 Grooves
3 Grooves
C
2 ea
Middle Rear Poles (13.88")
G
1 ea
Top Shelf
M
1 ea
Wall Screw
Part
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
NOTE: Bottom frame (E) and
shelves (F) and (G) are padded
with disks. Throw away the disks
as you unpack the shelves.
This product's intended use is for
storage in all environments in a
home or commercial setting.
The shelf capacity is 30 lb. when
weight is evenly distributed.
Tools Needed: Phillips screwdriver
D
2 ea
Top Rear Poles (23.625")
H
I
2 ea
1 ea
Shelf Supports
Hooks
N
1 ea
Wall Anchor
Reference
F12163
F12164
F12165
F12166
F12167
F12168
F12169
F12170
F12171
F12172
F12173
F12174
F12175
F12176
F12177
O
1 ea
Washer
Page 1
