Whitmor 6037-7037-GM Quick Start Manual

STYLE NO:

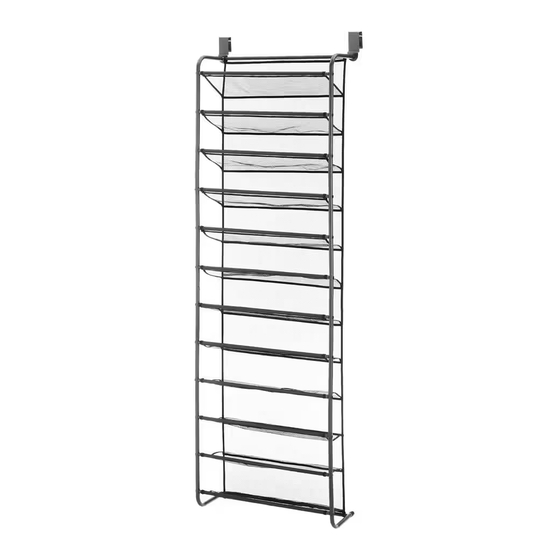

6037-7037-GM 36-Pair Over the Door Shoe Rack
A
14 ea
Horizontal Poles
C
2 ea
Top Vertical Frames
with Push Tabs
Tools Needed: No additional tools required if hanging over the door. Hex wrench provided.
Phillips screwdriver and drill needed if wall-mounting.

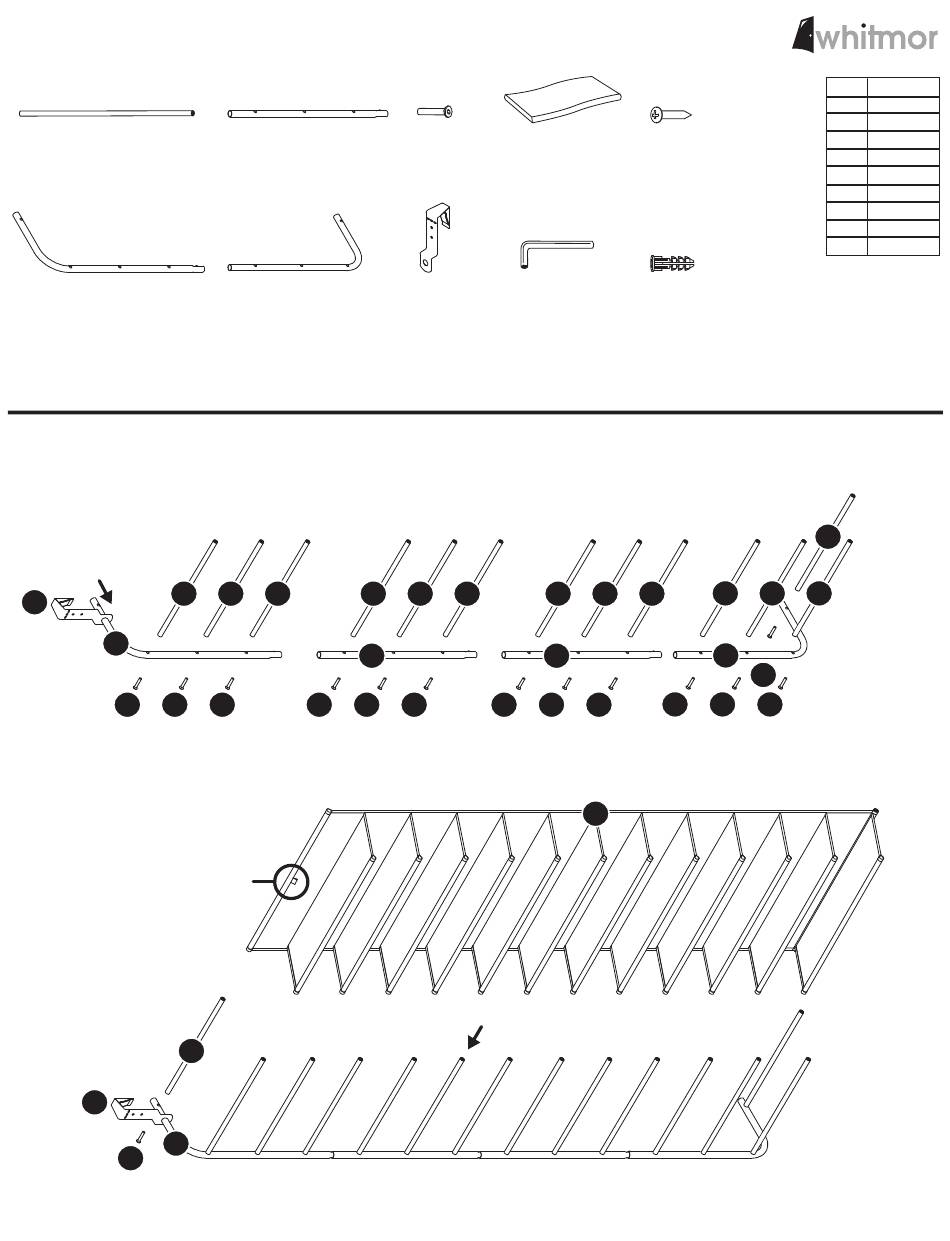

STEP 1:
Place one of each frame sections (C,D) and two of middle frame section (B) on a flat hard surface and clip
together with the push tabs. Attach thirteen horizontal poles (A) to frame sections using thirteen hex screws (E). Tighten with
hex wrench (H). Install over the door bracket (F) by sliding onto the top vertical frame pole (C) past the first hole.
A
F
C
E E
STEP 2:
Attach remaining horizontal pole (A) and hex screw (E) behind the bracket (F). Tighten with hex wrench (H). Unfold
the mesh shelves (G) and install onto horizontal poles.
NOTE:
Make
sure the tag is at
the top of mesh
shelves. This tag
denotes the top
of the rack.
A
F
C
E
2021 Whitmor, Inc.
©
B
4 ea
Middle Vertical Frames
D
2 ea
Bottom Vertical Frames
A A A
B
E E E
E G
28 ea 1 ea
Hex Screws Mesh Shelves
F H
2 ea 1 ea
Over the Door Hex Wrench
Brackets
A A A
B
E E E
I
4 ea
Wall Screws
NOTE: Part (J) is for
optional mounting of frame.
J
4 ea
Wall Anchors
A A A A
D
E
E E E E
G
Part Reference
A F11516
B F11517
C F11518
D F11519
E F11520
F F11521
G F11522
H F11523
I F11524
J F11525
A
A
