Whitmor 6301-5244 Quick Start Manual

6301-5244 Wood Wardrobe
A
1 ea
Bottom left front vertical support
B
1 ea
Bottom middle front vertical support
C
1 ea
Bottom right front vertical support
D
1 ea
Bottom left back vertical support
E
1 ea
Bottom middle back vertical support
F
1 ea
Bottom right back vertical support
R S
2 ea 1 ea
Hanging bar Hanging bar
bracket

Assembly Time:

Less than 1 hour.

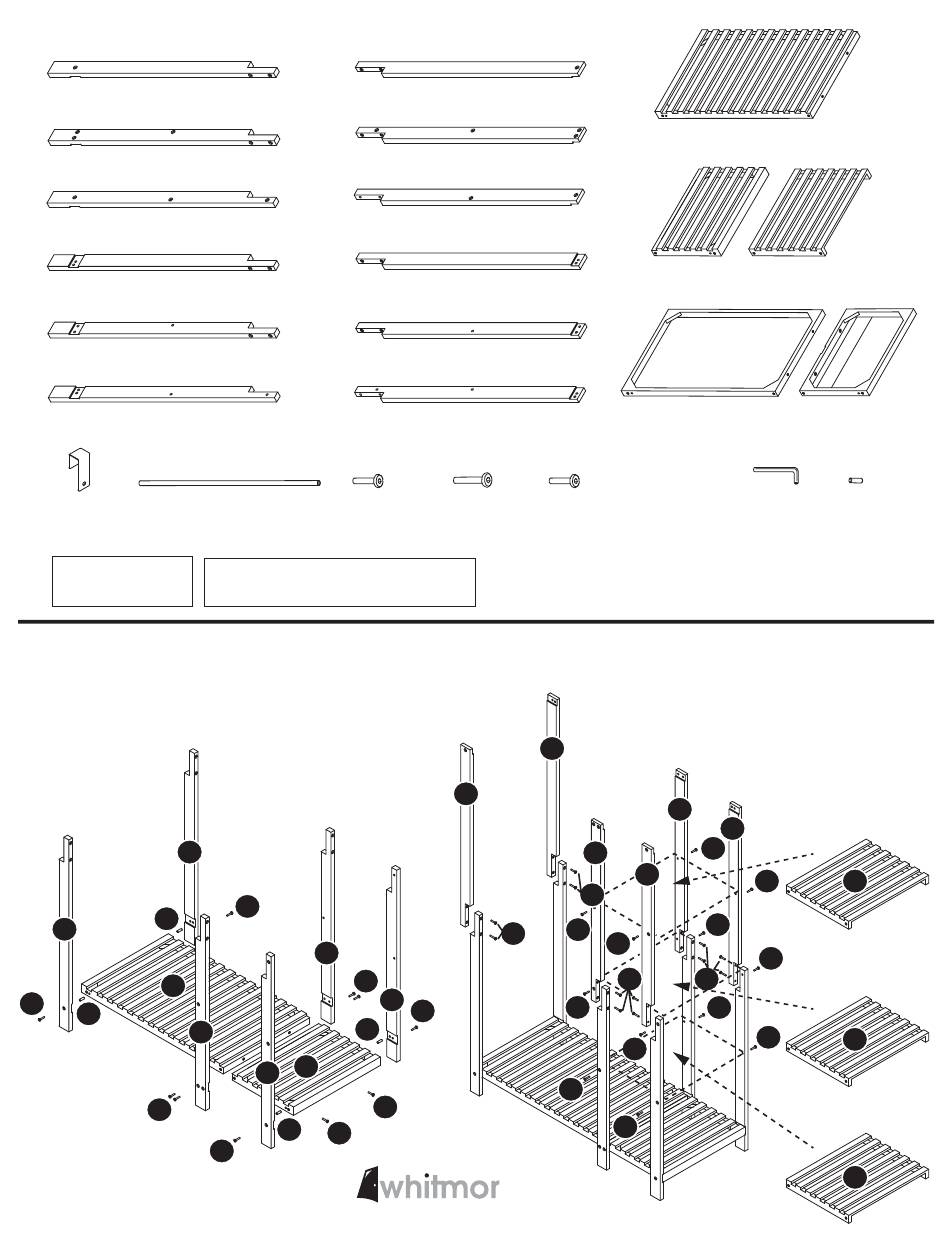

Step 1.

To assemble the lower section, attach bottom long and short
shelves (M & N) together using two hex screws (T). Insert four
wooden pegs (X) into peg holes in shelves (M & N). Attach bottom
front and back vertical supports (A,B,C,D,E & F) using eight hex
screws (T). Tighten all hex screws using hex wrench (W).
D
X
A
M
T
X
B
T
Page 1
G
1 ea
Top left front vertical support
H
1 ea
Top middle front vertical support
I
1 ea
Top right front vertical support
J
1 ea
Top left back vertical support
K
1 ea
Top middle back vertical support
L
1 ea
Top right back vertical support
T
32 ea
short hex screw
This product's intended use is for
garment storage.
T
E
T
F
X
N
C
T
X
T
T
8680 Swinnea Road • Suite 103 • Southaven, MS • 38671
2015 Whitmor, Inc.
©
U V
12 ea 2 ea
long hex screw Hanging bar hex screw
(may already be attached to (S))
Tools Needed: No extra tools required.

Step 2.

To assemble the middle section, attach top front
and back vertical supports (G,H,I,J,K & L) using
twelve hex screws (U). Insert three common short
shelves (O) aligning with holes in vertical supports.
Attach using twelve hex screws (T). Tighten all hex
J
screws using hex wrench (W).
G
H
U
T
U
T
T
T
M
1 ea
Bottom long shelf
N O
1 ea
Bottom short shelf Common short shelf
P
1 ea
Top long frame
W
1 ea
Hex wrench
K
L
T
I
T
T
T
T
U U
T
T
T
T
3 ea
Q
1 ea
Top short frame
X
8 ea
Wooden peg
O
O
O
