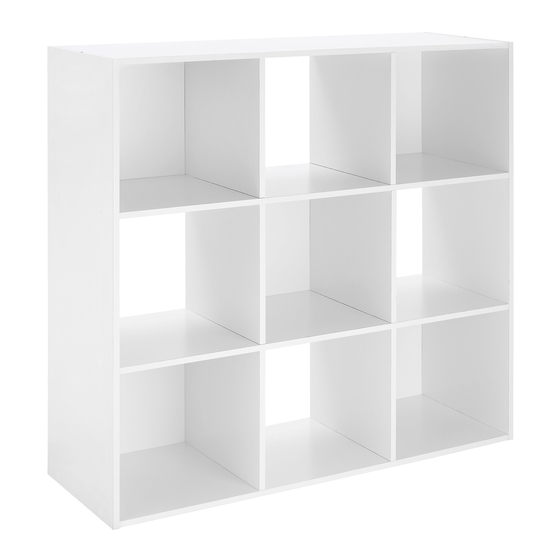

6422-8859-WHT-BB 9-Cube Organizer - White
Care Instructions:
Wipe clean with a dry cloth.
PARTS:
2
2 ea
Center shelves
3
2 ea
Top/bottom shelves
1
4
2 ea
6 ea
Side panels
Middle dividers
WARNING
•
This unit contains small parts which could be a choking hazard for small children. Children should be under adult supervision at all times or
serious injury could occur.
•
Always unload unit prior to moving the unit. The weight of personal belongings can cause the unit to become unstable and either tip or collapse.
Serious bodily injury and/or damage to personal belongings may occur.
•
Do not overload unit. If any shelf, top, or bottom of unit bows or bends, it is overloaded. The shelf, top, or bottom could collapse and cause
serious bodily injury and/or damage to personal belongings.
•
Do not climb or step on the unit. The unit may become unstable and either tip or collapse. Serious bodily injury and/or damage to personal
belongings may occur.
•
Do not mount or attach anything to the sides, rear or front of the unit as this can create a force which can cause the unit to tip.
Serious bodily injury and/or damage to personal belongings may occur.
•
Do not hang this unit on the wall. The product structure is not designed for wall hanging. Serious bodily injury, damage to personal belongings,
and/or damage to the wall may occur.
•
All units must be secured individually to a wall stud using the included safety strap and screws. If wall stud is not accessible consult your local
hardware store for appropriate mounting hardware. Failure to do so may create an unsafe tipping hazard that could
lead to serious bodily injury and/or damage to personal belongings.
•
Follow proper safety procedures when using power tools and ladders (when applicable).
•
We recommend you protect your work surface during assembly to prevent scratching or damage to table tops, wood floors, etc.
2020 Whitmor, Inc.
©
6
5
1 ea
4 ea
Center Back panel
Back panel

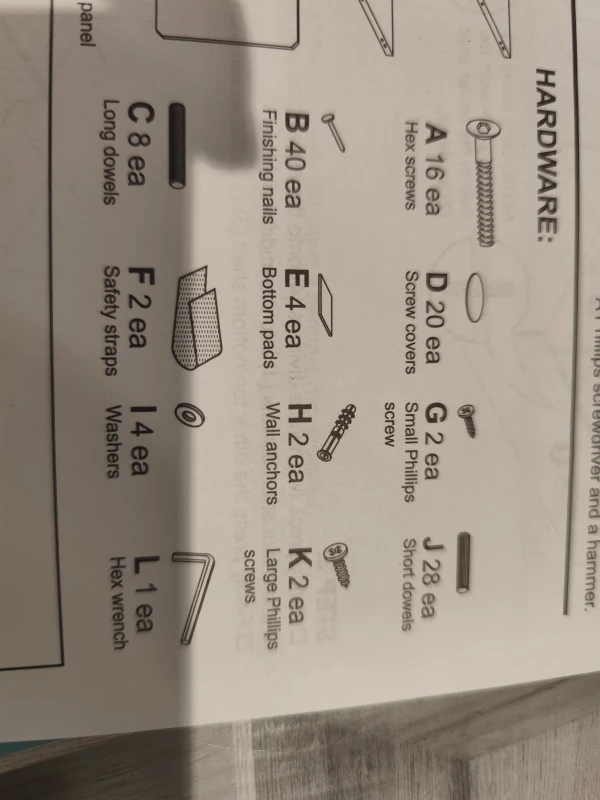

HARDWARE:
A
D
16 ea
Screw covers
Hex screws
B
E
40 ea
Finishing nails
Bottom pads
C
F
8 ea
Long dowels
Safety straps
Part
1
2
3
4
5
6
A
B
C
D
E
F
G
H
I
J
K
L
Tools Needed:
A Phillips screwdriver and a hammer.
G
20 ea
2 ea
Small Phillips
screw
H
2 ea
4 ea
Wall anchors
I
2 ea
4 ea
Washers
Reference
F10416
F10417
F10418
F10419
F10420
F10421
F10372
F10422
F10423
F10407
F10376
F10424
F10425
F10426
F10427
F10428
F10429
F10383
J
28 ea
Short dowels
K
2 ea
Large Phillips
screws
L
1 ea
Hex wrench
Page 1
