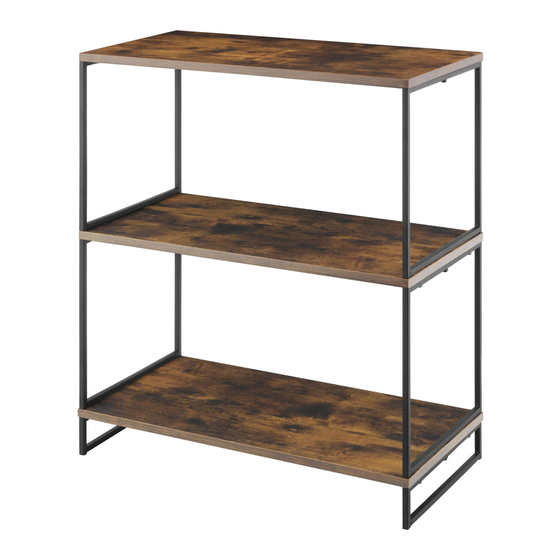

6764-11350 Modern Industrial 3-Tier Shelf
Note: Please assemble on soft surface. Assembly sequence starts upside down with the top of the item.

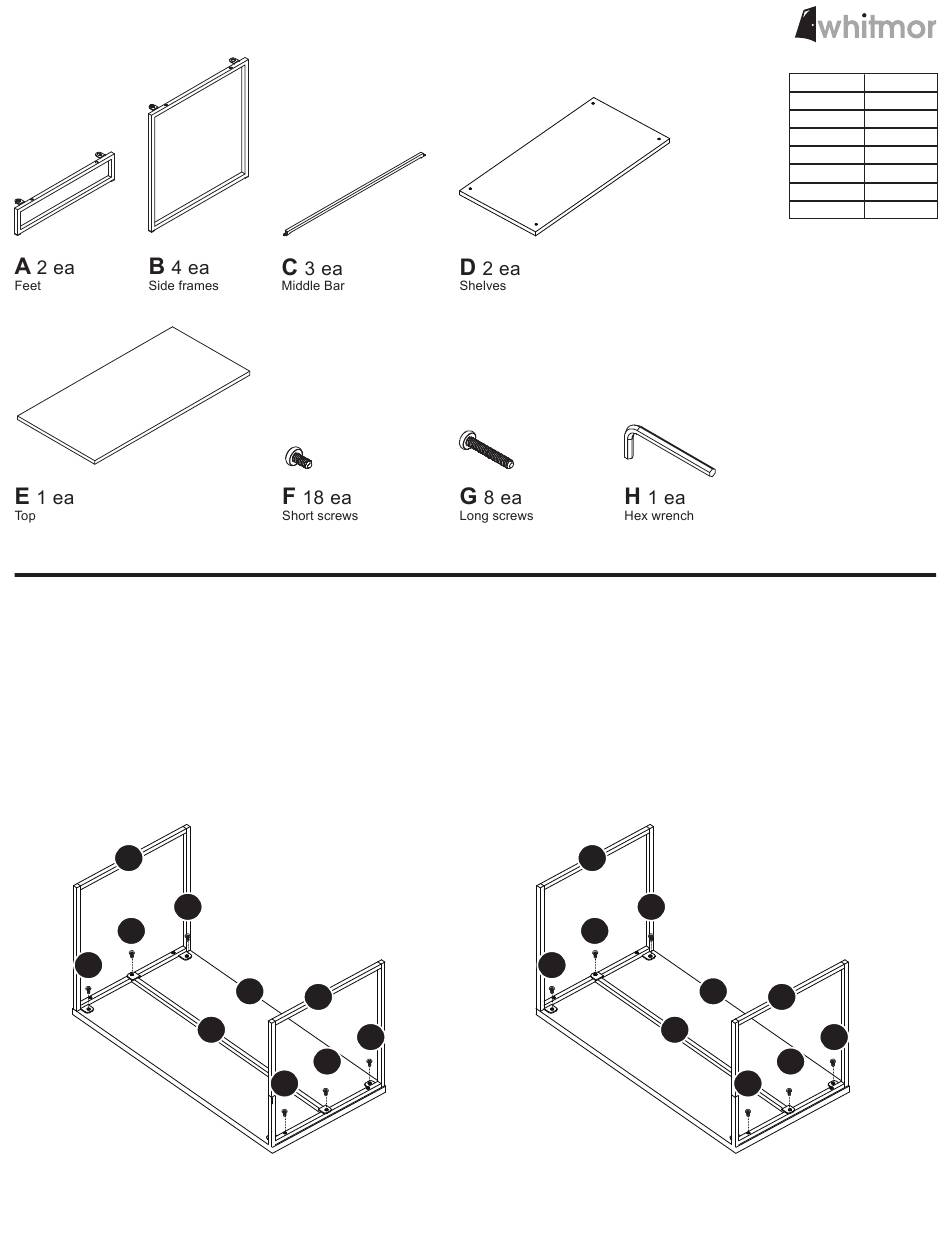

STEP 1: Assemble top tier.
- Place top (E) down with holes facing up.
- Attach two side frames (B) to top (E) using four short screws
(F) and the hex wrench (H).
- Attach middle bar (C) using two short screws (F). Tighten
screws
B
F
F
F
©2020 Whitmor, Inc.
E
B
C
F
F
F
STEP 2: Assemble middle tier.
- Place shelf (D) down with holes facing up.
- Attach two side frames (B) to the shelf (D) using four short
screws (F) and the hex wrench (H).
- Attach middle bar (C) using two short screws (F). Tighten
screws by hand.
B
F
F
F
Part
A
B
C
D
E
F
G
H
No additional tools required.
D
B
C
F
F
F
Reference
F10895
F10896
F10897
F10898
F10899
F10900
F10901
F10902
Page 1
