STYLE NO:
A
2 ea
Top Tubes
B
12 ea
Horizontal Shelf Tubes
©2024 Whitmor, Inc.
C
4 ea
Top Poles
D
2 ea
Wheels
E
4 ea
Bottom Poles
F
2 ea
Locking Wheels
Part
A
B
C
D
E
F
G
H
I
J
No additional tools required.
G
2 ea
Bottom Supports
H
28 ea
Hex Screws
Reference
F11965
F11966
F11967
F11968
F11969
F11970
F11971
F11972
F11973
F11974
I
1 ea
Mesh Shelves
J
1 ea
Hex Wrench
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Whitmor 6037-10491-GM
Summary of Contents for Whitmor 6037-10491-GM
- Page 1 4 ea 2 ea 1 ea Top Tubes Top Poles Bottom Poles Bottom Supports Mesh Shelves 12 ea 2 ea 2 ea 28 ea 1 ea Horizontal Shelf Tubes Wheels Locking Wheels Hex Screws Hex Wrench ©2024 Whitmor, Inc. Page 1...

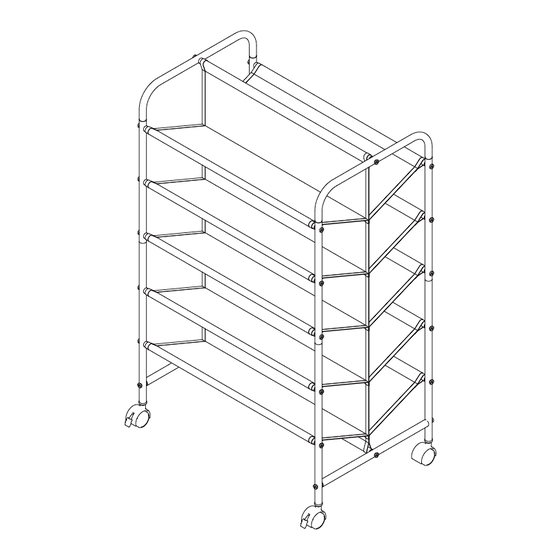

- Page 2 STYLE NO: 6037-10491-GM | 5-Tier Shoe Cart STEP 2: STEP 4: STEP 1: Insert ends of the horizontal shelf Insert four horizontal shelf tubes (B) Start by assembling the side frames. tubes (B) into top tube (A) and into mesh shelves (I).
- Page 3 STYLE NO: 6037-10491-GM | 5-Tier Shoe Cart STEP 6: STEP 5: Connect the side frame to the top and bottom horizontal Insert six horizontal shelf tubes (B) into mesh shelves (I). shelf tubes (B) using two hex screws (H).
- Page 4 8680 Swinnea Road • Suite 103 • Southaven, MS • 38671 NEED HELP? For help with assembly, or if you are missing a part, please call Whitmor’s Consumer Care Team, 1-888-944-8667 between 8 a.m. and 4:30 p.m. (Central Standard Time) Monday through Friday, or email: help@whitmor.com. Visit us online at www.whitmor.com Rev#2 | 03.18.24...
