DoorBird Intercom
Viking W-1000/C-1000B
To Door Box 1 on C-1000B
To Door Box 1 on C-1000B
To Door Box Power on C-1000B
To Door Box Power on C-1000B
Red 12+ to Wiegand Controller
Black 12- to Wiegand Controller
Green Data 0 to Wiegand Controller
White Data 1 to Wiegand Controller
Ground/Drain
For Green LED control
For Red LED control
For Site Code Modification
Connect tamper switch to alarm (optional)
AUX Out for Doorbell
DoorBird NO/COM Relay 1
DoorBird NO/COM Relay 2
Manual Type 6.4.0.5/12-
RF
DoorBird and Viking Dual Intercom
977-W-DB-VIK
Specifications
Access Control
Essex KPT-26TI 26 bit Wiegand Keypad

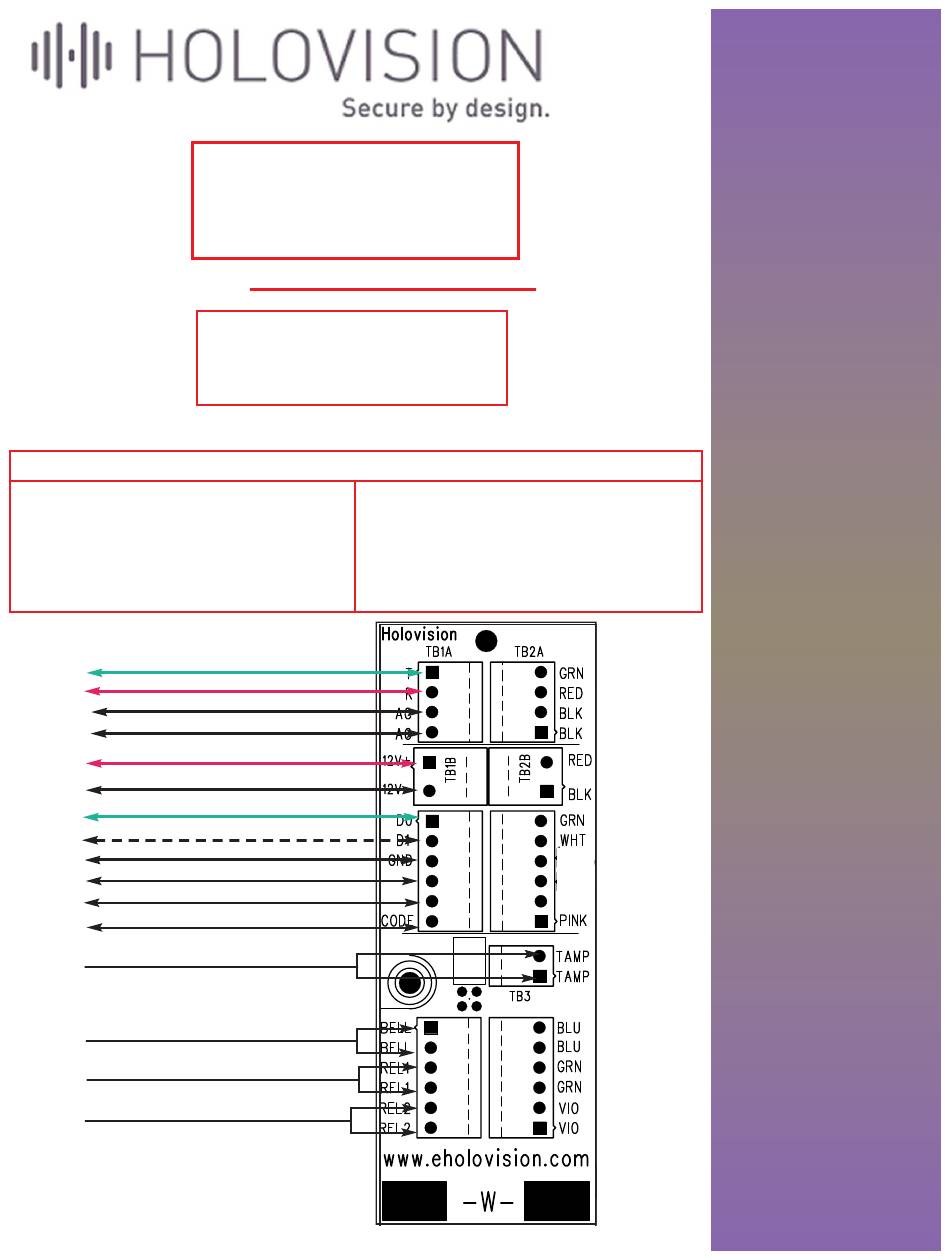

400 Series "W" Junction Board
TAN
LED
BRN
-----
-----
INSTALLATION
INSTRUCTIONS
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax 800-362-0002
