Part#: TG-RS2D40058

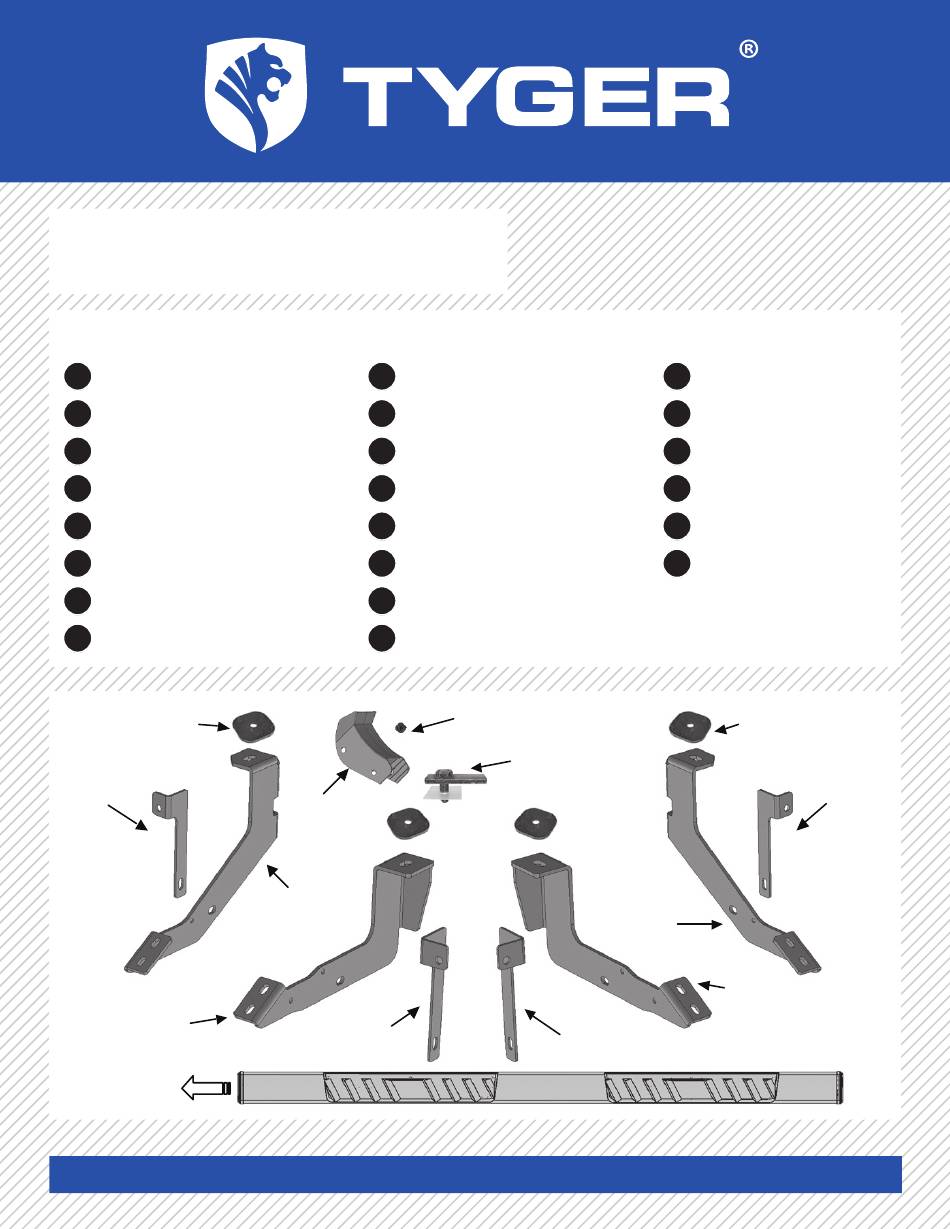

Parts List
Driver/left Side Step
x1
Passenger/right Side Step
x1
Driver/Left Front Mounting Bracket
x1
Passenger/Right Front Mounting Bracket
x1
Driver/Left Rear Mounting Bracket
x1
Passenger/Right Rear Mounting Bracket
x1
Driver/Left Front Support Bracket (long)
x1
PS/Right Front Support Bracket (long)
x1
Spacer Washer
Pass. Right Rear
Support Bracket
(short)
Passenger/Right
Front Mounting
Bracket
Front
Driver/Left
Side Step
Driver/Left Rear Support Bracket (short)
x1
PS/Right Rear Support Bracket (short)
x1
10mm x 35mm Bolt Plates
x4
12-1.75mm x 120mm Gr.10.9 Hex Bolts
x4
12mm x 32mm OD x 3mm Flat Washers
x4
10-1.5mm x 30mm Hex Bolts
x4
10mm x 30mm OD x 2.5mm Flat Washers
x12
8-1.25mm x 25mm Combo Hex Bolts
x8
(4) Plastic
Covers
Passenger/Right
Rear Mounting
Bracket
Passenger/Right Front
Support Bracket (long)
Customer Support: www.TygerAuto.com/Contact
Customer Support 1-866-340-3038
(8) Plastic Clips
(4) 10mm x 35mm
Bolt Plates
Spacer
Washers
Driver/Left Rear
Mounting Bracket
Driver/Left Front
Support Bracket (long)
1/6
TM
RISER
14mm Square Spacer
x4
10mm Plastic Retainers
x4
12mm Lock Washers
x4
10mm Nylon Lock Nuts
x8
Plastic Cover
x4
Plastic Clip
x8
Spacer Washer
Driver/Left Rear
Support Bracket
(short)
Driver/Left Front
Mounting Bracket
®
Advertisement
Related Manuals for Tyger RISER TG-RS2D40058
Summary of Contents for Tyger RISER TG-RS2D40058
- Page 1 Customer Support 1-866-340-3038 RISER ® Part#: TG-RS2D40058 Parts List Driver/left Side Step Driver/Left Rear Support Bracket (short) 14mm Square Spacer Passenger/right Side Step PS/Right Rear Support Bracket (short) 10mm Plastic Retainers Driver/Left Front Mounting Bracket 10mm x 35mm Bolt Plates 12mm Lock Washers Passenger/Right Front Mounting Bracket 12-1.75mm x 120mm Gr.10.9 Hex Bolts...
- Page 2 Before Installation REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED. ON MODELS WITH DEF TANK, SELECT A FLAT, LEVEL AREA FOR INSTALLATION. STEP 1 (Fig 2) Spacer Washer Starting toward the front of the passenger side, remove the factory front body mount bolt with washer, (Figure 1).
- Page 3 Insert Bolt Plate into oval hole. STEP 3 Thread Plastic Retainer down flush against sheet metal Hold the Bracket and hardware up in place and attach to the factory body mount, (Figure 4). Snug but do not tighten hardware at this time.
- Page 4 STEP 6 Attach the at lower end of the front Support Bracket to the front of the Mounting Bracket with (1) 10mm x 30mm Hex Bolt, (2) 10mm Flat Washers, (1) 10mm Lock Washer and (1) 10mm Hex Nut, (Figure 9 & 11). Do not tighten hardware at this time. STEP 7 Select (1) Plastic Bracket Cover and (2) Retaining Clips, (Figure 10).
- Page 5 STEP 9 STEP 12 Remove the tape covering the hole in the inner rocker panel and Select the passenger/right Side Step. Carefully position the Side install (1) Bolt Plate as described in Step 4, (Figure 13). Select the Step onto the (3) Brackets. IMPORTANT: Do not slide, (front to passenger side rear Support Bracket, (short), (Figure 8).
-
Page 6: Complete Installation
STEP 13 Torque Value Level and adjust the Side Step and tighten all hardware. STEP 14 Fastener Class 8.8 Tightening Class10.9 Tightening Size Torque (ft-lbs) Torque (ft-lbs) Repeat Steps 1-13 for the driver/left Side Step installation. 15-16 22-23 31-32 44-45 10mm STEP 15 12mm...
