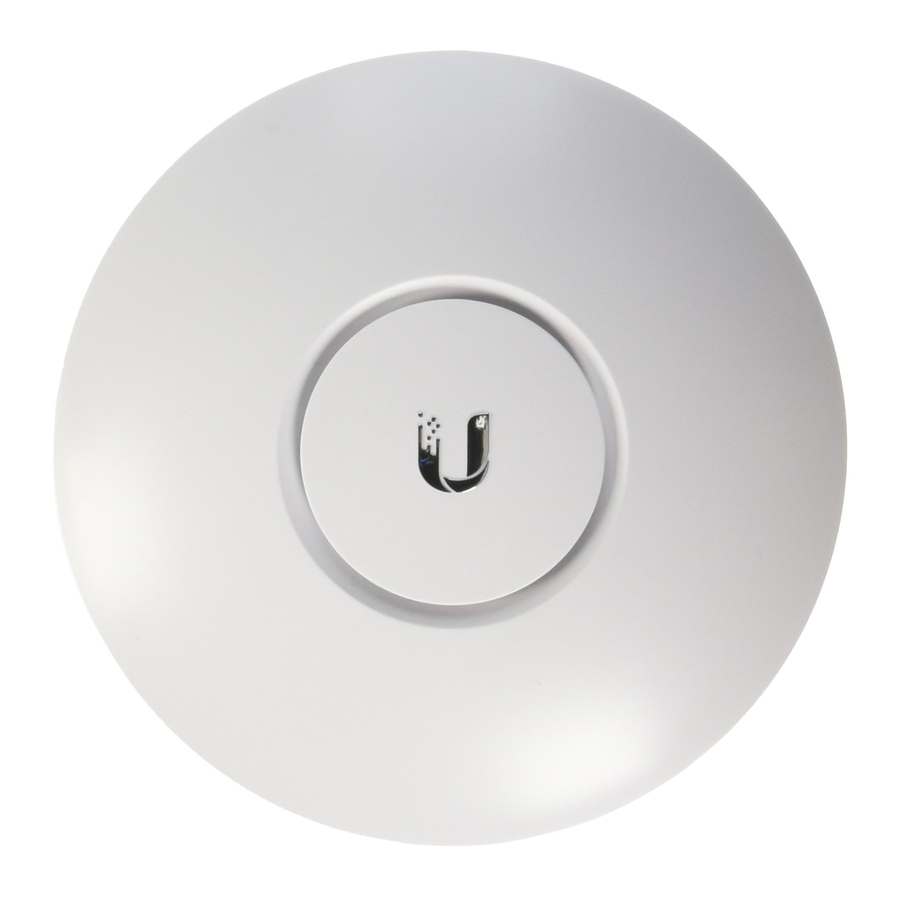

Ubiquiti UniFi AP AC Lite Manual

* Included only in the single-pack of the UAP-AC-LITE.

Installation Requirements

• Phillips screwdriver
• Drill and drill bit (6 mm for wall-mounting or 3 mm for ceiling-mounting)
• Optional: Drywall or keyhole saw (to cut 18 mm hole for Ethernet cable feed)
• Cat5/6 UTP cable for indoor installations

The UAP-AC-LITE requires the UniFi Controller v5.4 or newer, available at: ui.com/download/unifi

System Requirements

• Linux, Mac OS X, or Microsoft Windows 7/8/10
• Java Runtime Environment 1.8 or above recommended
• Web Browser: Google Chrome (Other browsers may have limited functionality.)
• UniFi Controller software v5.4 or newer (available at: ui.com/download/unifi)

Hardware Overview

LED
Ports

Locking Notch
The Locking Notch will be used with the Mounting Bracket to help secure the UniFi AP. (This is described further in the Mounting Bracket section.)

Reset
The Reset button serves two functions for the UniFi AP:

• Restart Press and release the Reset button quickly.
• Restore to Factory Default Settings Press and hold the Reset button for more than five seconds.

Ethernet
This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Power can be provided by a Ubiquiti UniFi Switch with PoE or Gigabit PoE adapter (included with single-pack only).

Cable Feed Plug
If your Ethernet cable feeds along the mounting surface, remove the Cable Feed Plug.

Mounting Bracket

Locking Tab
During installation, the Locking Tab on the Mounting Bracket moves from the Initial Position to the Final Position, where the Locking Tab fits securely into the Locking Notch on the UniFi AP to help prevent theft.

Ceiling Mount
Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

Step 7

Step 8

Step 9

Powering the UniFi AP

Use a UniFi Switch with PoE or a Gigabit PoE adapter for power.

Connecting to a UniFi Switch with PoE

Connect the Ethernet cable from the UniFi AP directly to a PoE port on the UniFi Switch with PoE.

Connecting to the PoE Adapter

1. Connect the Ethernet cable from the device to the POE port of the PoE adapter.
2. Connect an Ethernet cable from your LAN to the LAN port of the PoE adapter.
3. Connect the Power Cord to the adapter, and then plug the Power Cord into a power outlet.

Mounting the PoE Adapter (Optional)

1. Remove the PoE Mounting Bracket from the adapter, place the bracket at the desired location, and mark the two holes.
2. Pre-drill the holes if necessary, and secure the bracket using two fasteners (not included).
3. Align the adapter's slots with the tabs of the PoE Mounting Bracket, and then slide the adapter down.

Software Installation

Download and install the latest version of the UniFi Controller software. Launch it and follow the on-screen instructions. The software and step-by-step instructions in the User Guide are available at: ui.com/download/unifi

After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface. Enter the username and password that you created and click Sign In.

You can manage your wireless network and view network statistics using the UniFi Controller management interface. For information on configuring and using the UniFi Controller software, refer to the User Guide.

Mobile App Installation

Ubiquiti also offers the UniFi app, which is available from the App Store® (iOS) or Google Play™ Store (Android). You can use it to provision a UniFi AP for basic functionality without configuring a UniFi Controller. It also allows seamless provisioning of APs for remote controllers (controllers not on the same Layer 2 network) and easy access to local controllers and those monitored on unifi.ui.com

Specifications

* Only the single-pack of the UAP-AC-LITE includes a PoE adapter.

Safety Notices

1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.

Do not use this product in location that can be submerged by water.

Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer's label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet.
   1. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.
   2. The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.
   3. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment.
   4. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection.
   5. Protective bonding must be installed in accordance with local national wiring rules and regulations.

Limited Warranty

ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.

IMPORTANT NOTE

Radiation Exposure Statement

• This equipment complies with radiation exposure limits set forth for an uncontrolled environment.
• This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.
• This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
