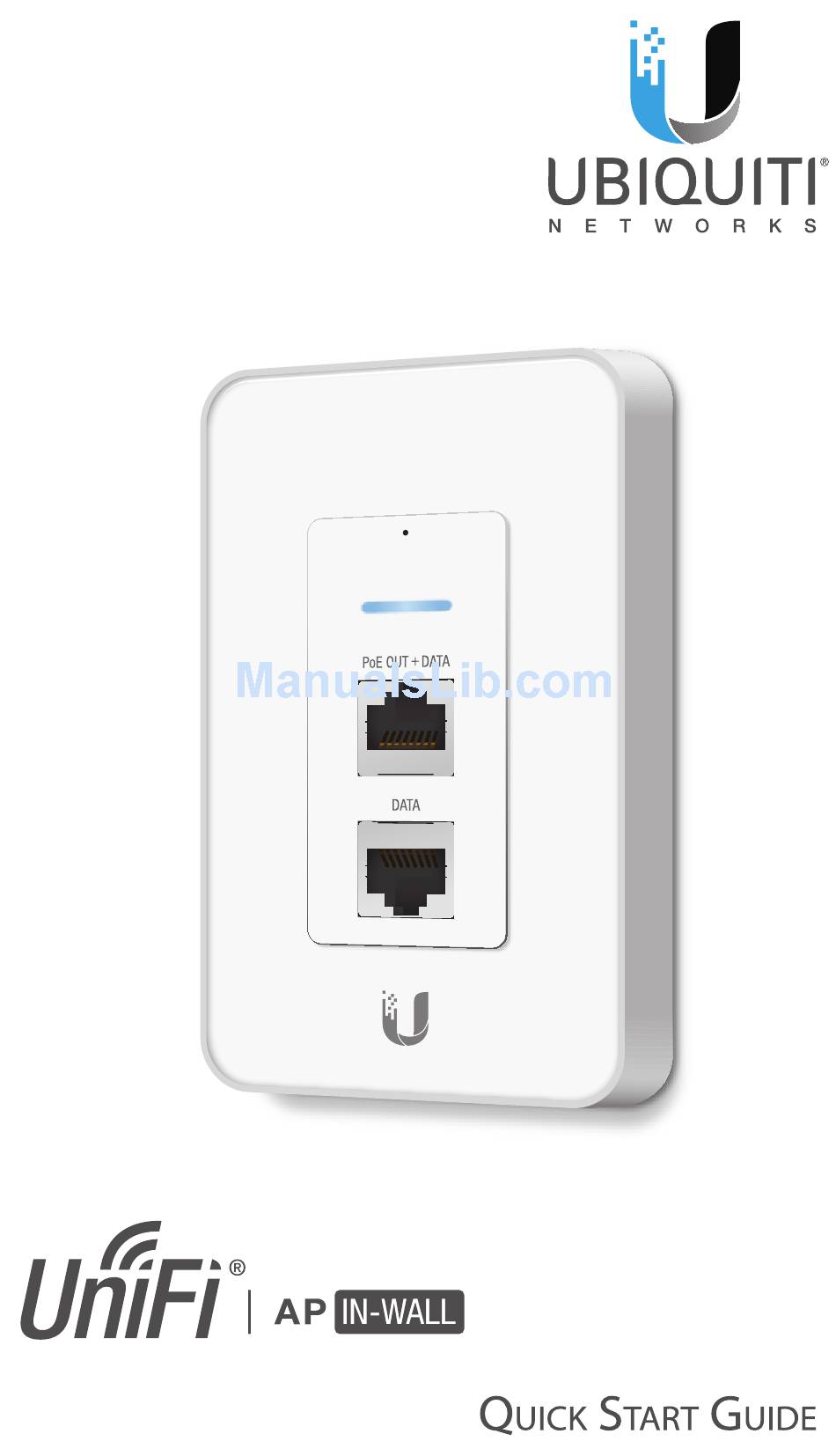

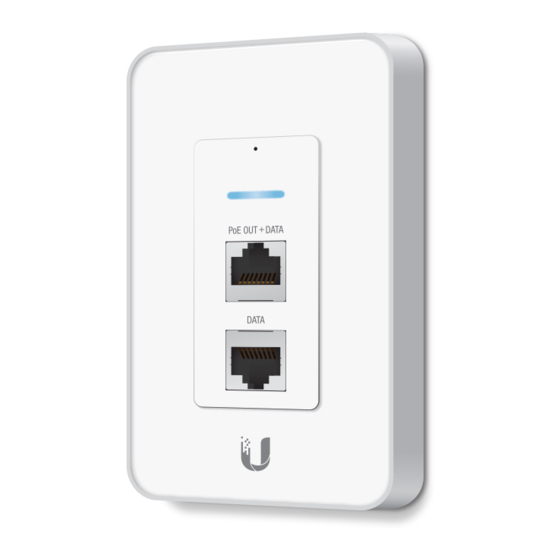

- Page 1 In-Wall Wi-Fi Access Point Model: UAP-IW...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® UniFi® In‑Wall Wi‑Fi Access Point. This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Important: The UAP‑IW requires the UniFi Controller v4.7 or higher, available at: downloads.ubnt.com/unifi Package Contents In-Wall 802.11n Access Point... -
Page 3: Network Topology Requirements
• A management station running the UniFi Controller software, located either on-site and connected to the same Layer‑2 network, or off‑site in a cloud or NOC UAP-IW UAP-AC-PRO UAP-AC Outdoor CURRENT SITE... -
Page 4: Hardware Overview
PoE In + Data 10/100 Ethernet port supports data and PoE. Connect this port to the LAN and DHCP server via an 802.3af switch. Reset The Reset button serves two functions for the UAP-IW: Restart • Press and release the Reset button quickly. •... - Page 5 LED Color Status Factory default, waiting to be integrated. White Initializing. Flashing White Device is busy; do not touch or unplug it. Alternating This usually indicates that a process such White/Blue as a firmware upgrade is taking place. Indicates the device has been successfully Blue integrated into a network and is working properly.
-
Page 6: Hardware Installation
An electrical wall box should be pre‑installed with an Ethernet cable running from the box to an 802.3af switch. 1. Detach the Cover Plate from the UAP-IW. 2. Connect the Ethernet cable in the wall box to the port labeled PoE IN + DATA. - Page 7 3. Place the UAP‑IW in the wall box and properly position the cable to ensure the Ethernet connection is not strained. Note: If the wall box does not have enough room to accommodate the UAP-IW without straining the Ethernet connection, replace the wall box with an open‑end or deeper box.
- Page 8 4. Fasten the top and bottom screws. Adjust the screws to ensure the mounting plate is flush with the wall for proper fitting of the Cover Plate. Note: Do not over‑tighten or rely on the force of the screws to pull the UAP‑IW into the wall box.
- Page 9 5. Attach the Cover Plate. Press the Cover Plate into position until the four mounting clips snap into place. If you are using your own cover plate, secure it with two screws.
-
Page 10: Software Installation
Software Installation Download and install the latest version of the UniFi Controller software at: downloads.ubnt.com/unifi Launch the software and follow the on‑screen instructions. Step‑by‑step instructions are available in the User Guide located on our website: documentation.ubnt.com/unifi After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface. -
Page 11: Specifications
Specifications UAP‑IW Dimensions 114.6 x 70.6 x 28.5 mm (4.51 x 2.78 x 1.12") Weight 117 g (4.127 oz) Networking Interface (3) 10/100 Ethernet Ports Button Reset Operating Band 2.4 GHz Antenna Gain 1 dBi Max. Data Speed 150 Mbps Max. -
Page 12: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. Electrical Safety Information Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. -
Page 13: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... -
Page 14: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 15 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
-
Page 16: Industry Canada
Industry Canada CAN ICES-3(A)/NMB-3(A) This Class A digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. - Page 17 CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste.
- Page 18 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 19: Declaration Of Conformity
NETWORKS Gerät, in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η [Greek] συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας... -
Page 20: Online Resources
©2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
