Summary of Contents for Ubiquiti Uni-fi AP

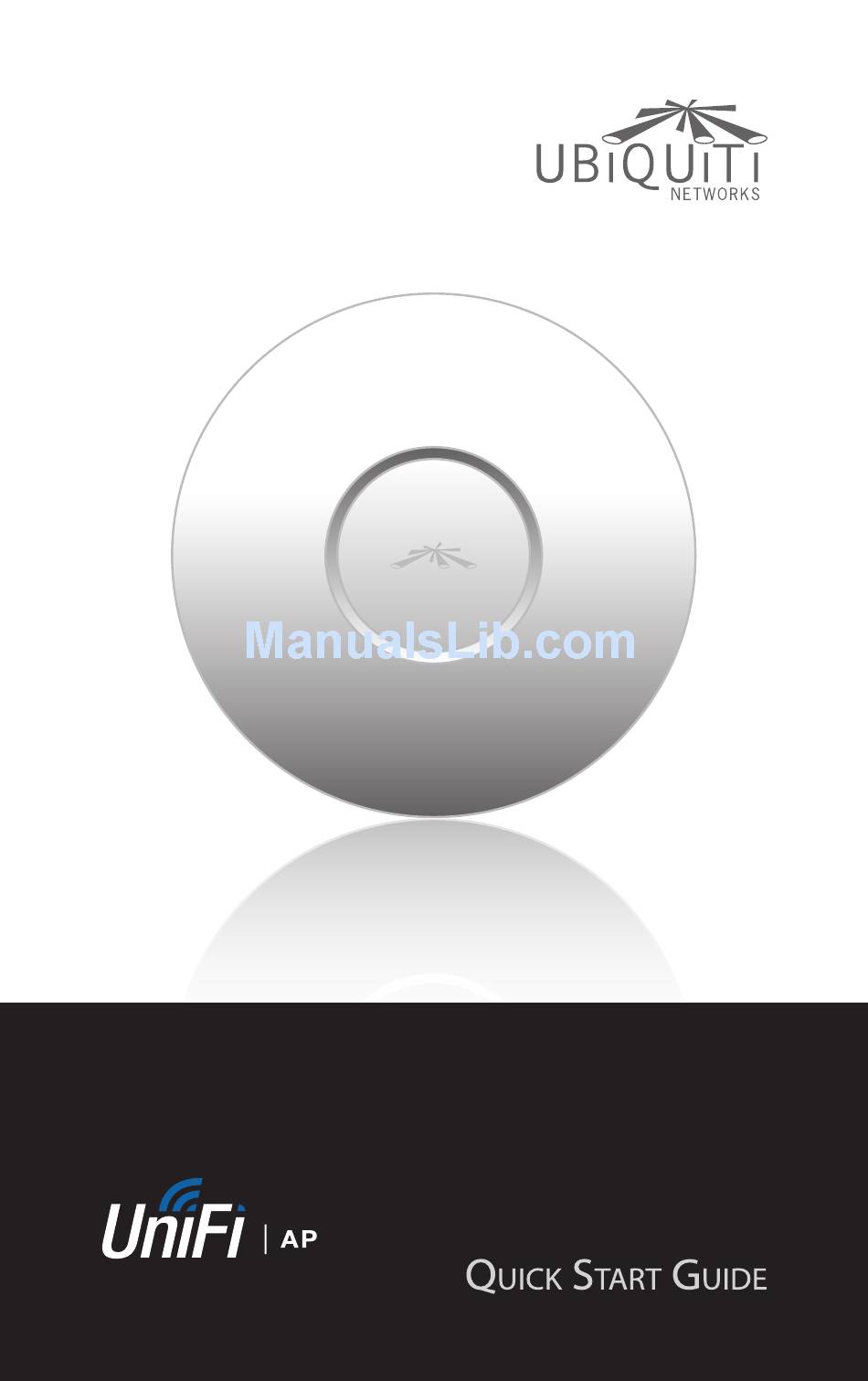

  • Page 1 Enterprise WiFi System...
  • Page 3 Introduction Introduction Thank you for purchasing the Ubiquiti UniFi Enterprise WiFi System. The UniFi Enterprise WiFi System includes the UniFi Controller software that allows you to manage your wireless network using your Web browser. This Quick Start Guide is for use with the following UniFi Enterprise WiFi System Access Point models.

  • Page 4: Package Contents

    UniFi AP Package Contents UniFi AP Wall-Mount Bracket Ceiling-Mount Plate Enterprise WiFi System UniFi Controller 24v PoE Quick Start Guide Power Cord CD with User Guide Adapter M3X30 Flat Head M3 Nut with Tooth M2.9x20 Self Tapping M3x20 Screw Screw (Qty. 3) Washer (Qty.

  • Page 5: Network Topology Requirements

    Network Topology Requirements Network Topology Requirements • A DHCP-enabled network (for AP to obtain an IP as well as for the wireless clients after the deployment) • Access point(s) and the management station computer connected to the same layer-2 network. UniFi AP UniFi AP Switch...

  • Page 6: Hardware Installation

    UniFi AP Hardware Installation The UniFi AP is powered by the included PoE (Power over Ethernet) adapter. To install the AP, perform the following steps: 1. Connect an Ethernet cable to the Ethernet port on the UniFi AP. 2. Connect the power cord to the power port on the PoE Adapter. Connect the other end to of the power cord to a power outlet.
  • Page 7 Hardware Installation 3. Connect the other end of the Ethernet cable to the Ethernet port labeled POE on the PoE Adapter. Note: If you plan to mount the AP on your ceiling, perform the ceiling mount installation steps before connecting the Ethernet cable to the PoE Adapter. Below is an overview of the Power over Ethernet connections.

  • Page 8: Mounting The Access Point

    UniFi AP Mounting the Access Point The UniFi AP can be wall-mounted or mounted on a ceiling. Perform the following steps for the appropriate installation: Wall-Mount 1. Align the wall-mounting bracket with the Wall Mount text facing up. There are horizontal and vertical lines on the bracket to help with orientation.
  • Page 9 Hardware Installation 6. Align the notches on the AP with the notches on the wall-mount bracket. 7. Turn the AP clockwise until it locks into place.

  • Page 10: Ceiling Mount

    UniFi AP Ceiling-Mount 1. Remove the ceiling tile. 2. Align the ceiling-mount plate to the center of the top side of the ceiling tile. 3. Use a 3.5 mm drill bit to drill holes for the three flat head screws. 4.
  • Page 11 The UniFi AP supports Passive PoE which works with the included PoE adapter. If you want to power the UniFi AP from an 802.3af compliant switch, Ubiquiti Networks offers the optional Instant 802.3af Adapter to instantly transform any PoE device into a fully 48V 802.3af compliant product.

  • Page 12: Software Installation

    UniFi AP Software Installation Insert the UniFi Controller software CD into your CD-ROM drive and follow the instructions for your specific computer type. Mac Users 1. Click on the Install icon. 2. Click Continue and follow the on-screen instructions to install the software.
  • Page 13 Software Installation 3. Go to Go > Applications and double-click the UniFi icon. Proceed to Configuring the UniFi Controller Software on page 13. PC Users 1. Launch UniFi-installer.exe. 2. Click Install. 3. If your computer doesn't have Java 1.6 or above installed, you will be prompted to install it.
  • Page 14 UniFi AP 4. Click Next. 5. Be sure the Start UniFi Controller after installation option is checked and click Finish. Note: The UniFi Controller software can also be launched from Start > All Programs.
  • Page 15 Software Installation Configuring the UniFi Controller Software 1. The UniFi Controller software startup will begin. Click Launch a Browser to Manage Wireless Network. 2. Select your language and country. Click Next. 3. Select the devices that you want to configure and click Next.
  • Page 16 UniFi AP 4. The UniFi Installation Wizard will create a secure primary wireless network for your devices. Perform the following steps: a. Enter the wireless network name (SSID) in the Secure SSID field. b. Enter a passphrase to be used for your primary network. c.
  • Page 17 Software Installation 6. Review your settings. Click Back to make changes or Finish to save your settings. Once finished you will be redirected to the management interface via your web browser. Congratulations, your wireless network is now configured. A login screen will appear for the UniFi Controller management interface.
  • Page 18 Pour en savoir plus, rendez-vous sur www.ubnt.com/toughcable Italiano Si consiglia di proteggere le reti dagli ambienti e dagli attacchi ESD più invasivi con il cavo Ethernet schermato-di tipo industriale di Ubiquiti Networks. Per ulteriori informazioni, visitare il sito Web www.ubnt.com/toughcable MA062111...

  • Page 20: Ubiquiti Networks Support

    Phone (9 a.m. - 5 p.m. PST): 408-942-1153 Online Resources Wiki Page: www.ubnt.com/wiki Support Forum: www.ubnt.com/forum Knowledge Base: www.ubnt.com/kb Downloads: www.ubnt.com/support/downloads w w w . u b n t . c o m © 2011 Ubiquiti Networks, Inc. All rights reserved.
