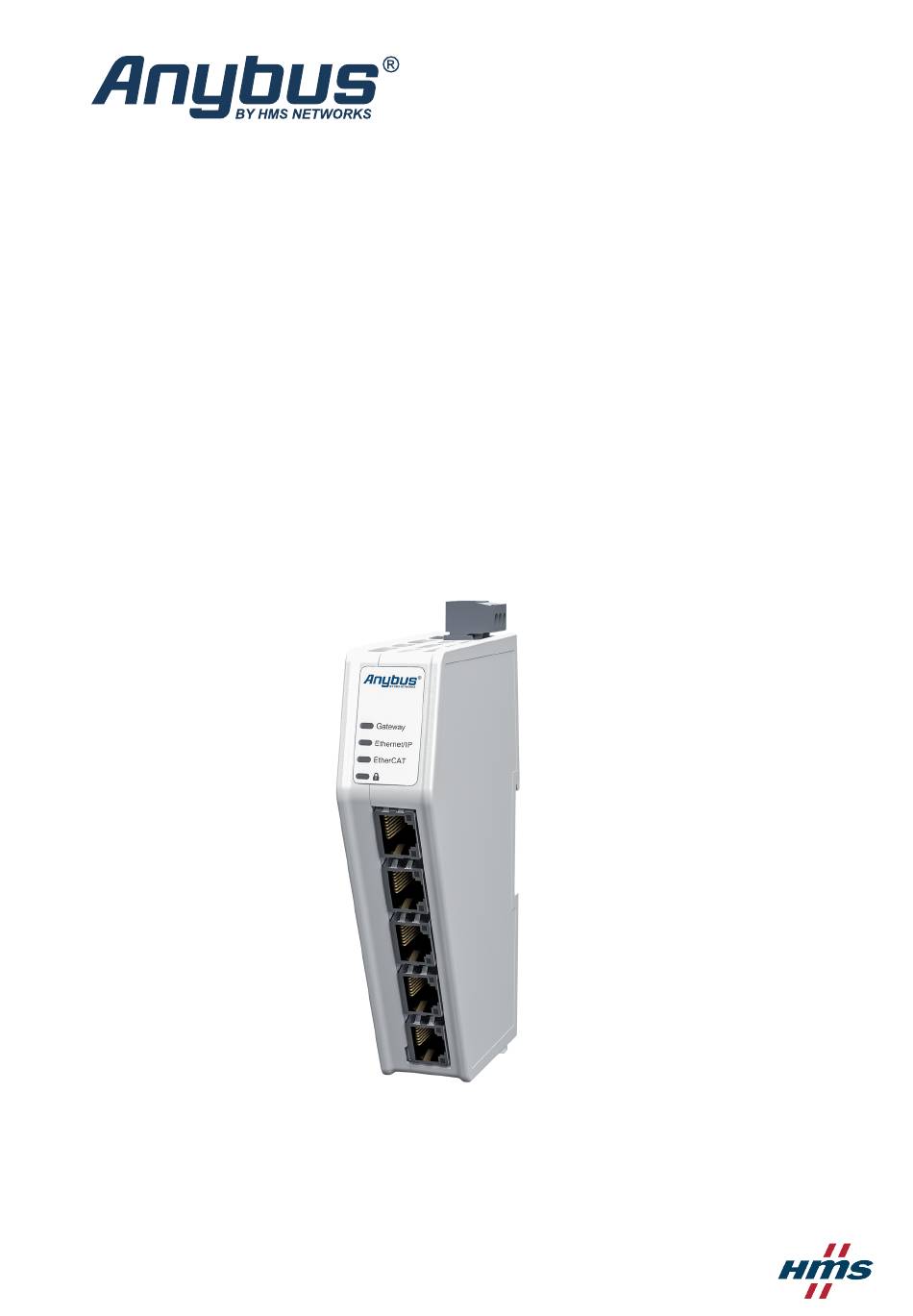

ENGLISH
®
™
Anybus
Communicator
- EtherCAT to EtherNet/IP
USER MANUAL
SCM-1202-224
Version 1.2
Publication date 2024-08-21
