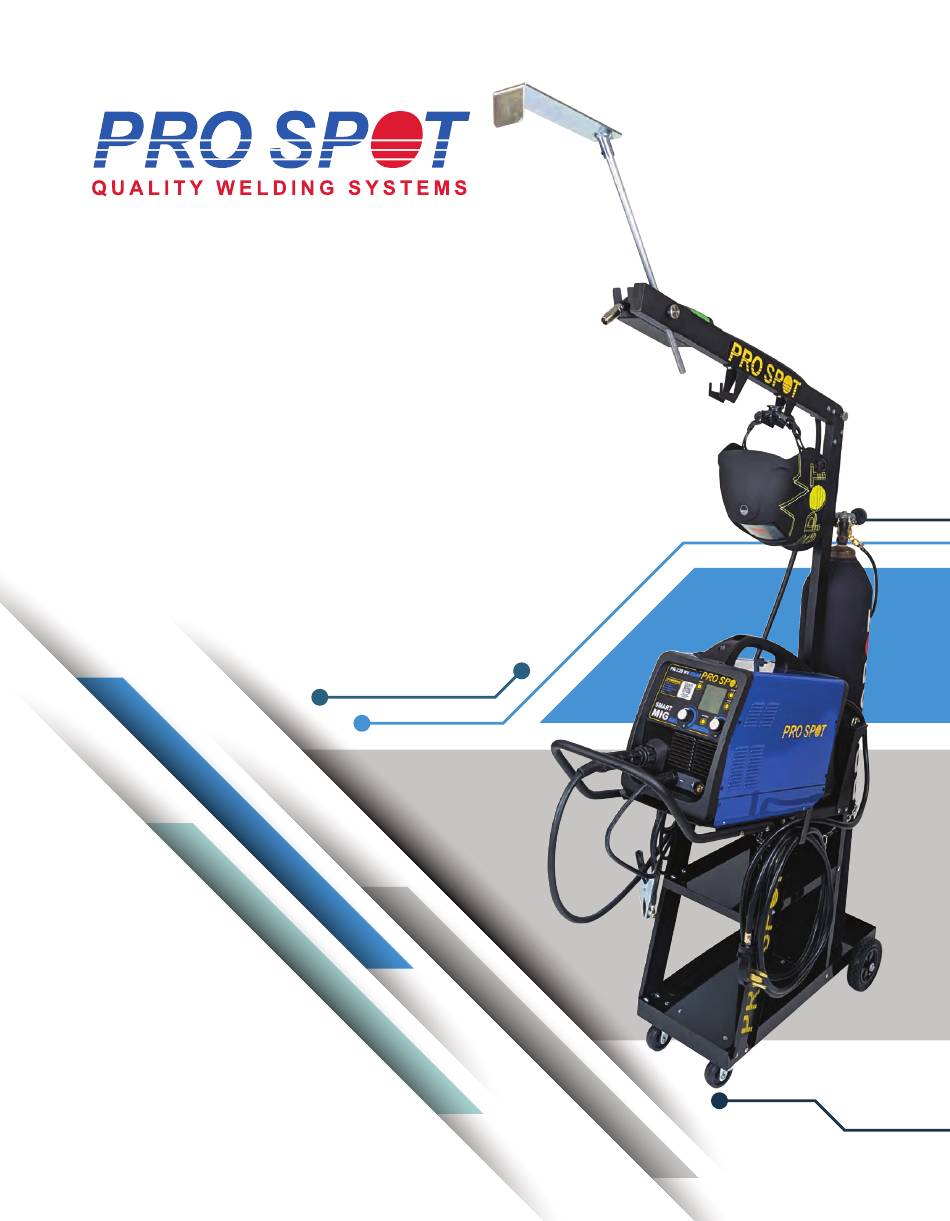

- Page 1 QUICK START GUIDE PR-220MV-COMPLETE MNL-PR-220MV-COMPLETE REV B. Pro Spot International, Inc. 5932 Sea Otter Place Carlsbad, CA 92010 www.PROSPOT.com info@prospot.com +1-760-407-1414...
- Page 2 1.HARDWARE 1. M8x40 bolts, M8 Lock nuts, M8 flat washers 2. M6x25 Phillips button head screws 3. M6x10 Phillips button head screws 4. M5x10 Phillips button head screws 5. M6x10 Phillips pan head screws, M6 flat washers, M6 lock nuts TOOLS FOR ASSEMBLY: 1.
-
Page 3: Cart Assembly
3. CART ASSEMBLY 1. Lift and level the middle shelf. 2. Secure middle shelf on both sides with 4 M6x10 Phillips pan head screws, M6 flat washers, M6 lock nuts. 1. Unfold the cart handle. 2. Secure with 2 M6x25 Phillips button head screws. - Page 4 1. Connect horizontal and 2. Secure with two M6x10 3. Attach torch holster to vertical boom. Phillips button head screws horizontal arm. Secure with on both sides. two M5x10 Phillips button head screws. Assembled Boom. 4. Place the vertical boom into 5.
- Page 5 5. WELDER PLACEMENT AND SETUP 1. Remove 4 side screws from 2. Place PR-220MV in welder 3. Attach to cart with 4 screws PR-220MV before placing tray on cart. (2 on each side). it on the cart. Note: The two pointed-end screws and the two flat-end screws must be reinstalled in their original holes.
- Page 6 9. Loosen the lock knob and 10. Feed the wire into the liner. 11. Close and lock the pull down to release the tensioner by replacing and drive roller tensioner. tightening the lock knob. 12. Close the panel of the 13.
-
Page 7: Final Setup
17. Before attaching the gas regulator, perform a purge of the gas tank. This step requires safety glasses and gloves. 18. Attach gas regulator to the gas bottle 19. Attach the gas line to the gas bottle and turn on the gas valve. - Page 8 7. WELDING SAFETY • Wear #9 Shade Welding Lens. • Use gloves, welding jacket, and proper footwear. • Protect yourself from UV light and sparks. • Follow standard GMAW safety practices. • Prior to performing an overhead weld test, be sure to place the protective cover on the PR-220MV.
- Page 9 For Quick Start Guide MNL-PR-220MV-COMPLETE REV B. Video, Scan: www.PROSPOT.com Pro Spot International, Inc. info@prospot.com 5932 Sea Otter Place +1-760-407-1414 Carlsbad, CA 92010...
