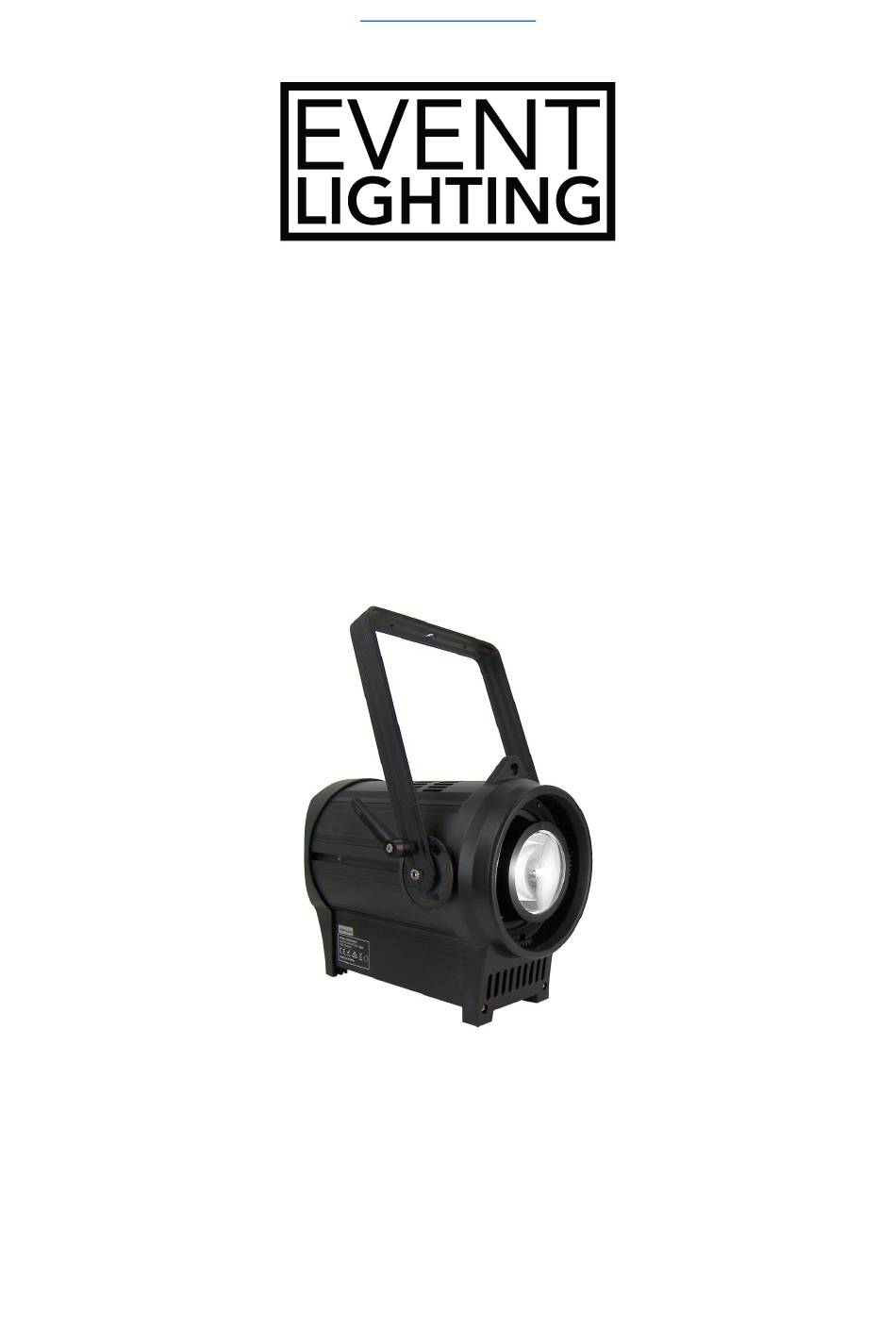

www.event-lighting.com.au
LED Profile Engine
OPERA300VWP
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change
without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any
clarification or information regarding this item.
www.event-lighting.com.au
Ver 1.0
1
Advertisement
Table of Contents
Related Manuals for Event Lighting OPERA300VWP
Summary of Contents for Event Lighting OPERA300VWP
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS 1. Introduction ..................3 2. Safety instructions................4 3. Description..................5 Products features ................5 Overview ....................5 4. Installation ..................6 5. Operation..................7-8 Control board ................. 7-8 DMX modes.................. 9-10 6. Replacing the fuse................10 7.Focus....................10 8. Technical specification..............11... -
Page 3: Introduction
www.event-lighting.com.au 1. Introduction Thank you for purchasing our product. Before carrying out any operations with the product, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. Please strictly follow it. The product conforms to the international standard DMX512 agreement. -
Page 4: Safety Instructions
www.event-lighting.com.au 2. Safety instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 5: Description
www.event-lighting.com.au 3. Description Product features • Good performance of cooling system with the quiet fan • DMX controlled operation, possible work with any commercial DMX512 controller • Rail-type hanging bracket, bracket position can be adjusted • Different dimmer curves and dimmer speed adjustable •... -
Page 6: Installation
www.event-lighting.com.au 4. Installation This device can be mounted in many orientations provided each individual device is secured by the use of correct mounting bracket. Overhead rigging The installation of the device has to be built and constructed in a way that it can hold 10 times the weight for 1hour without any harming deformation. -
Page 7: Power Input
www.event-lighting.com.au Power input This device has an auto-switching power supply work with input voltage range of 100-240V AC, 50/60Hz. Link up to the maximum 15A, Do not exceed this. 5. Operation Control board Press the Menu until one of the following had been displayed: Menu 1st Menu 2nd Menu... - Page 8 www.event-lighting.com.au MEDIUM Medium HIGH High 1000Hz 1200Hz 1500Hz 2000Hz FREQUENCY 4000Hz 8000Hz 16000Hz FULL Fans max Fan control FAN MODE AUTO temperature SILENT Hold DMX HOLD Blackout VERSION V102.3 version RDM UID xxxxxxxxxxxx Uniquer Id POWER ON xxxxxH INFO USAGE TIME LED TOTAL xxxxxH CELSIUS...
-
Page 9: Dmx Modes
www.event-lighting.com.au DMX Modes DMX512 Channel table Modes Value Function 1-CH 2-CH 6-CH 9-CH 000 - 255 Master Dimmer 000 - 255 Master Dimmer fine 000 - 255 Warm white 000 - 255 Warm white fine 000 - 255 Cool white 000 - 255 Cool white fine 000 - 096... -
Page 10: Fuse Replacement
www.event-lighting.com.au 6. Fuse Replacement If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating. Before replacing the fuse, unplug mains lead. Procedure: Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anticlockwise). -
Page 11: Technical Specification
DMX Channel: 1-CH/2-CH/6-CH/9-CH Optional Control system: DMX512 signal Display Screen: 4-Button LCD Screen IP Rating: IP23 Ambient Temp.: -20℃～35℃ Product size: 604x320x463mm Weight: 11.5kg WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
