www.event-lighting.com.au

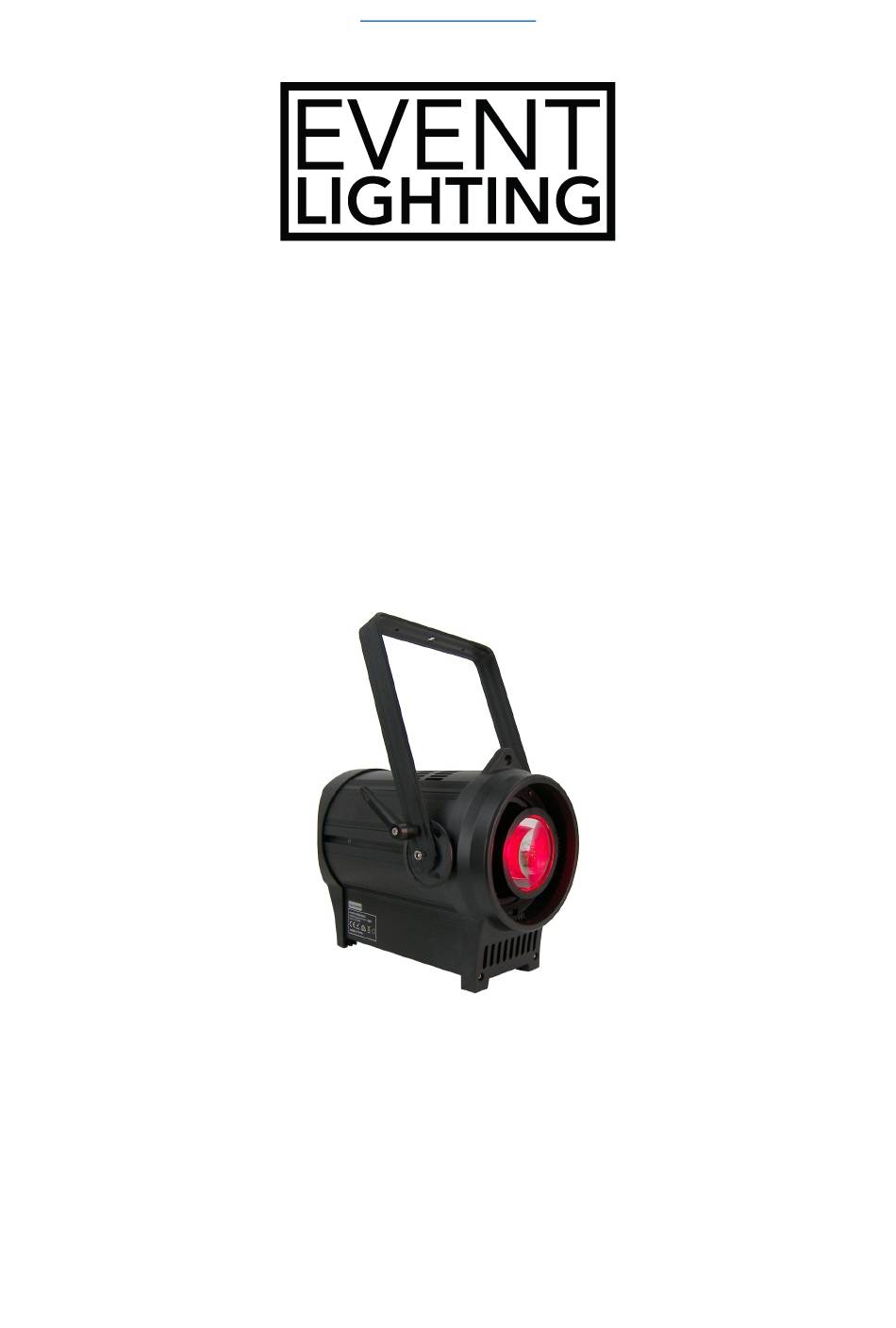

LED Profile Engine
OPERA300FCP
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change
without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any
clarification or information regarding this item.
www.event-lighting.com.au
Ver 1.0
1
Advertisement
Table of Contents
Related Manuals for Event Lighting OPERA300FCP
Summary of Contents for Event Lighting OPERA300FCP
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS 1. Introduction ..................3 2. Safety instructions................4 3. Description..................5 Products features ................5 Overview ....................5 4. Installation ..................6 5. Operation..................7-8 Control board ................. 7-8 DMX modes.................. 9-10 6. Replacing the fuse................10 7.Focus....................10 8. Technical specification..............11... -
Page 3: Introduction
www.event-lighting.com.au 1. Introduction Thank you for purchasing our product. Before carrying out any operations with the product, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. Please strictly follow it. The product conforms to the international standard DMX512 agreement. -
Page 4: Safety Instructions
www.event-lighting.com.au 2. Safety instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 5: Description
www.event-lighting.com.au 3. Description Product features • Good performance of cooling system with the quiet fan • DMX controlled operation, possible work with any commercial DMX512 controller • Rail-type hanging bracket, bracket position can be adjusted • Different dimmer curves and dimmer speed adjustable •... -
Page 6: Installation
www.event-lighting.com.au 4. Installation This device can be mounted in many orientations provided each individual device is secured by the use of correct mounting bracket. Overhead rigging The installation of the device has to be built and constructed in a way that it can hold 10 times the weight for 1hour without any harming deformation. -
Page 7: Power Input
www.event-lighting.com.au Power input This device has an auto-switching power supply work with input voltage range of 100-240V AC, 50/60Hz. Link up to the maximum 15A, Do not exceed this. 5. Operation Control board Press the Menu until one of the following had been displayed: Menu 1st Menu 2nd Menu... - Page 8 www.event-lighting.com.au SQUARE LAW INV SQUARE S-CURVE Fade off SPEED MEDIUM Medium HIGH High 1000Hz 1200Hz 1500Hz FREQUENCY 2000Hz 4000Hz 8000Hz FULL Fans max Fan control by FAN MODE AUTO temperature SILENT Hold DMX HOLD Blackout VERSION V102.3 version RDM UID xxxxxxxxxxxx RDM Uniquer Id POWER ON...
-
Page 9: Dmx Modes
www.event-lighting.com.au DMX Modes DMX512 Channel table Modes value function 1-CH 2-CH 6-CH 7-CH 11-CH 17-CH 9H-CH 000 - 255 Master Dimmer 000 - 255 Master Dimmer fine 000 - 255 000 - 255 Red fine 000 - 255 Green 000 - 255 Green fine 000 - 255 Blue... -
Page 10: Fuse Replacement
www.event-lighting.com.au 056 - 060 8000K 061 - 065 10000K 066 - 070 Red dimmer 071 - 075 Green dimmer 076 - 080 Blue dimmer 081 - 085 Amber dimmer 086 - 090 Cyan dimmer 091 - 095 Lime dimmer 096 - 255 No function 000 - 255 Strobe slow to fast... -
Page 11: Technical Specification
DMX Channel: 1-CH/2-CH/6-CH/7-CH/11-CH/17-CH/9H-CH Optional Control system: DMX512 signal Display Screen: 4-Button LCD Screen IP Rating: IP23 Ambient Temp.: -20℃～35℃ Product size: 604x320x463mm Weight: 11.5kg WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
