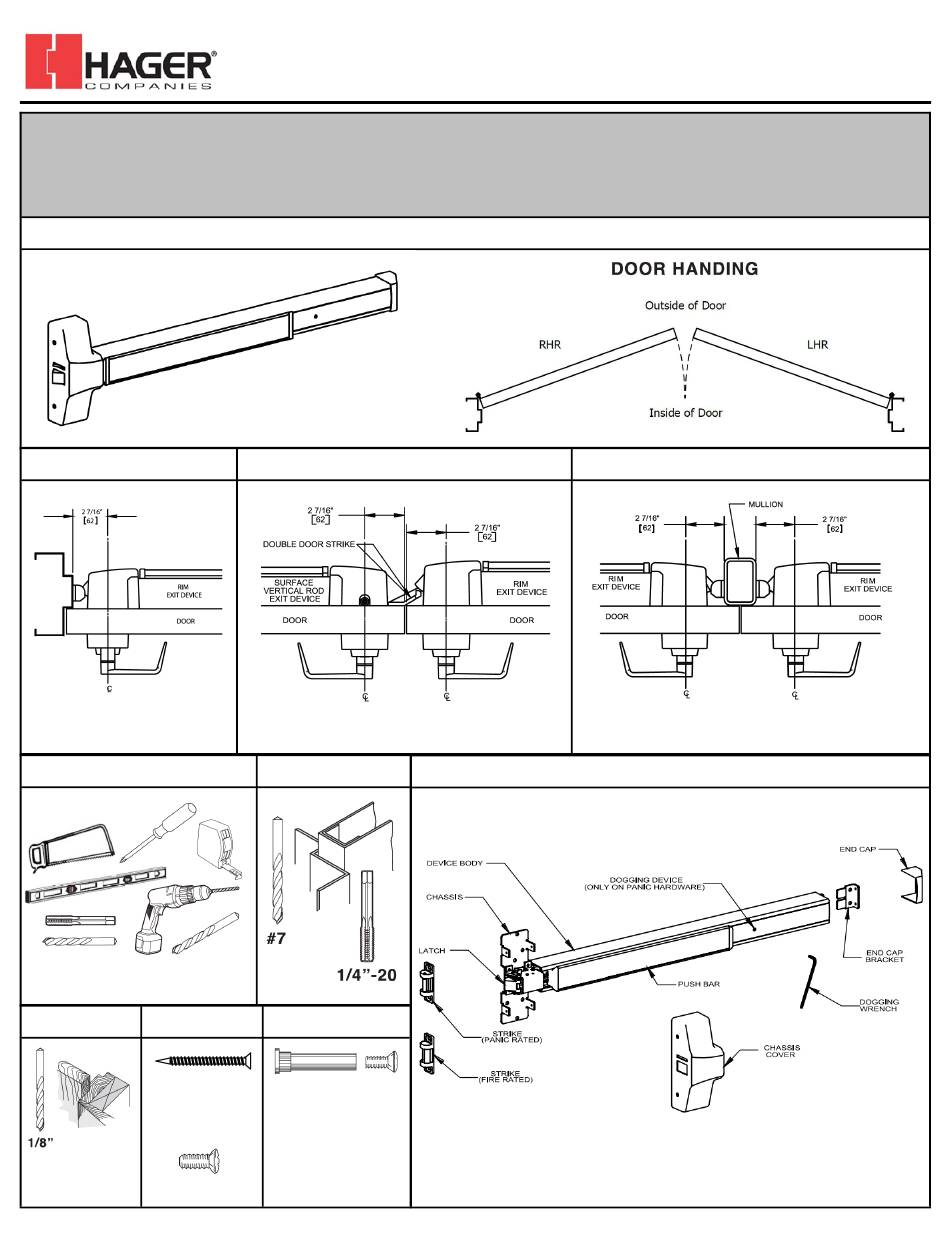

DEVICES COVERED IN THESE INSTRUCTIONS
4500 RIM Exit Device
4500 RIM Fire-rated Exit Device
OVERVIEW
SINGLE DOOR
TOOLS REQUIRED
WOOD
SCREWS
For wood, drill 1/8"
hole
Machine Screws
#7 Drill, 1/4"-20 Tap
Rev 3, Rev Date: 12/12/24
Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com
DOUBLE DOOR
METAL
COMPONENT PARTS
SLEEVE NUTS
Drill 5/16" thru from
device side, Drill 3/8"
from other side (pull side)
Check building and fire
codes to see if your appli-
cation requires the use of
sleeve nuts and bolts
4500 SERIES RIM EXIT DEVICE
INSTALLATION INSTRUCTION
DOUBLE DOOR WITH MULLION
I-ED00789
Page 1 of 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for hager 4500 Series
Summary of Contents for hager 4500 Series
- Page 1 #7 Drill, 1/4”-20 Tap Rev 3, Rev Date: 12/12/24 Page 1 of 3 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
- Page 2 1/4” -20 ma- chine screws (4) • Wood Door surface mounting: #12 wood screws (4) Rev 3, Rev Date: 12/12/24 Page 2 of 3 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
- Page 3 Figure 7-3 turn the key clockwise to dog the device. Turn the key counter-clockwise to release the dogging. Figure 7-5 Rev 3, Rev Date: 12/12/24 Page 3 of 3 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
