DEVICES COVERED IN THESE INSTRUCTIONS

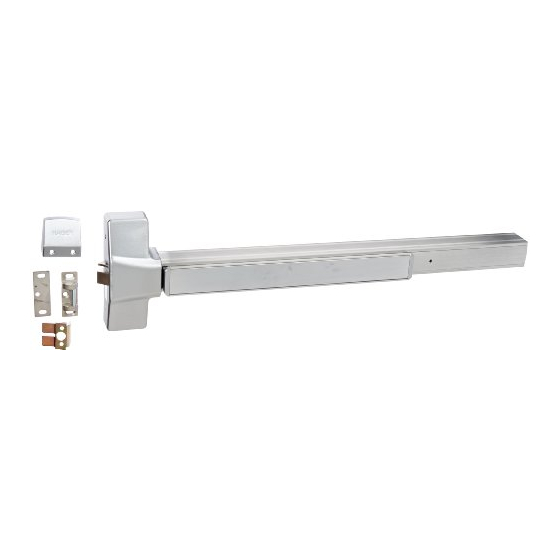

4500 Rim exit device
4500 Fire Exit Rim exit device
OVERVIEW
SINGLE DOOR
TOOLS REQUIRED
WOOD
SCREWS
REV 2
DOUBLE DOOR
METAL
SEX BOLTS
4500 Series Rim Exit Device
Installation Instructions
DOUBLE DOOR WITH MULLION
COMPONENT PARTS
Grade 1
I-ED00789
Page 1 of 3
Advertisement
Related Manuals for hager 4500 Series
Summary of Contents for hager 4500 Series
- Page 1 4500 Series Rim Exit Device Installation Instructions Grade 1 I-ED00789 DEVICES COVERED IN THESE INSTRUCTIONS 4500 Rim exit device 4500 Fire Exit Rim exit device OVERVIEW SINGLE DOOR DOUBLE DOOR DOUBLE DOOR WITH MULLION COMPONENT PARTS TOOLS REQUIRED METAL WOOD...
- Page 2 4500 Series Rim Exit Device Installation Instructions Grade 1 I-ED00789 1. CUT EXIT DEVICE TO LENGTH 2. MARK DOOR AND DRILL MOUNTING HOLES The exit device comes in two sizes: one sized for a 36” door width Measure center line of exit device, typically 40” from finished floor. Fold and apply template to door and up against stop.
- Page 3 Required hardware for cylinder dogging: One (1) mortise cylinder, lengths 1-1/8”, 1-1/4”, or 1-3/8”, one (1) standard cam .723” (18 mm) screw center to top of cam, one (1) 11/32” (8.7 mm) stock solid collar, one (1) cash box nut, and one (1) Hager cylinder dogging kit.
