Regular Arm
Installation
See Page 2
Left Hand Door - LH
Right Hand Reverse - RHR
Parallel Arm
Installation
Left Hand Door - LH
Right Hand Reverse - RHR
Installation
See Page 5
Left Hand Door - LH
Right Hand Reverse - RHR
• These door closers should NOT be installed on the exposed side (weather side) of exterior doors.
TOOLS REQUIRED
COMPONENT PARTS
BACKCHECK VALVE
LATCH VALVE
CLOSER BODY
SWEEP VALVE
Rev 5, Revision Date: 03/25/24
NOTE: For special applications, a separate door
and frame preparation template is packed with
these instructions. Use this instruction sheet for
installation sequence and closer adjustments only.
•
Dimensions are based on standard doors and
See Pages
frames with 1/8" clearance, 5/8" stops, and
3 & 4
square edge doors.
•
Door and frame must be properly reinforced.
•
Non-Handed Door Closers.
NOTE: For Top Jamb
Top Jamb
Application
METAL
#7
POWER ADJUSTMENT SHAFT
PARALLEL
ARM BRACKET
139 Victor Street, St. Louis, MO 63104 • (800) 325-9995
An incorrectly installed or
improperly adjusted door closer
can cause property damage or
personal injury. These installation
instructions should be followed
to avoid the possibility of
misapplication or misadjustment.
A longer connecting
rod is required for
Reveal
reveals greater
than 4" (102 mm)
WOOD
3/16"
1/4"- 20
REGULAR ARM/TOP
JAMB SHOE
MAIN ARM
FOREARM
CONNECTING ROD
SCREW
CLOSER ARM

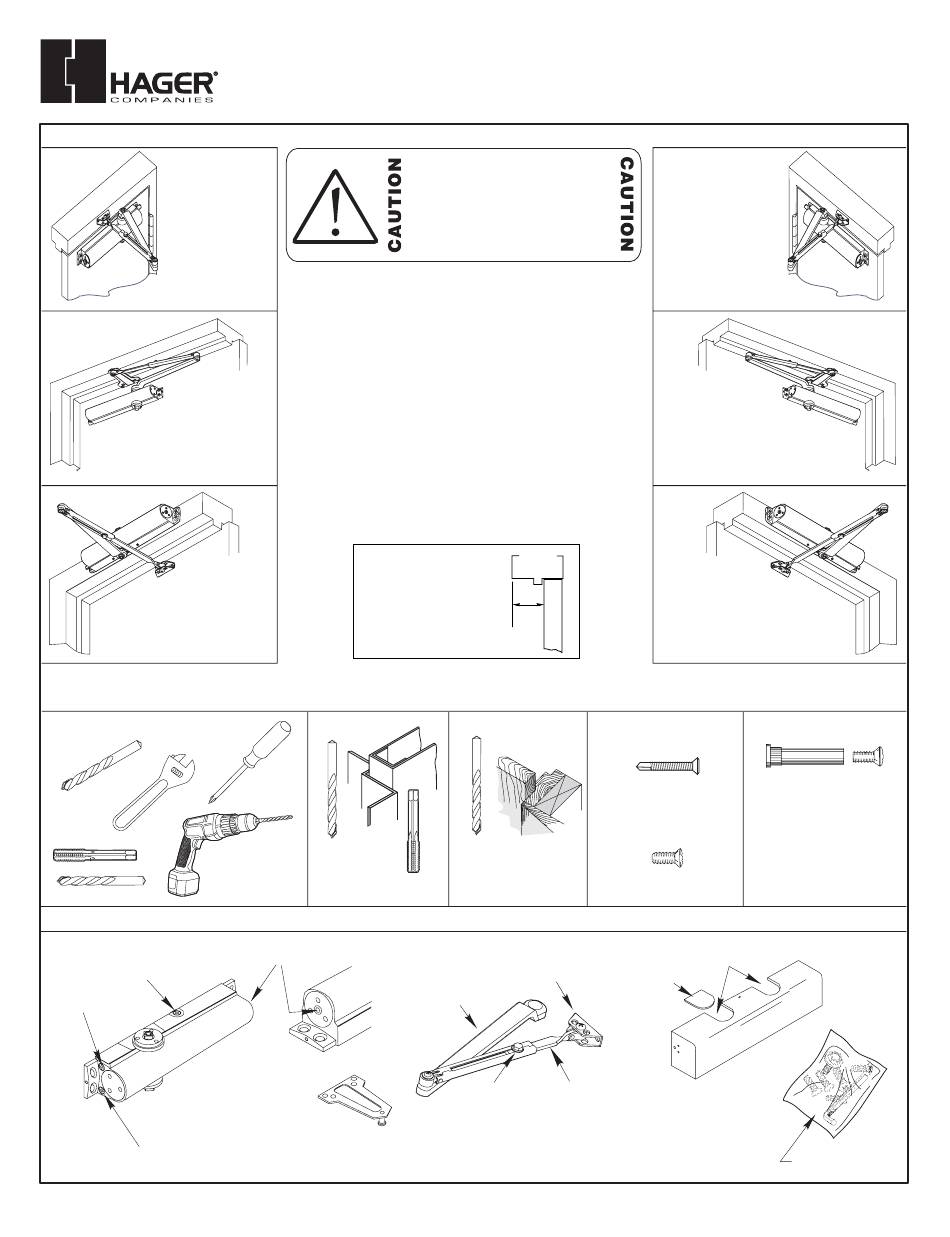

5200 Series Door Closer
Installation Instructions
Regular Arm
Installation
See Page 2
Right Hand Door - RH
Left Hand Reverse - LHR
Parallel Arm
Installation
See Pages
3 & 4
Right Hand Door - RH
Left Hand Reverse - LHR
Top Jamb
Installation
See Page 5
Right Hand Door - RH
Left Hand Reverse - LHR
Self Drilling Screws
Sleeve Nut and Bolt
Wood and Metal
Drill 9/32" thru from Closer Side
For wood, drill 3/16" hole
3/8" Drill other Side
Machine Screws
Check building and fire codes to
see if your application requires
#7 Drill, 1/4"- 20 Tap
the use of sleeve nuts and bolts.
INSERT CUTOUTS
COVER INSERT
CLOSER COVER
I-CL00187
SCREW PACK
Advertisement
Related Manuals for hager 5200 Series
Summary of Contents for hager 5200 Series
- Page 1 5200 Series Door Closer Installation Instructions I-CL00187 An incorrectly installed or Regular Arm Regular Arm improperly adjusted door closer Installation Installation can cause property damage or See Page 2 See Page 2 personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.
-
Page 2: Installation Instructions
5200 Series Door Closer - Regular Arm Installation Instructions I-CL00187 1. PARTS 2. MARK AND DRILL HOLES ( Right Hand Shown) 5-1/2" 1-3/4" (44 mm) (140 mm) Select hand of door and degree Door Opening Dimension “A” of door opening. Fold template 1-3/8"... - Page 3 5200 Series Door Closer - Parallel Arm Installation Instructions I-CL00187 1. PARTS 2. MARK AND DRILL HOLES ( Right Hand Shown) 2-3/4" (Center on Hinge) 3/8" (70 mm) (10 mm) 2" Top of Door Frame (51 mm) 1/2" 7/16" 3-1/2"...
- Page 4 5200 Series Door Closer - Parallel Arm Installation Instructions I-CL00187 6. INSTALL MAIN ARM AND CONNECTING ROD Slide connecting rod into forearm of main arm. 1-1/2" 1-1/2" (38 mm) (38 mm) While holding arm in this position, tighten down forearm screw.
- Page 5 5200 Series Door Closer - Top Jamb Arm Installation Instructions I-CL00187 1. PARTS 2. MARK AND DRILL HOLES (Right Hand Shown) 12" Door Opening Dimension “A” Select hand of door and the degree of door (305 mm) 3/4" 7-1/2" To 100 opening.
- Page 6 5200 Series Door Closer - Adjustments Installation Instructions I-CL00187 ADJUSTMENTS (USE 5/32" HEX WRENCH FOR THESE ADJUSTMENTS) SWEEP SPEED LATCH SPEED BACKCHECK OPTIONAL DELAY ACTION Note: Adjust closing time speed to between 3 and 7 seconds Adjust backcheck accordingly from 90˚ to 0˚. Greater closing...
