DEVICES COVERED IN THIS DOCUMENT:
45ET-EL
Cylinder Escutcheon Lever Trim - Fail Safe
45ET-EU
Cylinder Escutcheon Lever Trim - Fail Secure
1. PREPARE DOOR
A.
Follow exit device instructions and template to prepare door and frame for
installation.
B.
Follow lever trim instructions and special electric version of the trim template
(see document T-ED00372) to prepare door for installation.
i.
The electric trim template identifies the location of a 1/2" diameter hole
through the door for wire transfer to exit device side of door. The wires
are then routed through the exit device, into the door raceway to power
transfer device (electric hinge).
ii. The wire transfer hole is handed, so be sure to use the correct location.
C.
Door fabricator to provide a 3/8" diameter (minimum) raceway through door
to allow insertion of electrical wires running between exit device and power
transfer device (electric hinge). See "Wire Routing and Door Prep
Instructions" for 4500 Series Electric Exit Devices, document I-ED00367.
REV 3

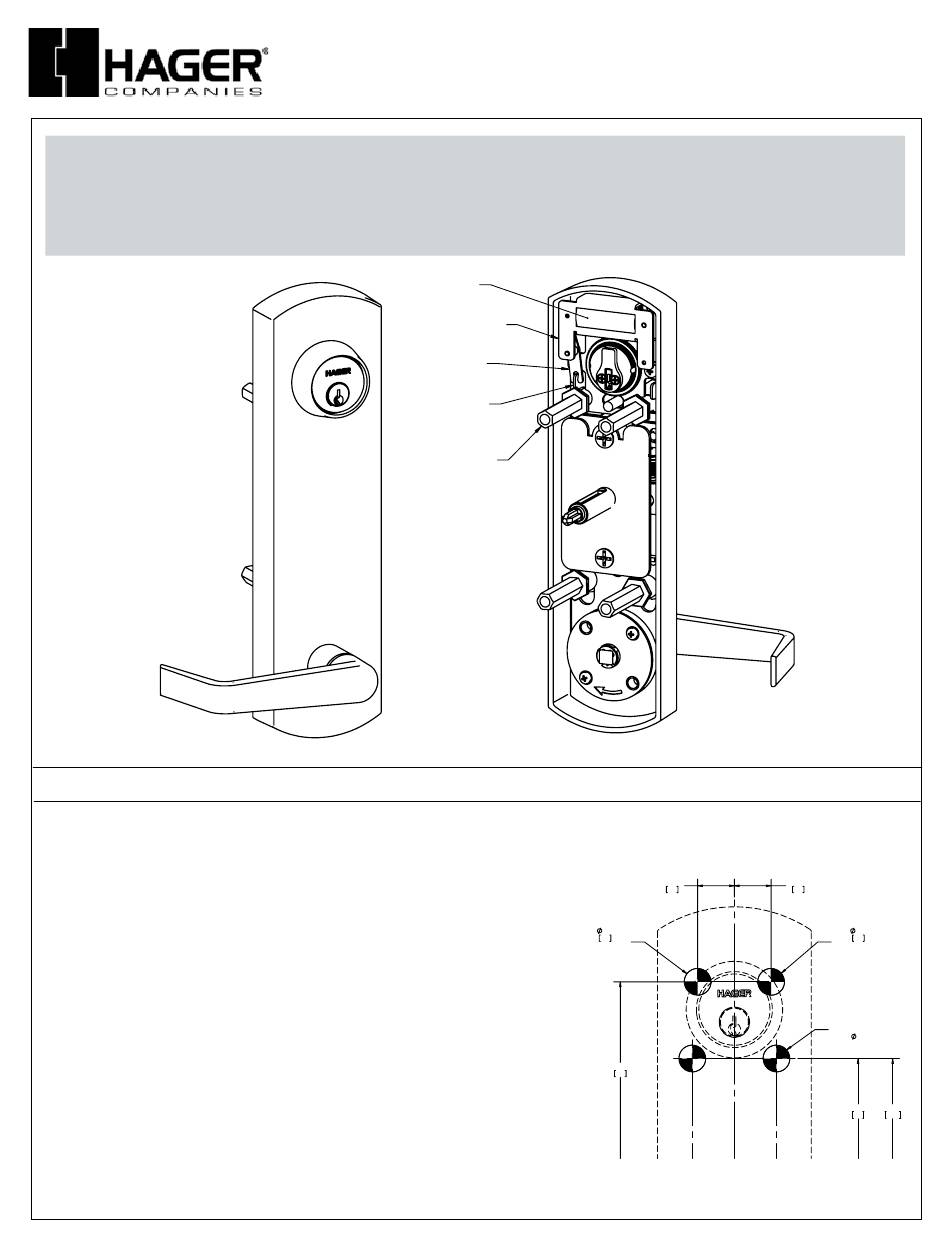

SOLENOID
SOLENOID BRACKET
PIVOT LEVER
LOCKING LINK
MOUNTING POST
27390028
4500 Series Electric Lever Trim
Electrical Supplemental Instructions
C L
.687
17
1/2"
13
LHR HANDING
(SEE NOTE)
3 5/8"
92
Grade 1
I-ED00370
.687
17
1/2"
13
RHR HANDING
(SEE NOTE)
TRIM MOUNTING HOLES (4X)
DRILL
1/2" HOLE
2 3/16"
4 3/8"
56
111
Page 1 of 3
Advertisement
Related Manuals for hager 4500 Series
Summary of Contents for hager 4500 Series
- Page 1 TRIM MOUNTING HOLES (4X) transfer device (electric hinge). See “Wire Routing and Door Prep DRILL 1/2" HOLE Instructions” for 4500 Series Electric Exit Devices, document I-ED00367. 3 5/8" 2 3/16" 4 3/8" REV 3...
- Page 2 4500 Series Electric Lever Trim Electrical Supplemental Instructions Grade 1 I-ED00370 2. PREPARE EXIT DEVICE Remove four (4) screws from chassis cover and remove. Separate chassis/push bar from device body by removing two (2) screws located on chassis. After chassis/push bar has been removed from device body, insert cable assembly along the side of push bar. Make sure that connector end is located on the chassis side.
- Page 3 4500 Series Electric Lever Trim Electrical Supplemental Instructions Grade 1 I-ED00370 4. SECURE WIRES A. After the exit device and trim is mounted, secure the wires in the back of exit device body with the self-adhesive ty-wrap mount and ty-wrap.
