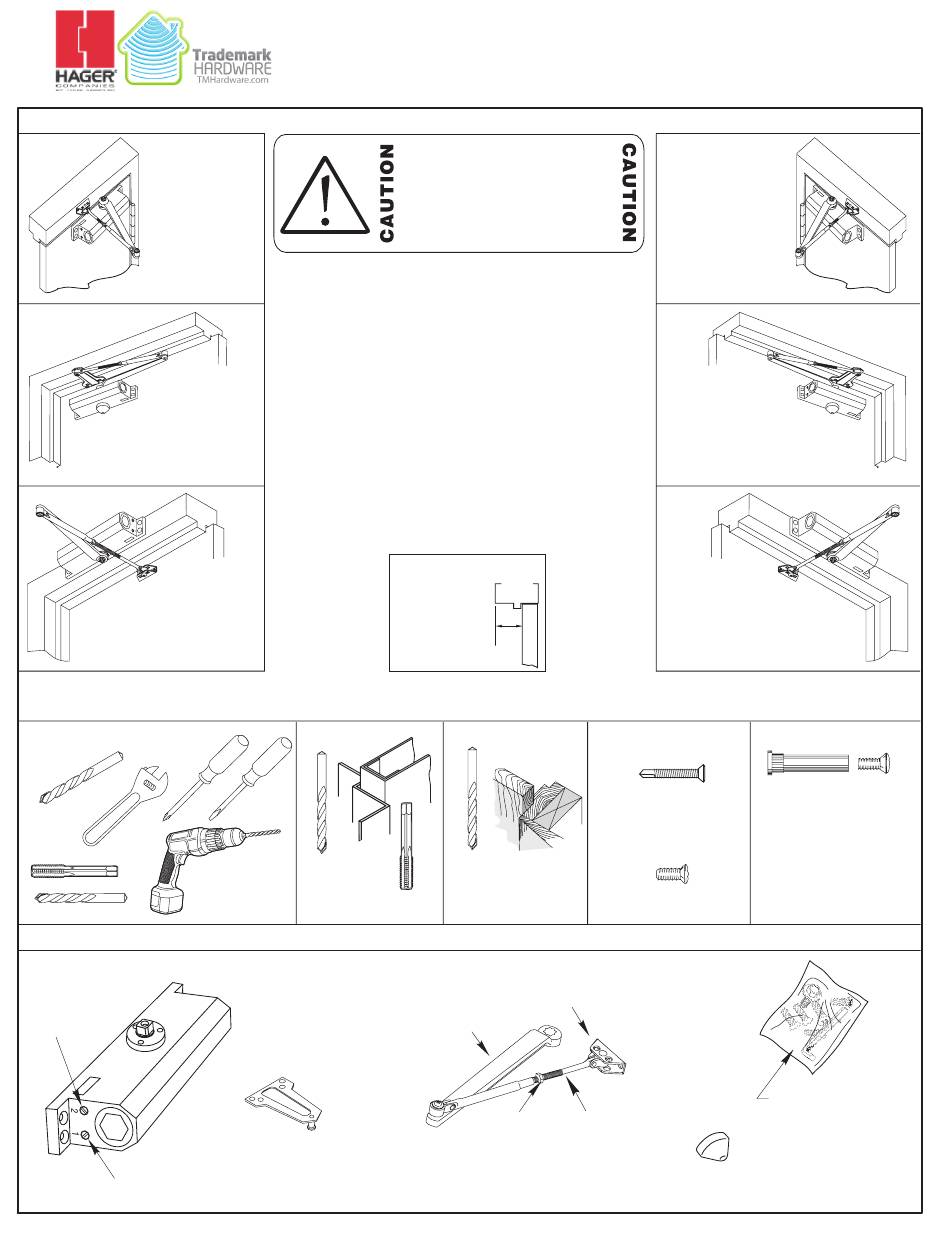

Regular Arm
Installation
See Page 2
Left Hand Door - LH
Right Hand Reverse - RHR
Parallel Arm
Installation
See Pages
Left Hand Door - LH
Right Hand Reverse - RHR
Top Jamb
Installation
See Page 5
Left Hand Door - LH
Right Hand Reverse - RHR
• These door closers should NOT be installed on the exposed side (weather side) of exterior doors.
TOOLS REQUIRED
COMPONENT PARTS
LATCH VALVE
SWEEP VALVE
HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995 • Fax (800) 782-0149
NOTE: For special applications, a separate door
and frame preparation template is packed with
these instructions. Use this instruction sheet for
installation sequence and closer adjustments only.
•
Dimensions are based on standard doors and
frames with 1/8" clearance, 5/8" stops, and
3 & 4
square edge doors.
•
Door and frame must be properly reinforced.
•
Non-Handed Door Closers.
NOTE: For Top Jamb
Application
A longer connecting
rod is required for
reveals greater
than 3" (76mm)
METAL
#7
1/4"- 20
PARALLEL
ARM BRACKET

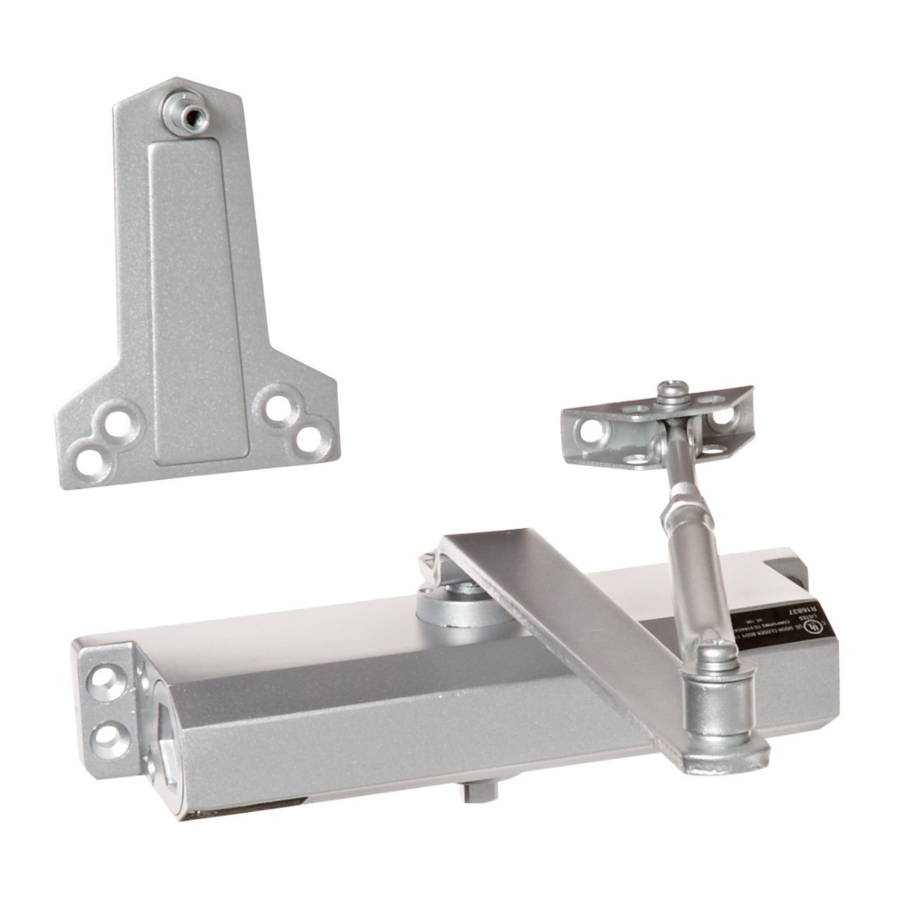

5400 Series Non-Hold Open Door Closer
An incorrectly installed or
improperly adjusted door closer
can cause property damage or
personal injury. These installation
instructions should be followed
to avoid the possibility of
misapplication or misadjustment.
Reveal
WOOD
3/16"
REGULAR ARM/TOP
JAMB SHOE
MAIN ARM
FOREARM
CONNECTING ROD
SCREW
CLOSER ARM
Installation Instructions
Available in Sizes 2, 3, 4 and 5
Regular Arm
Installation
See Page 2
Right Hand Door - RH
Left Hand Reverse - LHR
Parallel Arm
Installation
See Pages
3 & 4
Right Hand Door - RH
Left Hand Reverse - LHR
Top Jamb
Installation
See Page 5
Right Hand Door - RH
Left Hand Reverse - LHR
Self Drilling Screws
Sleeve Nut and Bolt
Wood and Metal
Drill 9/32" thru from Closer Side
For wood, drill 3/16" hole
Machine Screws
Check building and fire codes to
see if your application requires
#7 Drill, 1/4"- 20 Tap
the use of sleeve nuts and bolts.
SCREW PACK
PINION CAP
3/8" Drill other Side
Advertisement
Table of Contents
Related Manuals for hager 5400 Series
Summary of Contents for hager 5400 Series
- Page 1 COMPONENT PARTS REGULAR ARM/TOP JAMB SHOE MAIN ARM LATCH VALVE SCREW PACK FOREARM CONNECTING ROD SCREW PARALLEL ARM BRACKET CLOSER ARM PINION CAP SWEEP VALVE HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995 • Fax (800) 782-0149...
- Page 2 Press pinion cap onto un-used closer body spindle. NOTE: Do not fully unscrew valves or hydraulic fluid will leak and PINION CAP closer will no longer be functional. HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995 • Fax (800) 782-0149...
- Page 3 “1” (RH) or “4” (LH), located on the main arm, is adjacent to the door. Secure main arm and spindle by tightening spindle bolt. HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995 • Fax (800) 782-0149...
- Page 4 Press pinion cap onto un-used closer body spindle. NOTE: Do not fully unscrew valves or hydraulic fluid will leak and PINION CAP closer will no longer be functional. HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995 • Fax (800) 782-0149...
- Page 5 Press pinion cap onto un-used closer body spindle. NOTE: Do not fully unscrew valves or hydraulic fluid will leak and closer will no longer be functional. HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995 • Fax (800) 782-0149...
- Page 6 Size 5 Top Jamb Parallel Arm Size 2 Size 3 Size 4 Size 5 ADJUSTMENT DIAGRAM ARM PLACEMENT IN SHOE 7-1/2% Stronger 7-1/2% Weaker HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995 • Fax (800) 782-0149...
