hager 8300 Quick Start Manual

This guide is intended to aide in the quick set-up of the operator assembly by experienced and qualified individuals.
This guide is not intended to eliminate the need of the Installation and Service Manual nor is it meant to eliminate the
need to reference any ANSI performance standards to help ensure safe operation. Hager recommends that all
installations and service of this equipment be performed by qualified individuals who are certified inspectors by the
American Association of Automatic Door Manufacturers.

STEP 1: HEADER / OPERATOR / ARM INSTALLATION

Install the header back-plate as shown.
Install drive module and door arm
according to the application.
Pull Arm
Hollow Metal
PULL APPLICATION
MOTOR IS TOWARDS HINGE JAMB
HINGE HUNG DOORS
Inside face of hinge jamb to C/L of Arm
PUSH
Mount Bracket (X)
APPLICATION
13.5"
Inside face of hinge jamb to Back Edge of
PULL
Slide Track (Y)
APPLICATION
7.5"
Push Arm
Rev 1, Rev Date: 1/16/2019
8300 Quick Start Guide
4.75"
4.5"
2-3/8"
1.5"
LH RH
OPERATOR VIEW AS INSTALLED ABOVE DOOR
X
Always visit www.hagerco.com for the latest Installation Instructions
HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995

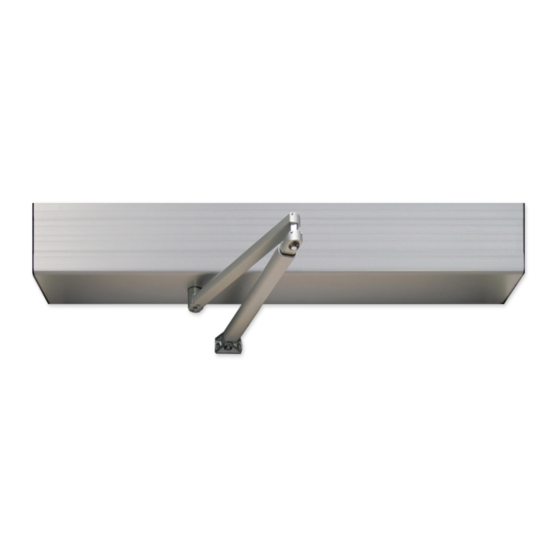

8300 Low Energy Auto-Operator
PUSH APPLICATION
I/O BOARD IS TOWARDS HINGE JAMB
LHR
CENTER PIVOTED DOORS
Inside face of pivot jamb to Spindle
10.5"
Inside face of pivot jamb to Spindle
10.5"
Pull Arm
Quick Start Guide
I-EA00259
4.75"
Push Arm
4.5"
Hollow Metal
2-1/16"
Bottom of operator 1/8"
below bottom of frame
RHR
Inside face of pivot jamb to C/L of
Arm Mount Bracket
16"
Inside face of pivot jamb to Back
Edge of Slide Track
8"
Y
Page 1 of 2
