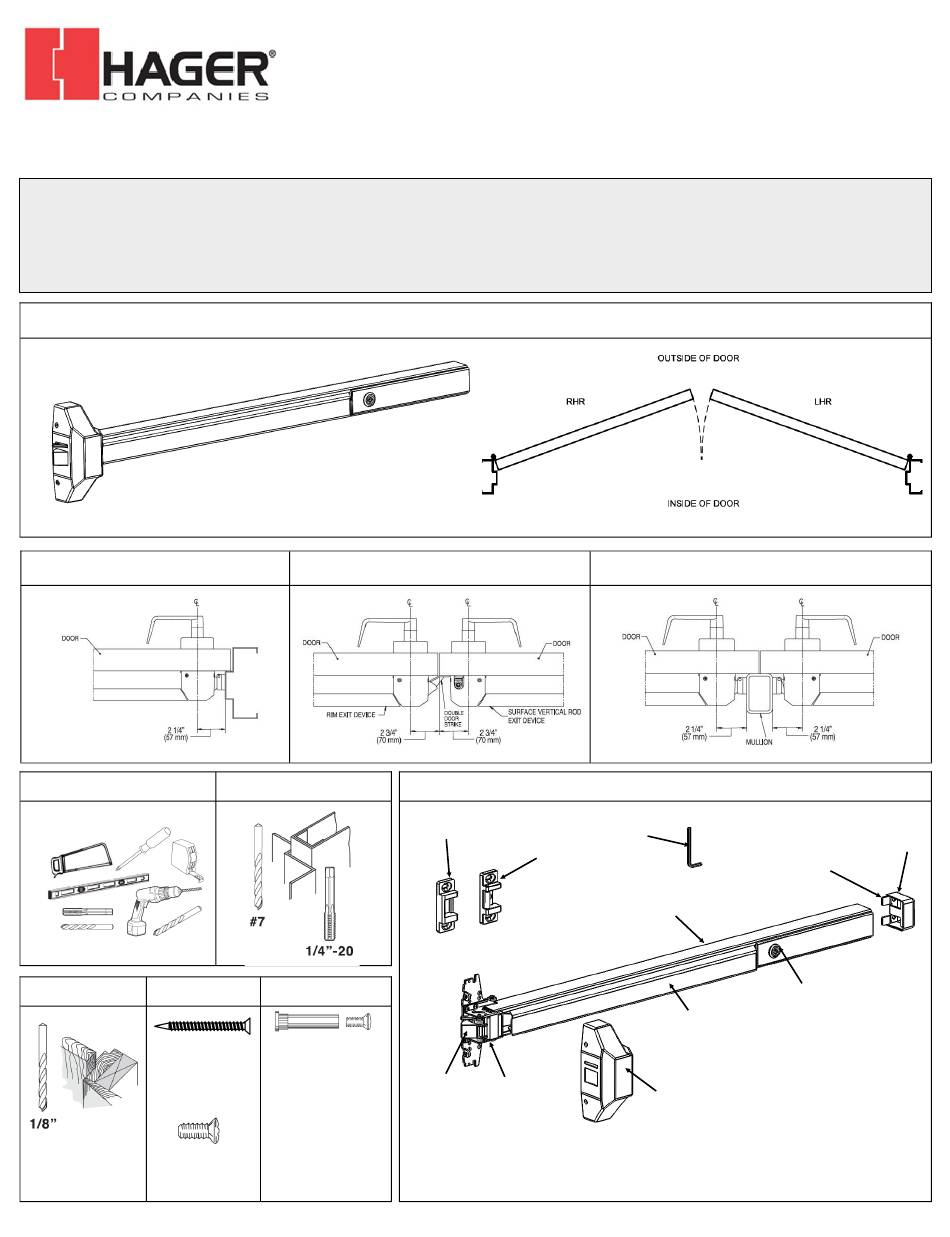

DEVICES COVERED IN THIS DOCUMENT:
4700R Rim Exit Device
4700RF Fire-Rated Rim Exit Device
Overview
SINGLE DOOR
Tools Required
WOOD
SCREWS
For wood, drill 1/8" hole
Machine Screws
#7 Drill, 1/4"-20 Tap
Rev: 3 Rev Date: 7/16/2018
DOUBLE DOOR
METAL
SEX BOLTS
Drill 5/16' thru from
device side. Drill 3/8"
from other side (pull
side)
Check building and fire
codes to see if your
application requires
the use of sleeve nuts
and bolts.
COMPONENT PARTS
DOGGING WRENCH
STRIKE (FIRE-RATED)
STRIKE (PANIC-RATED)
LATCH
CHASSIS
4700 Series Rim Exit Device
Installation Instructions
DOUBLE DOOR WITH MULLION
DEVICE BODY
DOGGING MECHANISM
(NOT AVAILABLE ON FIRE RATED DEVICES)
PUSH BAR
CHASSIS COVER
Grade 1
I-ED00790
END CAP
END CAP BRACKET
Page 1 of 3
Advertisement
Related Manuals for hager 4700 Series
Summary of Contents for hager 4700 Series
- Page 1 4700 Series Rim Exit Device Installation Instructions Grade 1 I-ED00790 DEVICES COVERED IN THIS DOCUMENT: 4700R Rim Exit Device 4700RF Fire-Rated Rim Exit Device Overview SINGLE DOOR DOUBLE DOOR DOUBLE DOOR WITH MULLION Tools Required METAL COMPONENT PARTS DOGGING WRENCH...
- Page 2 4700 Series Rim Exit Device Installation Instructions Grade 1 I-ED00790 1. CUT EXIT DEVICE TO LENGTH 2. MARK DOOR AND DRILL MOUNTING HOLES The exit device is pre-cut for 36” and 48” wide door use. For other door Measure center line of exit device, typically 40” from finished floor. Fold widths, cut exit device to appropriate length.
- Page 3 4700 Series Rim Exit Device Installation Instructions Grade 1 I-ED00790 5. INSTALL STRIKE 6. INSTALL COVER Install head cover on chassis using provided screws. Install strike using only the top and bottom slotted holes and 1/4” -20 machine screws (metal) or pre-drill 1/8” hole for #12 wood screw. Open and close door to verify latch and deadlatch are aligned properly.
