hager 5300 Series Installation Instructions

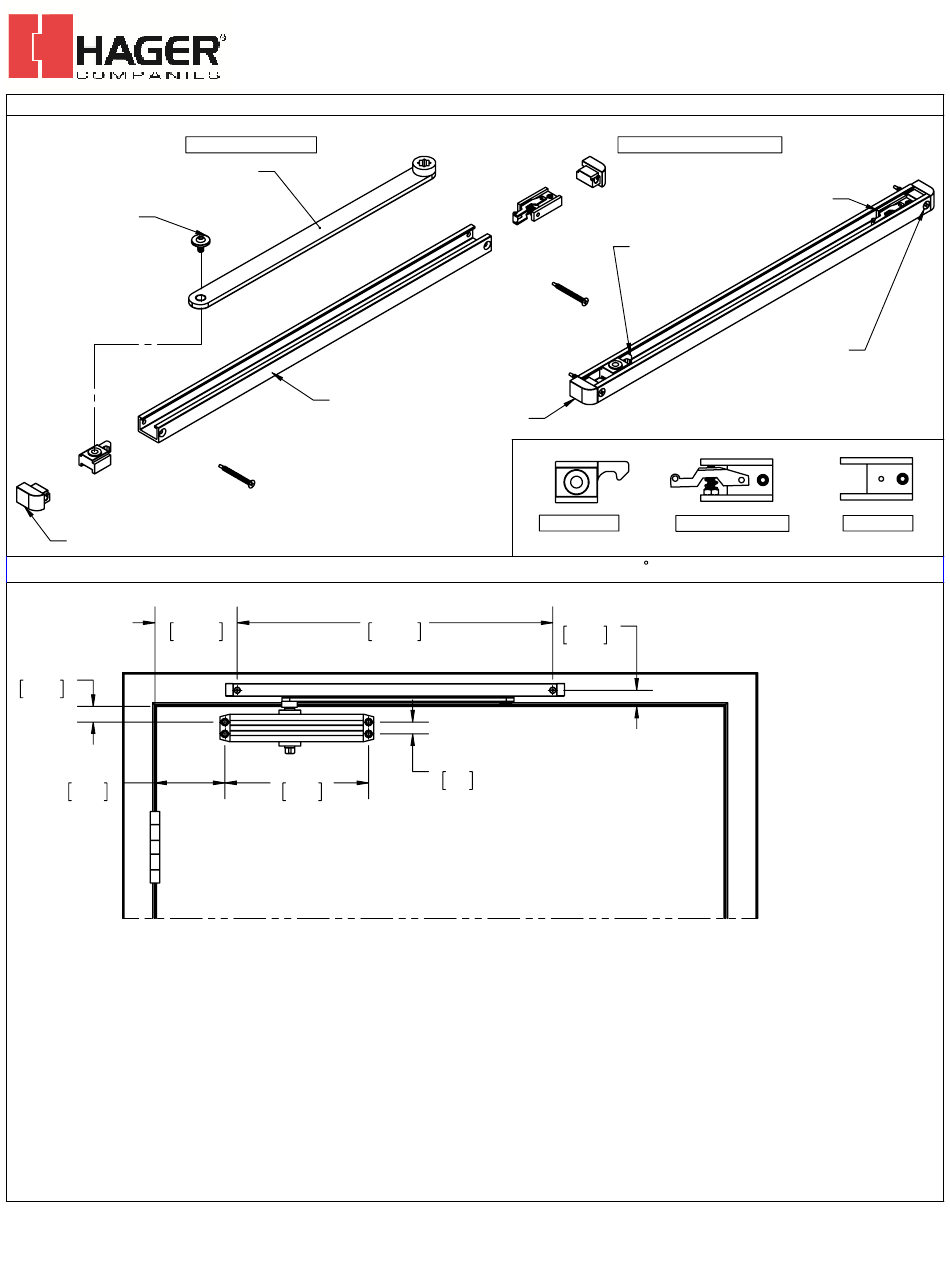

PARTS

WITH SLIDE ARM
SLIDE ARM
SLIDE ARM INSERT
SCREW
END CAP

INSTALL TRACK ARM - PULL SIDE APPLICATION (RIGHT HAND SHOWN) 120 TEMPLATE

5 3/16"
131.8
1"
25.1
4 13/32"
112
CENTERLINE
OF HINGE
Installation Sequence:
1. Use template to locate holes on door and frame. Drill 1/8" pilot holes for the self tapping screws.
2. Determine door width, adjust spring power of closer by referencing closer installation instructions.
3. Fasten closer body to door with power adjustment nut away from hinge.
4. Fasten slide track to frame face with open side facing down and with hold open stop end toward
hinge edge of door.
5. Place slide arm on pinion shaft of closer at preload of 45 degree angle out from door face.
6. Secure arm with arm washer and arm screw.
7. Secure other end of slide arm to track by screwing it to the slide insert. Open door to required
opening angle. Then slide stop only/hold open stop up against slider insert and tighten down the
stop only/hold open stop via set screw.
REV: 1 REV DATE: 1/11/2014
SLIDE TRACK
END CAP
19 7/8"
504.8
3/4"
9 1/16"
19
230
5300 Series Track Arm
Installation Instructions
WITHOUT SLIDE ARM
HOLD OPEN STOP
SLIDE INSERT
Slide Insert
Hold Open Stop
1"
25.8
I-CL00579
MOUNTING
SCREW
Stop Only
NOTE: IF USER
WISHES
TO HAVE A
LESSER
SWING ANGLE,
SIMPLY
MOVE HOLD
OPEN STOP
OR STOP ONLY
AWAY FROM
THE PIVOT
HINGE IN
INCREMENTS
OF 1/2" UNTIL
DESIRED
ANGLE IS
ACHIEVED.
Page 1 of 3
