RainPoint ITV152 User Manual

Quickdial automatic hose timer

Advertisement

Quick Links

USER MANUAL
Quickdial Automatic Hose Timer
Model No. ITV152
Save the user manual for future reference. If you have any
questions, please contact us to get support.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITV152 and is the answer not in the manual?

Questions and answers

Summary of Contents for RainPoint ITV152

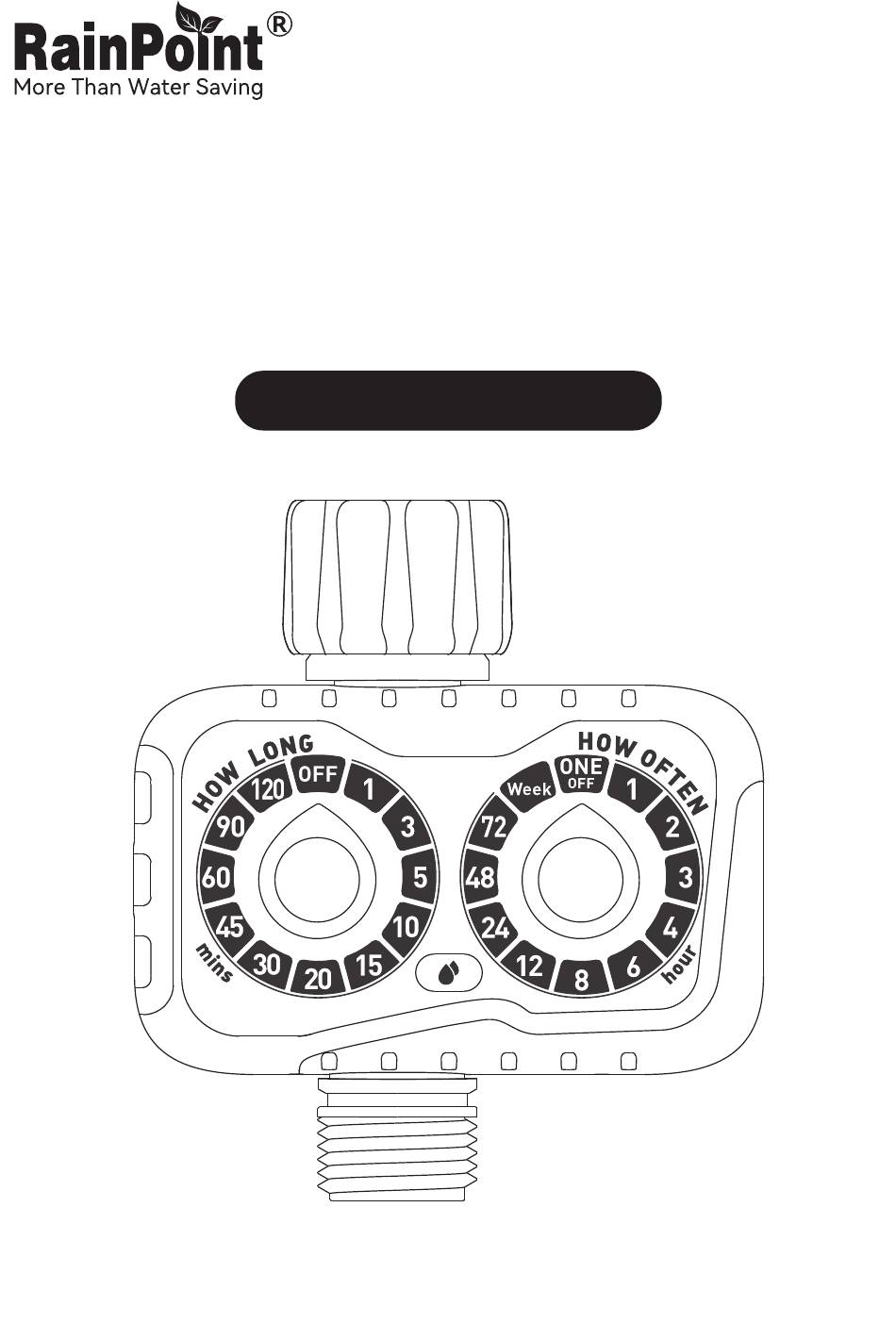

  • Page 1 USER MANUAL Quickdial Automatic Hose Timer Model No. ITV152 Save the user manual for future reference. If you have any questions, please contact us to get support.
  • Page 2: Please Read Before Use

    Warm Tips Please read before use: Don’t use the water timer when the temperature is below 37.4℉ (3°C), and please store the timer indoors to avoid potential freezing damage. The filter traps dirt particles, preventing them from entering the timer and causing clogging. Please clean the filter regularly and replace it if worn.
  • Page 3: Table Of Contents

    Contents Contents in the box Introduction 2.1 Product Overview 2.2 Specification Timer Programming 3.1 Product Installation 3.2 Programming Your Timer 3.3 Cleaning Your Timer Troubleshooting Precautions Warranty Policy Customer Support...
  • Page 4: Contents In The Box

    1. Contents in the box ITV152 Quickdial Automatic Hose Timer User Manual Sealing Tape Spare rubber washer Warranty Card -01-...
  • Page 5: Introduction

    2. Introduction 2.1 Product Overview FILTER WATER INLET HOW LONG HOW OFTEN DIAL DIAL MANUAL BUTTON WATER OUTLET LEFT KNOB: Rotate the knob to set the watering duration RIGHT KNOB: Rotate the knob to set the watering frequency MANUAL: Manual watering button -02-...
  • Page 6: Specification

    2.2 Specification NH (US)for 3/4" faucet Water Inlet BSP (EU) for 3/4" or 1" faucets Water Outlet For 3/4'' standard garden hose Operating temperature 37.4°F-122°F (3℃-50°C) Operating water 0.5-8 bar (7.25-116PSI) pressure ONE/OFF-1h-2h-3h-4h-6h-8h- Irrigation frequency 12h-24h-48h-72h-week OFF-1min-3min-5min-10min- Irrigation duration 15min-20min-30min-45min- 60min-90min-120min 2*AAA alkaline batteries Powered by...
  • Page 7: Timer Programming

    3. Timer Programming 3.1 Product Installation 3.1.1 Installing The Batteries Open the battery compartment cover on the back of the timer. Insert 2 new AAA (1.5V) alkaline batteries (not included). Replace the battery compartment cover and press firmly to ensure it is fully sealed.
  • Page 8 3.1.2 Installing The Timer Turn off the garden faucet. Wrap Teflon Tape around the faucet threads. Screw the timer to the garden faucet and make the timer dial as vertical as possible to the ground to prevent rainwater from accumulating and leaking into the interior.
  • Page 9 Tips: If the connection between the timer and the faucet or hose is not tight or leaking, wrap more Sealing Tap (thread seal tape) to make them tight. Note: Please do not use tools, only install the timer by hand. When expecting freezing temperatures, timers should be removed from the hose faucet and stored indoors to avoid potential freeze damage.
  • Page 10: Activation Steps

    3.1.3 Activate The Timer Before Use Please activate the device before using it for the first time or after a period of inactivity. Activation steps: Keep the garden faucet turned off. Short press the manual watering button to enter manual watering mode. After hearing a "click"...
  • Page 11: Programming Your Timer

    3.2 Programming Your Timer Setting Irrigation Duration Turn the duration knob to set the Irrigation Duration. The green light flashes 5 times, and then stays on for 2 seconds to confirm the setting. If the light is rotated to another position during the flashing process, the count will be restarted.
  • Page 12 When the duration knob is turned to OFF, the red light flashes and then stays on for 2 seconds to turn off the valve. After the valve is turned off, the red light will no longer be on. At this time, if you rotate the frequency knob to any position, the light will flash red twice, indicating that it is now in the off state, the valve is not opened, and the plan will not be set successfully.
  • Page 13 Setting Irrigation Frequency Rotate the knob to select the desired Irrigation Frequency. The light on the manual watering button will flash green for 5 times and then be on for 2 seconds to confirm the setting. Rotating to other positions during the flashing process will restart the count for the light.
  • Page 14 When the frequency knob is turned to ONE/OFF, the single function is entered. At this time, the valve will be opened once no matter how long the duration knob is turned to, and no cycle plan will be generated. When the frequency knob is at ONE/OFF and you need to water once more, you need to turn the duration knob to...
  • Page 15 Manual Irrigation When the device is watering, short press the manual button to close the valve and stop irrigation. When the device is in any state except watering, short press the manual button to open the valve, and short press the manual button again to close the valve. During manual irrigation, the green light flashes intermittently, once every 5 seconds, until the irrigation is finished.
  • Page 16: Cleaning Your Timer

    3.3 Cleaning Your Timer After a period of use, impurities or dirt in the water may accumulate in the timer. Therefore, the timer should be cleaned regularly to ensure its proper operation. Please follow these steps to clean the timer. Turn off the garden faucet and remove the timer.
  • Page 17: Troubleshooting

    4. Troubleshooting Problem Possible Cause Possible Solution The water No filter or filter Add a filter and inlet not be placed make sure it's placed leakage. horizontally. horizontally in the The faucet is inlet. not the Make sure the standard 3/4". faucet is a standard 3/4"...
  • Page 18 Problem Possible Cause Possible Solution Short Mixing old and Use new alkaline battery life. new batteries. batteries. Use carbon Rechargeable batteries or batteries or carbon rechargeable batteries have a batteries. short life, please use alkaline batteries. Low water Filter blockage. Check if the filter is pressure.
  • Page 19: Precautions

    5. Precautions For outdoor use only. Placing the timer in the sheltered outdoors will prolong its lifetime. To avoid damage, please tighten it without using tools. The filter should be placed horizontally in the water inlet to prevent leakage. When low power, please replace the batteries to avoid the interruption of normal operation, when replacing the batteries, please make sure that the battery tray is dry.
  • Page 20: Warranty Policy

    ID at support@rainpointonline.com and we’ll respond within 24 hours. 7. Customer Support Still have trouble with setup, please search for "RainPoint" on Youtube for installation videos! If the user manual doesn’t have what you're looking for or you need other help, please contact us before returning the product to the store and let us know the LOT NO.
