- Page 1 2-Zone Hose Faucet Timer USER MANUAL Model No.ITV201P WEB: www.rainpointus.com Email:service@rainpointus.com Free Hotline (US): 833 3815659...
- Page 2 PLEASE ACTIVATE THE VALVE BEFORE USE IF YOU ARE USING IT FOR THE FIRST TIME OR AFTER A PERIOD OF IDLENESS TO ENSURE YOU CAN USE IT PROPERLY： 1. TURN THE TIMER DIAL TO ON AND HOLD THE OK BUTTON FOR 3-5 SEC TO ENTER MANUAL WATERING MODE.

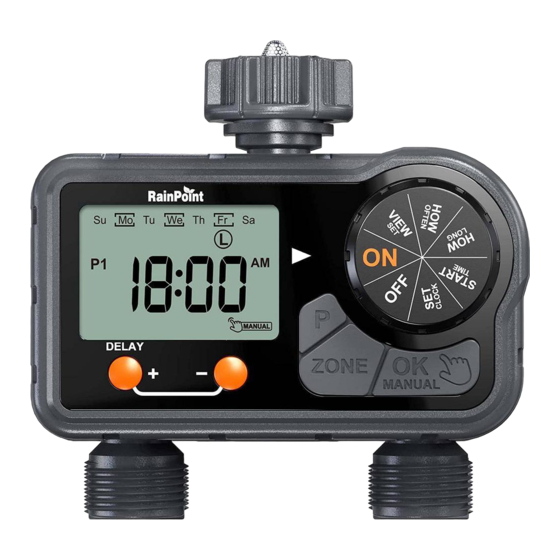

- Page 3 FILTER HOSE TAP CONNECTION P BUTTON BIG LCD DIAL SCREEN DELAY/+ OK/MANUAL BUTTON BUTTON - BUTTON ZONE BUTTON Select Zone Left or Zone Right to be programmed...
- Page 4 Operating Water Pressure 0.5 - 8bar (7-116 psi) Water Duration 1min - 3h59min every 2 days to every 6 days or any Water Frequency day from Monday to Sunday Waterproof and Dustproof IP54 Max Flow Rate 35L/Min For tap 3/4 or 1 with BSP or NH thread Thread Type Working Temperature 3 C - 50 C (37 F - 122 F)
- Page 6 1) First select ZONE L, complete the settings for ZONE L according to steps 1-4 below, then turn the dial to "ON" to save the changes. 2) Then press ZONE to select ZONE R, repeat the following steps 2-4 again, and finally turn the dial to "ON"...
- Page 7 1. Turn dial to START TIME. 2. Using the " + " and " - " button to set time to start watering. 3. Using " OK " button to switch time between hours and minutes. 4. Press " P " to switch plan between P1, P2 and P3. 5.
- Page 8 1.Turn the dial to HOW OFTEN. 2.There are 2 setting modes for watering frequency. 1）Weekday Mode : Monday to Sunday. (Watering plans will run every Sunday, Wednesday, Thursday and Friday) a. Press "+" button to select the day of the week, press "OK" to confirm. means the "Day"...
- Page 9 2）Every 2/3/4/5/6 Days Mode: (Without Every 1 Day Mode)
- Page 10 If there are no problems, please turn dial to ON to allow your timer to water according to the programmed time, zone, duration and frequency. 1) With the dial in the "ON" position, press the "DELAY/+" button for 3-5s to start the delay watering function.
- Page 11 LEFT RIGHT Zone L are shown by default. 3) Use the "+" and "-" button to select watering time, from 1 min to 59 mins. (The default manual watering time is 10 minutes.) 4) Press "OK" button to confirm and start the manual watering. 5) To stop manual watering, turn the dial to OFF and then back to ON, or hold the "OK/MANUAL"...
- Page 12 If you want to use only ZONE L and close ZONE R, please set it up as follows. 1) Turn the dial to "Start Time" and select ZONE R. 2) Press the "P" button to switch Plan, then press the "+" or "-" button until the screen displays OFF bonoth P1, P2 and P3.
- Page 13 The water inlet 1. No filter or not be 1. Add filter and make sure leakage placed horizontally it' s placed horizontally in 2. The faucet is not the the inlet. standard 3/4" 2. Make sure the faucet is a 3/4" faucet. 3.
- Page 14 Low water 1. Filter blockage 1. Check if the filter is pressure clogged, if so, clean or 2. Inlet pressure not replace the filter. sufficient to support watering 2. Make sure the timer is installed properly and not cross-threaded. 3. Installation of a booster pump or other auxiliary equipment of increasing pressure, the product itself...
- Page 15 1) Intended for outdoor use only, put in the sheltered outdoor will prolong the the product lifetime. 2) Using tools to tighten your timer is too tight, easy to damage. to avoid damaging the timer, please tighten it with your hand instead of a tool. 3) Please ensure that the filter is placed horizontally in the top connector before installation to prevent leakage, add a filter and thread seal tape if necessary.
- Page 17 Scan the QR code to visit the setup video Need Help? Call 1-833 3815659 Or email to service@rainpointus.com...
