RainPoint ITV105 - Mini Digital Sprinkler Timer Manual

WARM TIPS

PLEASE READ BEFORE USING

Don't use the water timer when the temperature is below 37°F(3°C), and please store the timer indoors to avoid potential freezing damage.
The filter traps dirt particles, preventing them from entering the timer and causing clogging. Please clean the filter regularly and replace it if worn.
To ensure a longer lifespan, please use 2 new AAA alkaline batteries (not included). Don't mix new and old alkaline, standard (carbon-zinc), or rechargeable batteries.
Please activate the water timer before first use or after a period of inactivity: ACTIVATE THE TIMER BEFORE USE).
Only use with clean cold water.

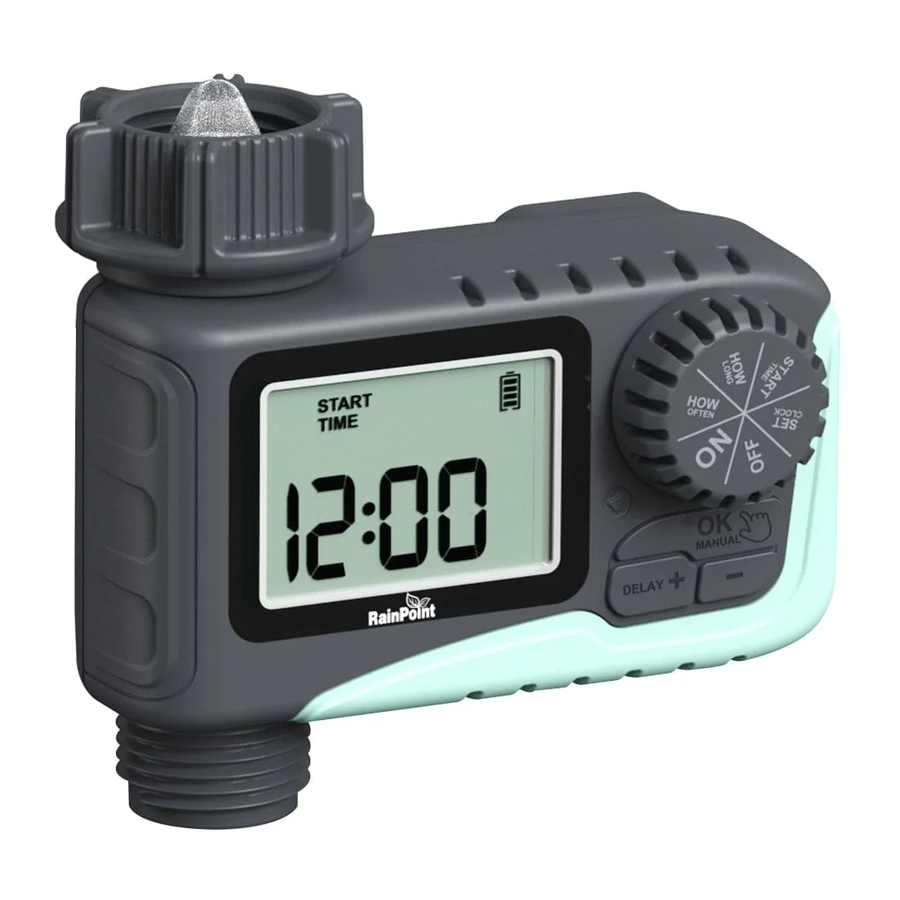

PRODUCT OVERVIEW

AT A GLANCE

AT A GLANCE

  • DIAL: Rotate the dial to customize your watering schedule.
  • OK / MANUAL BUTTON: Use "OK" to confirm the time.
    When the dial is turned to "ON", press and hold "MANUAL" to water manually.
  • DELAY / + BUTTON: Use "+" to adjust the time. When the dial is turned to "ON", press and hold "DELAY" to activate Rain Delay.
  • - BUTTON: Use "-" to adjust the time.

DIAL POSITION FUNCTION
SET CLOCK Set the current time (US defaults to 12-hour clock)
START TIME Select what time you would like to start watering
HOW LONG Determine how long to water (water duration)
HOW OFTEN Choose how often you will water (water frequency)
ON Timer runs according to your customized schedule
OFF Turn off all watering

SPECIFICATION

Working Water Pressure 0.5bar-8bar (7.25 psi-116.03 psi)
Max Flow Rate 10 Gal/Min (35L/Min)
Waterproof Level IP54
Working Temperature 37.4℉-122℉ (3℃-50℃)
Watering Frequency Every 1-12 hours or every 1-7 days
Watering Duration From 1 minute to 3 hours 59 minutes (4 hours)
Water Inlet NH (US) for 3/4" taps
BSP(EU) for 3/4" or 1" taps
Water Outlet For 3/4" standard garden hose
Power By 2 AAA (1.5V) alkaline batteries
(Not Included)

PRODUCT INSTALLATION

INSTALLING THE BATTERIES

INSTALLING THE BATTERIES

  1. Remove the battery compartment cover on the back of the timer.
  2. Insert 2 new AAA (1.5V) alkaline batteries (not included).
  3. Put the battery compartment cover back on the timer and press firmly to make sure it is completely sealed.

warning Note:

  • Install the battery tray cover securely after installing the battery to ensure waterproofing.
  • When the timer is not used for a long time, please remove the batteries and dispose of them properly.
  • Replace batteries when the low battery indicator appears on display.
  • Don't dispose of batteries in fire. Batteries may explode or leak.
  • To ensure a longer lifespan, please use 2 new AAA alkaline batteries (not included). Don't mix new and old alkaline, standard (carbon-zinc), or rechargeable batteries.

INSTALLING THE TIMER

INSTALLING THE TIMER - Step 1

  1. Turn off the garden faucet.
  2. Wrap Teflon Tape around the faucet threads.
  3. Screw the timer to the garden faucet and make the display as vertical as possible to the ground to prevent rainwater from accumulating and leaking into the interior.
  4. Wrap Teflon Tape around the threads of the timer outlet.
  5. Screw the garden hose to the timer outlet.
  6. Turn on the faucet after programming the timer.

INSTALLING THE TIMER - Step 2

information Tips: If the connection between the timer and the faucet or hose is not tight or leaking, wrap more Teflon Tape(thread seal tape) to make them tight.

warning Note:

Please do not use tools, only install the timer by hand.

When expecting freezing temperatures, timers should be removed from the hose faucet and stored indoors to avoid potential freeze damage.

Please install the filter properly and keep it clean as follows.
INSTALLING THE TIMER - Step 3

ACTIVATE THE TIMER BEFORE USE

ACTIVATE THE TIMER BEFORE USE
warning Please activate the device before using it for the first time or after a period of inactivity.

Activation steps:

  1. Keep the garden faucet turned off.
  2. Turn the timer dial to "ON".
  3. Press and hold the "MANUAL" button for 3-5s to enter Manual Watering Mode.
  4. When the screen flashes, press the "OK" button to run manual watering.
  5. After hearing the "click" sound or waiting for about 5 secs, the valve in the timer is opened, then turn the dial to "OFF" to close the valve.
  6. Repeat step 2 - 5 for 3-5 times.
  7. Test: Turn on the faucet a little bit, and then repeat step 2-5 to check if the water flow out or shut off as expected.

If yes, the timer valve is normal, please use it with confidence! If not, please repeat the above steps several times or contact RAINPOINT support team immediately.

warning Note: When testing, please keep away from the water timer outlet to avoid being splashed and wet.

PROGRAMMING YOUR TIMER

STEP 1: SET CLOCK

STEP 1: SET CLOCK

  1. Turn the dial to SET CLOCK.
  2. Use the "+" and "-" buttons to set the current exact time, including AM and PM.(US defaults to 12-hour clock, EU defaults to 24-hour clock)
  3. Use the "OK" button to confirm and switch between hours or minutes.
  4. Turn the dial clockwise to save the changes in this STEP and go to next STEP.

information Tips: When the setup of this STEP is finished, please turn the dial to save the changes instead of press the "OK" button. If you press the "OK" button after setting, it will return to the previous setting instead of saving it.

STEP 2: START TIME

STEP 2: START TIME

  1. Turn dial to START TIME.
  2. Use the "+" and "-" buttons, to set the time you want to start watering, including AM and PM.
  3. Use the "OK" button to switch time ( Hours or Minutes).
  4. Turn the dial clockwise to save the changes in this STEP and go to next STEP.

information Tips: When the setup of this STEP is finished, please turn the dial to save the changes instead of press the "OK" button. If you press the "OK" button after setting, it will return to the previous setting instead of saving it.

STEP 3: HOW LONG

STEP 3: HOW LONG

  1. Turn dial to HOW LONG.
  2. Use the "+" and "-" buttons, to select watering duration from 1 minute to 3 hours 59 minutes.
  3. Using the "OK" button to switch time ( Hours or Minutes).
  4. Turn the dial clockwise to save the changes in this STEP and go to next STEP.

information Tips: When the setup of this STEP is finished, please turn the dial to save the changes instead of press the "OK" button. If you press the "OK" button after setting, it will return to the previous setting instead of saving it.

STEP 4: HOW OFTEN

STEP 4: HOW OFTEN

  1. Turn the dial to HOW OFTEN.
  2. Use "+" and "-" buttons, to set your watering frequency. You can choose to water every 1 to 12 hours, or every 1 to 7 days.
  3. Turn the dial clockwise to save the changes in this STEP and go to next STEP.

Examples of watering frequency of every 1 day, every 2 days and every 3 days:

EVERY 1 DAY
EVERY 1 DAY

EVERY 2 DAY
EVERY 2 DAY

EVERY 3 DAYEVERY 3 DAY

information Tips: When the setup of this STEP is finished, please turn the dial to save the changes instead of press the "OK" button. If you press the "OK" button after setting, it will return to the previous setting instead of saving it.

STEP 5: AUTOMATIC WATERING

STEP 5: AUTOMATIC WATERING

  1. Turn dial to "ON".
  2. The LCD screen will display the current time and the next time to start watering.


Current Time


Next Watering Start Time

CONGRATULATIONS!
Your timer has now been programmed successfully. It will start watering automatically based on the programmed start time, duration and frequency.
Now you can keep the faucet turned on and trust the timer to do the watering!

ADDITIONAL FUNCTIONS

RAIN DELAY


Setting rain delay 24/48/72H


Performing rain delay

Rain delay allows you to postpone watering for a set period of time, and it will not interrupt your original schedule.

To access the rain delay, follow the steps below.

  1. With the dial on "ON", press "DELAY" button for 3-5s to start the delay watering function.
  2. There will be a delay period on the screen which default "24H" You can press button "+" or "-" to choose the delay period from 24H, 48H, and 72H.
  3. Press "OK" button to run the delay function after selecting the delay time, and all watering plans will be skipped during this period.
  4. To remove rain delay, hold the "DELAY" button for 3-5s again to resume your programmed watering schedule.

warning Note: Please remember to press the "OK" button after selecting the rain delay time to start the rain delay program. Otherwise, the rain delay setting will automatically exit after the screen flashes for 3-5s.

MANUAL / HAND WATERING


Setting manual watering


Performing manual watering 1min~8hrs

This function allows you to manually water without interrupting your set watering schedule. To access this feature, please follow the steps below.

  1. Turn the dial to "ON".
  2. Press and hold the "MANUAL" button for 3-5s to enter the Manual Watering Mode.
  3. Press the "+" or "-" buttons to adjust the manual watering time from 1 minute to 8 hours. (The default manual watering time is 10 minutes.)
  4. After setting the watering time, press the "OK" button to start manual watering and the pattern will be displayed on the screen.
  5. If you need to stop the manual watering, please hold the "MANUAL" button for 3-5s to exit the manual watering mode and restore the original watering program.
    (Or you can turn the dial to "OFF" to stop the manual watering, but please remember to turn the dial to "ON" again to restore the original watering program.)

warning Note: Please remember to press the "OK" button after setting the manual watering time to start manual watering. Otherwise, the manual watering setting will be automatically exited after the screen flashes for about 3-5s.

OFF MODE

  1. If you wish to stop the watering plan for an extended period, turn the dial to "OFF". (Your settings are saved)
  2. The timer will not water automatically while in OFF mode. (The screen will display the word OFF in large letters).
  3. To start watering automatically again, turn the dial back to " ON" to resume your programmed watering schedule.

BATTERY STATUS

Battery Status will be displayed as following:


Full


Low Power

warning Note: When the low battery indicator appears on display. The valve will close automatically to avoid leakage. Please replace the battery in time in case of interrupting the normal operation.

TROUBLESHOOTING

Problem Possible Cause Possible Solution
The water inlet leakage
  1. No filter or not be placed horizontally
  2. The faucet is not the standard 3/4"
  1. Add a filter and make sure it's placedhorizontally in the inlet.
  2. Make sure the faucet is a standard 3/4" faucet.
  3. Wrap Teflon tape on the tap making it tight.
The water won't stop/flow out
  1. Long time in storage and transportation make the valve inactive
  2. Valve blockage
  1. Keep the tap turned off and turn the timer dial to ON;
  2. Run the manual watering for 5-7s and stop it;
  3. Repeat the Step 2 for 3 to 5 times;
  4. Try using it normally.
No response for manual/rain delay function
  1. After setting manual watering or rain delay time, without pressing OK button to save and run.
  1. Press OK button again after the time is set to confirm.
Short battery life
  1. Mixed use of old and new batteries
  2. Use the carbon batteries or rechargeable batteries
  1. Use new alkaline batteries.
  2. Rechargeable batteries and carbon batteries have a short life, use the alkaline batteries instead of them.
Low water pressure
  1. Filter blockage
  2. Inlet pressure not sufficient to support watering needs
  1. Check if the filter is clogged, if so, clean or replace the filter.
  2. Make sure the timer is installed properly and not cross-threaded.
  3. Installation of a booster pump or other auxiliary equipment of increasing pressure.
LCD screen does not display
  1. The battery is exhausted.
  2. The display is exposed to direct sunlight.
  1. Replace new 2*AAA alkaline batteries and installed correctly.
  2. Avoid direct sunlight, and observe if the battery is too low.

If you need help in using the timer, please feel free to contact us.
US Free Hotline(English): +1 833-381-5659
(MON-FRI 9:30 AM-5:30 PM PST)
UK Free Hotline(English Deutsch): +44 800-808-5337
(MON-FRI 9:00 AM-5:00 PM CET )
Email: service@rainpointus.com
WhatsApp: +1 626-780-5952

CLEANING YOUR TIMER

After a period of use, impurities or dirt in the water may accumulate in the timer. Therefore, the timer should be cleaned regularly to ensure its proper operation.
Please follow these steps to clean the timer.

  1. Turn off the garden faucet and remove the timer. Check whether the filter at the timer water inlet has accumulated impurities.
  2. If the filter is dirty, please take it out of the timer and rinse it with running water.
    CLEANING YOUR TIMER - Step 1
  3. Turn on the Manual Watering Mode of the timer to open the valve and check whether the water pipe of the timer is blocked. If it is blocked, please clean it gently with a small cleaning brush.
    CLEANING YOUR TIMER - Step 2

WARNINGS

  1. For outdoor use only. Placing the timer in the sheltered outdoors will prolong its lifetime.
  2. To avoid damage, please tighten it without using tools.
  3. The filter should be placed horizontally in the water inlet to prevent leakage.
  4. When low power, please replace the batteries to avoid the interruption of normal operation; when replacing the batteries, please make sure that the battery tray is dry.
  5. When the timer is not in use, please remove the batteries and store it indoors.
  6. Don't use the timer under the temperature more than 120℉(50℃), or less than 38℉(3℃).
  7. Don't subject the product to extreme force and shock.
  8. Severe electrical shock could result if water is sprayed into outlets or sources of electrical current. Never immerse the product in water.

This product is MADE IN CHINA and conforms to the national standards of the United States, Britain, Germany and France. Please use this product correctly. If it needs to be discarded, please properly dispose according to the national requirements. Please protect the environment.

EC REP NAME:VIAJE ELECTRONIC COMPANY LIMITED
ADDRESS:E588, 13 ADELAIDE ROAD, DUBLIN, D02 P950, IRELAND
Email: VIAJEELE@outlook.com

Save the user manual for future reference
If you have any questions, please contact us to get support

FOR ANY PROBLEMS DURING USE, PLEASE CONTACT US

Web: www.rainpointonline.com

Email: service@rainpointus.com

WhatsApp: +1 626-780-5952

US Free Hotline(English):
+1 833-381-5659(MON-FRI 9:30 AM-5:30 PM PST)

UK Free Hotline(English Deutsch):
+44 800-808-5337(MON-FRI 9:00 AM-5:00 PM CET )
