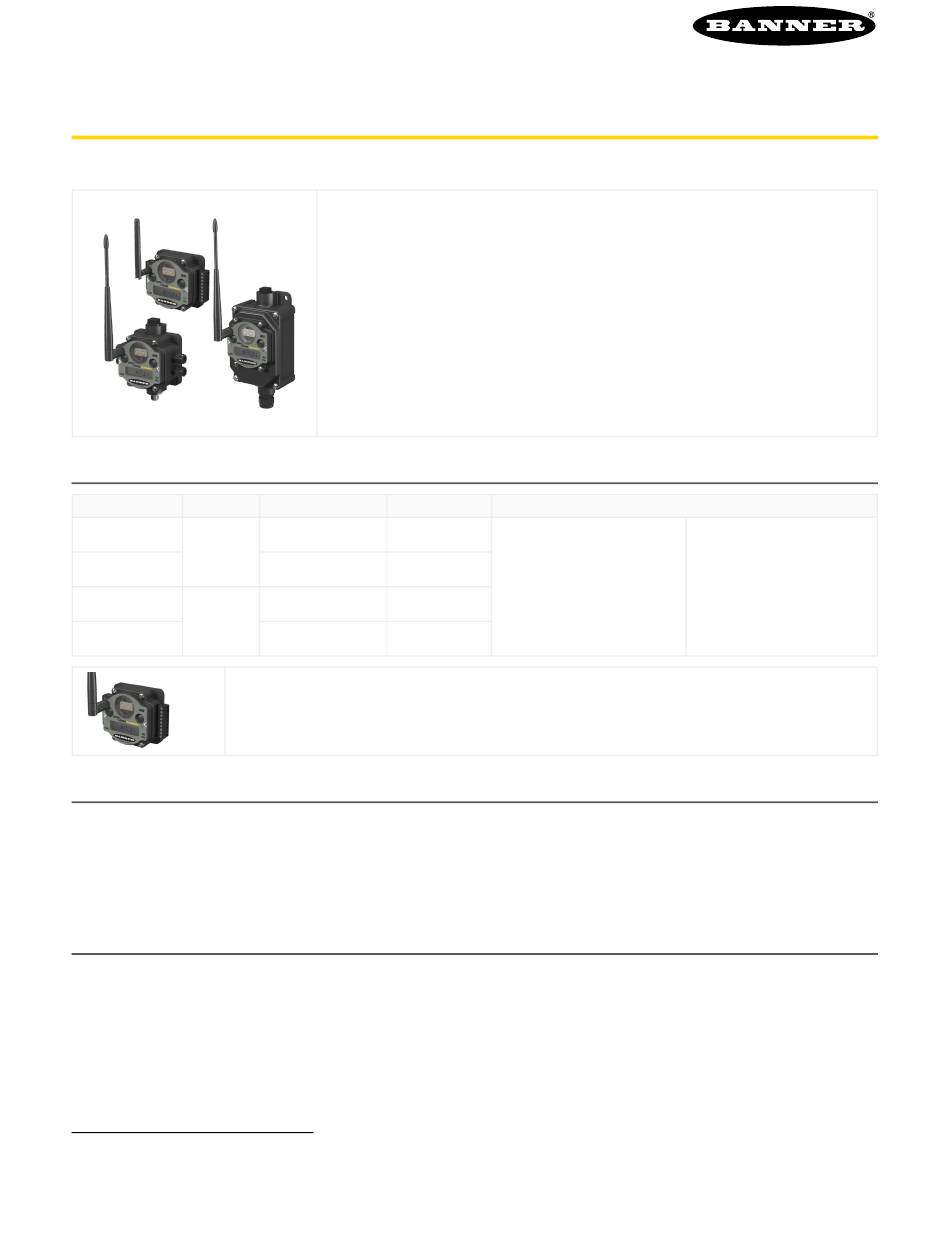

Banner P1 Manual

Performance P1 Node
P1 Node Features
The Sure Cross® wireless system is a radio frequency network with integrated I/O that operates in most environments to eliminate the need
for wiring runs.
P1 Node Models
Model Freq.
DX80N9X2S-P1
900 MHz ISM
Band
DX80N9X1S-P1E
DX80N2X2S-P1
2.4 GHz ISM
Band
DX80N2X1S-P1E
DX80...C (IP20; NEMA 1) models are also available. To order this model with an IP20 housing, add a C to the
end of the model number: DX80N9X2S-P1C.
To order an integrated battery model without the battery, add a -NB to the model number. If you purchase a
model without the battery, Banner Engineering recommends lithium D cell battery BWA-BATT-001.
Storage and Sleep Modes
Storage Mode (applies to battery-powered models only)—While in storage mode, the radio does not operate. To put any integrated
battery Sure Cross® radio into storage mode, press and hold button 1 for five seconds. To wake the device, press and hold button 1 for five
seconds. The radio is in storage mode when the LEDs stop blinking, but in some models, the LCD remains on for an additional minute after
the radio enters storage mode. After a device has entered storage mode, you must wait one minute before waking it.
Sleep Mode (applies to both battery and 10–30 V DC powered models)—During normal operation, the Sure Cross radio devices enter sleep
mode after 15 minutes of operation. The radio continues to function, but the LCD goes blank. To wake the device, press any button.
Configuration Instructions
Setting Up Your Wireless Network
To set up and install your wireless network, follow these steps.
For complete instructions, including binding, configuration, installation, weatherproofing, device menu maps, troubleshooting, and a list of
accessories, refer to Sure Cross® Wireless I/O Network Instruction Manual (p/n 132607)
1. Disconnect the power from your Sure Cross® devices.
2. Configure the DIP switches of all devices. DIP switch configurations are always listed in the product's datasheet.
(1)
This model can be configured to supply continuous power. For more information and detailed instructions, refer to the technical note "Configuring for
Continuous Switch Power or Host Controlled Switch
Original Instructions
November 15, 2023
• Wireless industrial I/O device with two selectable discrete inputs, two NMOS discrete
outputs, and two thermistor inputs when configured for discrete mode; two selectable
discrete inputs, two NMOS discrete outputs, two analog inputs, and two thermistor
inputs when configured for analog mode; switch power outputs in each mode
• Selectable transmit power levels of 250 mW or 1 Watt for 900 MHz models and 65 mW
for 2.4 GHz models
• Flex Power® power options allow for 10 V DC to 30 V DC, solar, and battery power
sources for low-power applications.
• DIP switches for user configuration
• Frequency Hopping Spread Spectrum (FHSS) technology ensures reliable data
delivery
• Transceivers provide bidirectional communication between the Gateway and Node,
including fully acknowledged data transmission
• Lost RF links are detected and relevant outputs set to user-defined conditions
Power Housing
10 V DC to 30 V DC or
IEC IP67; NEMA 6
battery supply module
10 V DC to 30 V DC or
IP65, NEMA 4X
integrated battery
10 V DC to 30 V DC or
IEC IP67; NEMA 6
battery supply module
10 V DC to 30 V DC or
IP65, NEMA 4X
integrated battery
Power," part number b_3099584.
© Banner Engineering Corp.
Inputs and Outputs
Discrete Mode
Inputs: Two selectable discrete and two
thermistor
Outputs: Two NMOS/sinking discrete
Switch Power: Two
Analog Mode
Inputs: Two selectable discrete, two
analog (0–20 mA or 0–10 V), and two
thermistor
Outputs: Two NMOS/sinking discrete
(1)
Switch Power: One
p/n: 155748 Rev. Q
