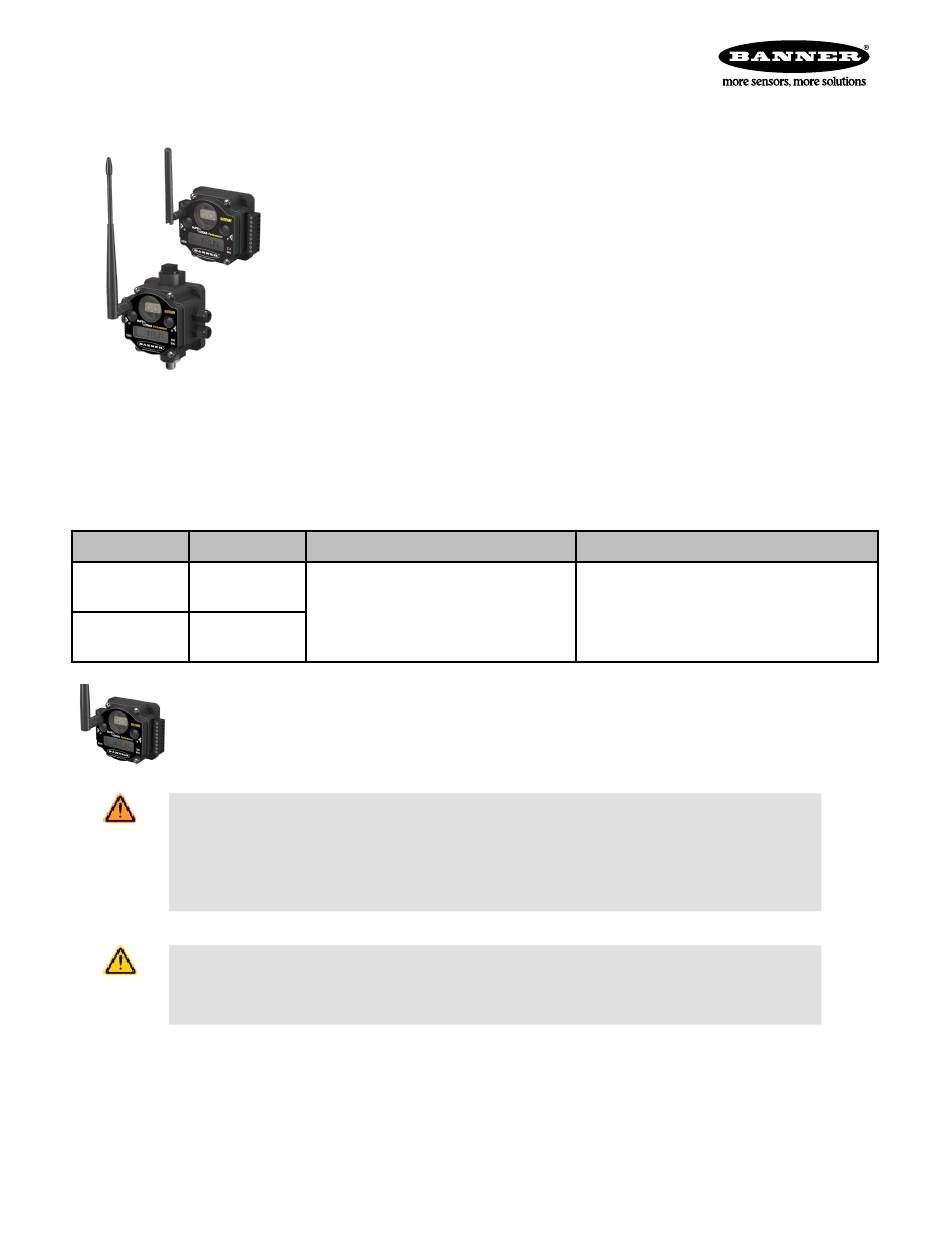

SureCross Performance FlexPower Gateway
Configurable FlexPower Gateway with sinking discrete I/O
For additional information, updated
documentation, and accessories, re-
fer to Banner Engineering's website,
www.bannerengineering.com/sure-
cross.
Models
Frequency
900 MHz ISM
DX80G9M2S-P7
Band
2.4 GHz ISM
DX80G2M2S-P7
Band
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to serious
injury or death. This device does not include the self-checking redundant circuitry necessary to allow its
use in personnel safety applications. A sensor failure or malfunction can cause either an energized or de-
energized sensor output condition.
CAUTION: Never Operate 1 Watt Radios Without Antennas
To avoid damaging the radio circuitry, never power up SureCross Performance or SureCross MultiHop (1
Watt) radios without an antenna.
P/N 155285_web
Rev. E
The SureCross® wireless system is a radio frequency network with integrated I/O that can oper-
ate in most environments and eliminate the need for wiring runs. Wireless networks are formed
around a Gateway, which acts as the wireless network master device, and one or more Nodes.
• Wireless industrial I/O device with up to 12 sinking discrete inputs or outputs. Default config-
uration is set to 6 inputs and 6 outputs (without bit-packing)
• Selectable transmit power levels of 250 mW or 1 Watt for 900 MHz models and 65 mW for
2.4 GHz models
• Power options allow for +10 to 30V dc or solar for low power applications; this model is not
recommended for DX81 or DX81P6 battery-powered operations
• DIP switches for user configuration
• Modbus serial interface
• Site Survey analyzes the network's signal strength and reliability and displays the results on
the Gateway's LCD
• Frequency Hopping Spread Spectrum (FHSS) technology and Time Division Multiple Access
(TDMA) control architecture ensure reliable data delivery within the unlicensed Industrial,
Scientific, and Medical (ISM) band
• Transceivers provide bidirectional communication between the Gateway and Node, including
fully acknowledged data transmission
• Lost RF links are detected and relevant outputs set to user-defined conditions
Power
+10 to 30V dc or solar power (this model is
not recommended for DX81 or DX81P6 bat-
tery-powered operation)
DX80...C (IP20; NEMA 1) models are also available. To order this model with an IP20 housing, add a C
to the end of the model number: DX80G9M2S-P7C.
I/O
Discrete I/O: Up to 12 sinking inputs or up to 12
NMOS sinking outputs (for a total of 12 I/O)
(Default configuration is 6 IN and 6 OUT, without
bit-packing)
9/17/2013
Advertisement
Table of Contents
Related Manuals for Banner SureCross Performance FlexPower DX80G9M2S-P7
Summary of Contents for Banner SureCross Performance FlexPower DX80G9M2S-P7
- Page 1 (TDMA) control architecture ensure reliable data delivery within the unlicensed Industrial, documentation, and accessories, re- Scientific, and Medical (ISM) band fer to Banner Engineering's website, • Transceivers provide bidirectional communication between the Gateway and Node, including www.bannerengineering.com/sure- fully acknowledged data transmission cross.
-
Page 2: The Surecross® Performance Wireless Network
The User Configuration Tool (UCT) offers an easy way to link I/O points in your wire- less network, view I/O register values graphically, and set system communication pa- rameters when a host system is not part of the wireless network. Download the most recent revisions of the UCT software from Banner Engineering's website: http:// www.bannerengineering.com/wireless. -
Page 3: Configuring The Dip Switches
For additional information, including installation and setup, weatherproofing, device menu maps, troubleshooting, and a list of accesso- ries, refer to one of the following product manuals. • SureCross Quick Start Guide: Banner part number 128185 • SureCross Wireless I/O Network Manual: 132607 •... - Page 4 • Non-Performance radios must be set to use Extended Address Mode (DIP switch 1 ON) For more detailed instructions about setting up your wireless network, refer to the Quick Start Guide, Banner document number 128185. For more information about using Performance and non-Performance radios within the same network, refer the technical note titled Mixing Performance Radios and 150 mW Radios in the Same Networklisted on the FAQ/Knowledgebase section of Banner's Wireless Sensor Networks website.
-
Page 5: Led Behavior For The Gateways
SureCross Performance FlexPower Gateway Wire No. Wire Color Brown 10 to 30V dc White RS485 / D1 / B / + Blue dc common (GND) Black RS485 / D0 / A / – Gray 3.6 to 5.5V dc DX80...C Wiring Wiring power to the DX80...C models varies depending the power requirements of the model. -
Page 6: Modbus Register Table
SureCross Performance FlexPower Gateway LED 1 LED 2 Gateway Status Modbus Communication Active (flashing yellow) Modbus Communication Error (flashing red) For Gateway and Ethernet Bridge systems, active Modbus communication refers to the communication between the Gateway and the Ethernet Bridge. For GatewayPro systems, the Modbus communication LEDs refer to the communication internal to the GatewayPro. For Gateway only systems, the Modbus communication LEDs refer to the communication between the Gateway and its host system (if appli- cable). - Page 7 SureCross Performance FlexPower Gateway Input Param- Bit 15 eter Parameter Data Define outputs the same way by adjusting the bit field stored in I/O 9's threshold parameter [15:0]. Verify the bit pattern for outputs does not overlap the input pattern. In the example below, I/O points 6-12 are set as outputs. Input Param- Bit 15 eter...
-
Page 8: Specifications
SureCross Performance FlexPower Gateway Specifications Radio General Radio Range Power* 900 MHz (1 Watt): Up to 9.6 kilometers (6 miles) +10–30V dc or +3.6–5.5V dc low power option (Out- side the USA: +12–24V dc, ±10% or +3.6–5.5V dc low 2.4 GHz: Up to 3.2 kilometers (2 miles) power option) Radio Transmit Power 900 MHz Consumption: Maximum current draw is <100... - Page 9 SureCross Performance FlexPower Gateway Inputs Outputs Discrete Inputs Discrete Outputs Rating: 3 mA max current at 30V dc Update Rate: Up to 62.5 milliseconds Sample Rate: Up to 62.5 milliseconds Output State Following Timeout: OFF Report Rate: On change of state ON Condition (NMOS): Less than 0.7V ON Condition (NPN): Less than 0.7V OFF Condition (NMOS): Open...
-
Page 10: Banner Engineering Corp Limited Warranty
ER ARISING IN CONTRACT OR WARRANTY, STATUTE, TORT, STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE. Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any obligations or liabilities relating to any product previously manufactured by Banner Engineering Corp.
