unum DT/DT+AM
Dual-Tech Motion Detector/
Anti-Masking Motion Detector
Installation guide
INTRODUCTION
The unum Motion Detectors are professional state-of-the-art motion sensors engineered with the world's
best components and materials. Every aspect of these sensors provides the most reliable motion sensing, yet
with freedom from false alarms. Additionally, the unum series introduces to the market the only sensors
with a trendy invisible lens completely integrated into the front cover, thanks to E.L.T.™ (Embedded Lens
Technology). As a benefit of decades of experience in designing professional lenses, E.L.T.™ allows the
formation of lens and front cover in a gracefully unified design.

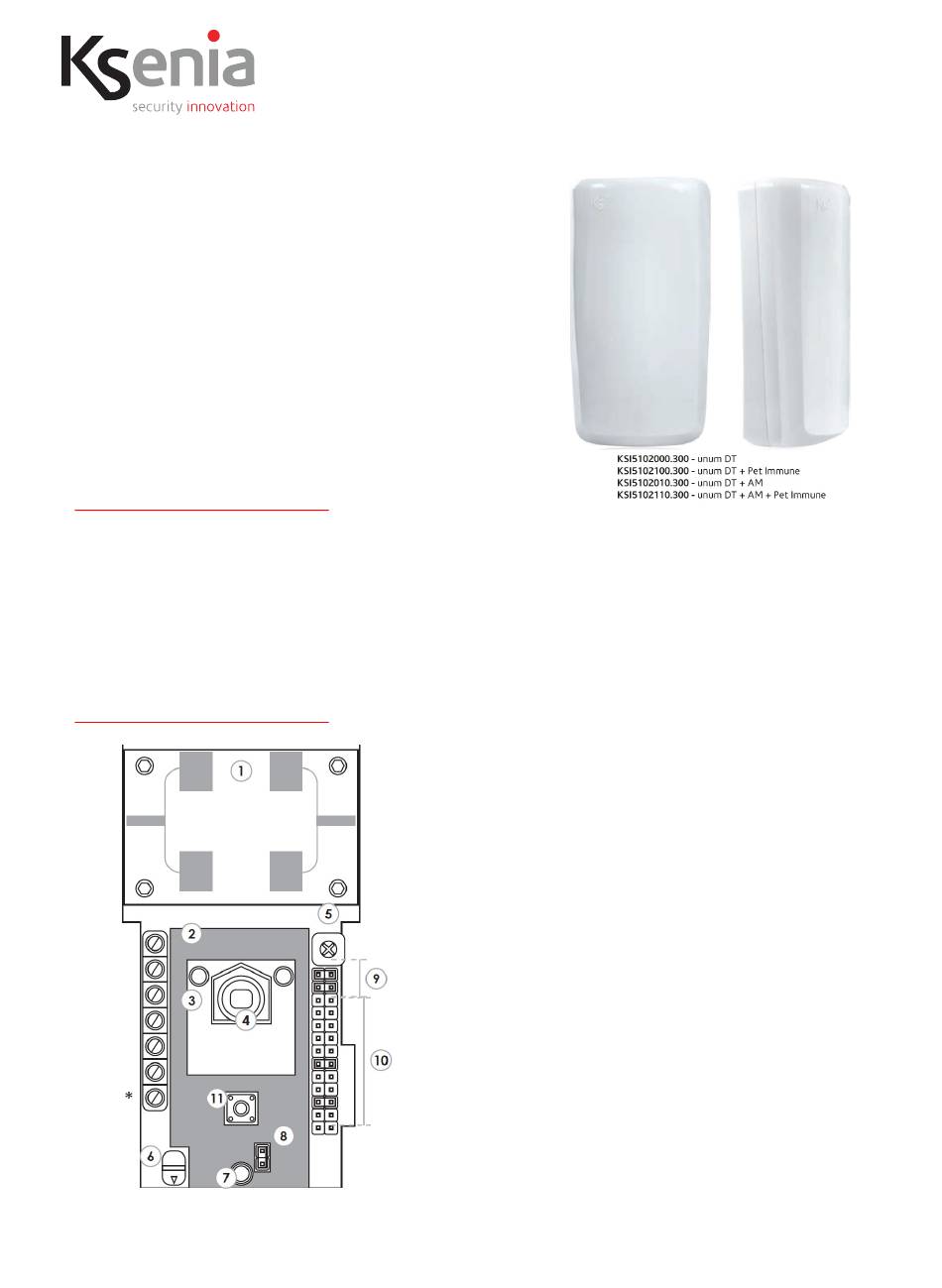

PRODUCT DESCRIPTION
code R28008.100en
ed.07/2020
LEGEND
1. Microwave Module
2. Connection clamps
3. Walk Test LED
4. PIR
5. Trimmer Microwave
Rotate clockwise to increase range
of microwave detection
6. PCBA placing indicator
7. Signaling LED
8. LED ON / OFF
9. Programming Jumpers
10. End-of-line protection(*)
(remove the jumpers in case you don't
want use the integrated end-of-line
resistances)
11. Opening Tamper
(*) Only present in unum AntiMasking
versions
www.kseniasecurity.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ksenia unum DT
Summary of Contents for Ksenia unum DT
- Page 1 DT/DT+AM Dual-Tech Motion Detector/ Anti-Masking Motion Detector Installation guide INTRODUCTION The unum Motion Detectors are professional state-of-the-art motion sensors engineered with the world’s best components and materials. Every aspect of these sensors provides the most reliable motion sensing, yet with freedom from false alarms.
-
Page 2: Wiring Description
WIRING DESCRIPTION Connection with lares 4.0 control panel (triple balancing) Connection with ares 4.0 control panel (2 parallel EOL resistors) Mask(*) Only on Antimasking versions COVERAGE DIAGRAM Optical view pattern top view in meters code R28008.100en www.kseniasecurity.com ed.07/2020... -
Page 3: Installation
Optical view pattern side view in meters INSTALLATION SENSOR DISASSEMBLY • In slot at sensor bottom, use screwdriver to push inward (1). • Remove cover (2). • Push outward on PC board latch at sensor base right side. Using PC board as handle, gently lift PC board right side and remove. -
Page 4: Base Hole Preparation
BASE HOLE PREPARATION Identify necessary holes on diagram: 1. For wall mounting or 45 degree wall mounting, knock out hole covers. 2. For bracket mounting, use drill to open a 3 mm hole in the center of the square recess at the rear of the base. -
Page 5: Programming Jumpers
(*) Using this setting you can remotely manage the switching on of the LEDs via the clamp ‘LED EN’. By applying a 12V voltage (system armed) the LEDs will signal an alarm detection. RED ALARM LED INDICATOR FUNCTION unum DT Sensor State LED display... -
Page 6: Sensor Initialization
SENSOR INITIALIZATION Following power-on, unum are fully operational after a one-minute warm-up. During warm-up, the red Alarm LED is ON. Default Operating Mode: By enabling the Alarm LED (JP1 ON), the red LED will turn on at the occurring of an alarm. -
Page 7: Technical Data
• Pet immunity: up to 10 Kg TECHNICAL DATA: KSI5102000.300 - KSI5102010.300 - unum DT + AM & KSI5102110.300 - unum DT + AM + Pet Immune (in addition to what stated for unum PIR) • Microwave Operating Freq.: around 10GHz (see unit label) •... - Page 8 4.0 models wls 96 40 wls 140 wls 644 wls unum DT & DT-AM sensors are considered like ZONES, so that their limit is just like the maximum number of zones that the lares 4.0 control panels can manage Technical data, appearance, functionality and other product characteristics may change without notice.
